Epson EB-W06 WXGA 3LCD Projector

The Epson EB-W06 projector delivers WXGA resolution at 1280 by 800 pixels through a 3LCD optical engine that outputs equal white and color light for balanced classroom and conference imagery. Rated brightness reaches 3700 lumens with a contrast ratio of 16000:1, supporting readable charts and video in rooms with moderate ambient light. The throw ratio of 1.48 to 1.77:1 pairs with a 1.2x manual zoom lens, enabling flexible placement on a ceiling mount or portable cart without excessive keystone correction. Lamp module UHE technology extends replacement intervals to 12000 hours when Eco mode runs during routine slide presentations that do not require maximum white output.

Imaging and connectivity

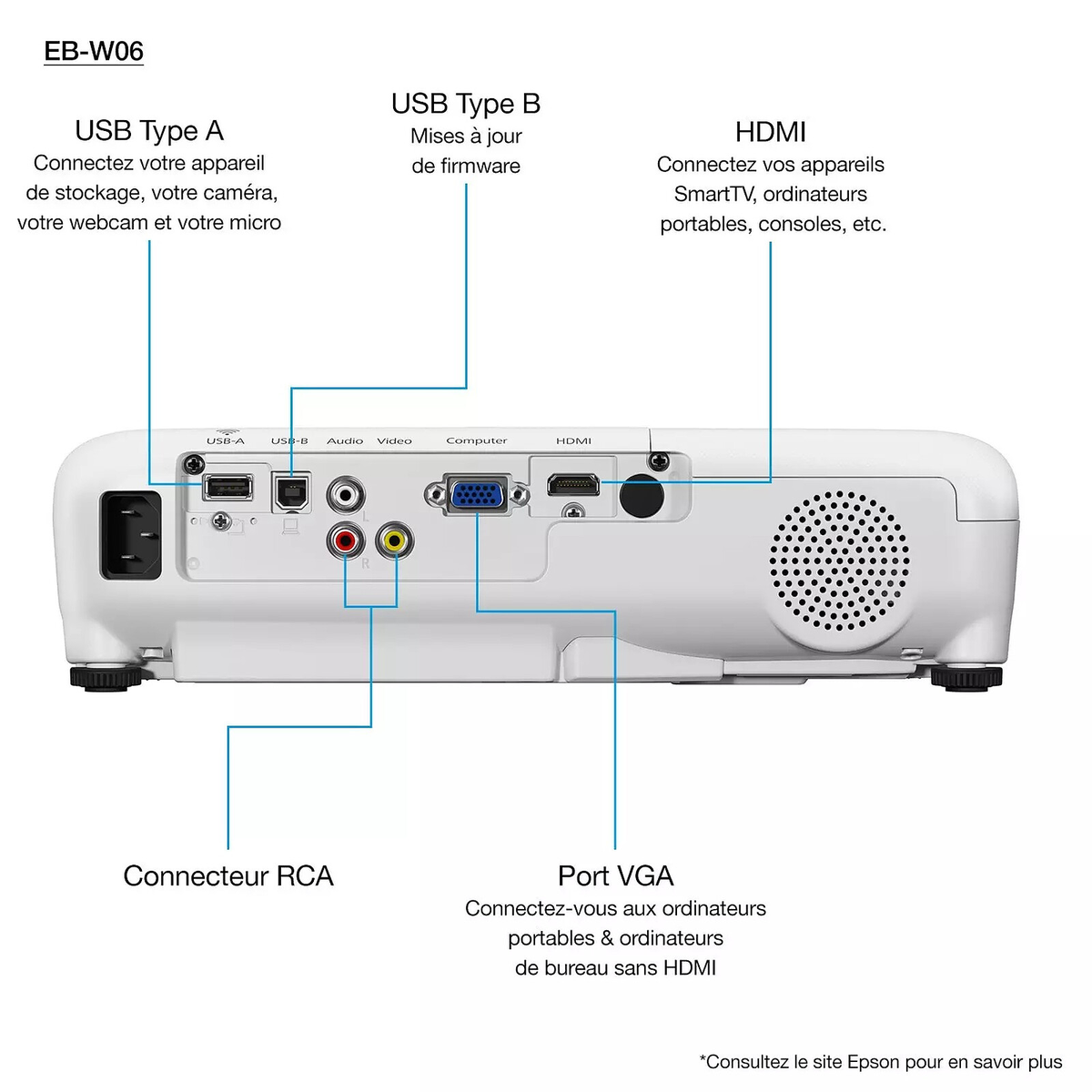

Three LCD panels with micro-lens array technology reduce the screen-door effect while maintaining uniform field illumination across the full WXGA raster. HDMI input accepts 1080p source material with automatic downscaling to native resolution without visible ringing on thin serif fonts common in legal documents. A second HDMI port supports quick switching between a laptop and document camera during hybrid lectures where instructors alternate between prepared decks and live demonstrations. VGA input remains available for legacy AV equipment still wired in municipal council chambers and older university halls. USB Type-A supplies 500 mA for powering streaming sticks when the unit operates in standalone mode without a separate power adapter for the source device.

Installation and maintenance

Horizontal and vertical keystone correction adjusts geometry up to 30 degrees without resolution loss when digital correction engages on table-mounted setups. Quick Corner fine-tunes individual corners for wall-mounted configurations where the screen plane is not square to the lens axis because of uneven plaster or tilted ceiling channels. Filter-free design reduces scheduled maintenance intervals and eliminates the forgotten cleaning step that causes thermal shutdown on dust-heavy campuses. Lamp replacement occurs through a top-access door, minimizing downtime during term breaks when AV teams service dozens of rooms in compressed windows. Wireless module slot accepts optional LAN adapter for network display when IT policy requires cable-free presentation from instructor laptops enrolled in domain authentication.

Operating environment and control

Operating temperature range spans 5 to 35 degrees Celsius at altitudes up to 2286 meters without derating lumens output. Fan noise measures 37 dB in Normal mode and 28 dB in Eco mode, suitable for lecture halls where audience proximity matters during recorded sessions distributed through learning management systems. Power consumption peaks at 262 W in Normal mode and drops to 198 W in Eco mode when instructors display static slides rather than full-motion video. Standby draw remains below 0.5 W when quick-start circuitry is disabled per campus energy guidelines. RS-232C and wired LAN ports integrate with centralized control systems that power equipment on before scheduled classes and verify lamp hour counters during remote inventory audits.

Color management and presets

Dynamic mode maximizes brightness for rooms with uncontrolled daylight through east-facing glazing. Presentation mode balances luminance and saturation for mixed content containing both photographic backgrounds and flat-color corporate templates. Cinema mode lowers white output to deepen black levels when departments preview video content during curriculum committee reviews. sRGB mode clamps gamut for design courses where students compare on-screen color to printed proof sheets under standardized viewing booths. User memory stores custom gamma adjustments per input port so recurring guest presenters retain calibrated profiles without technician intervention at each visit.
