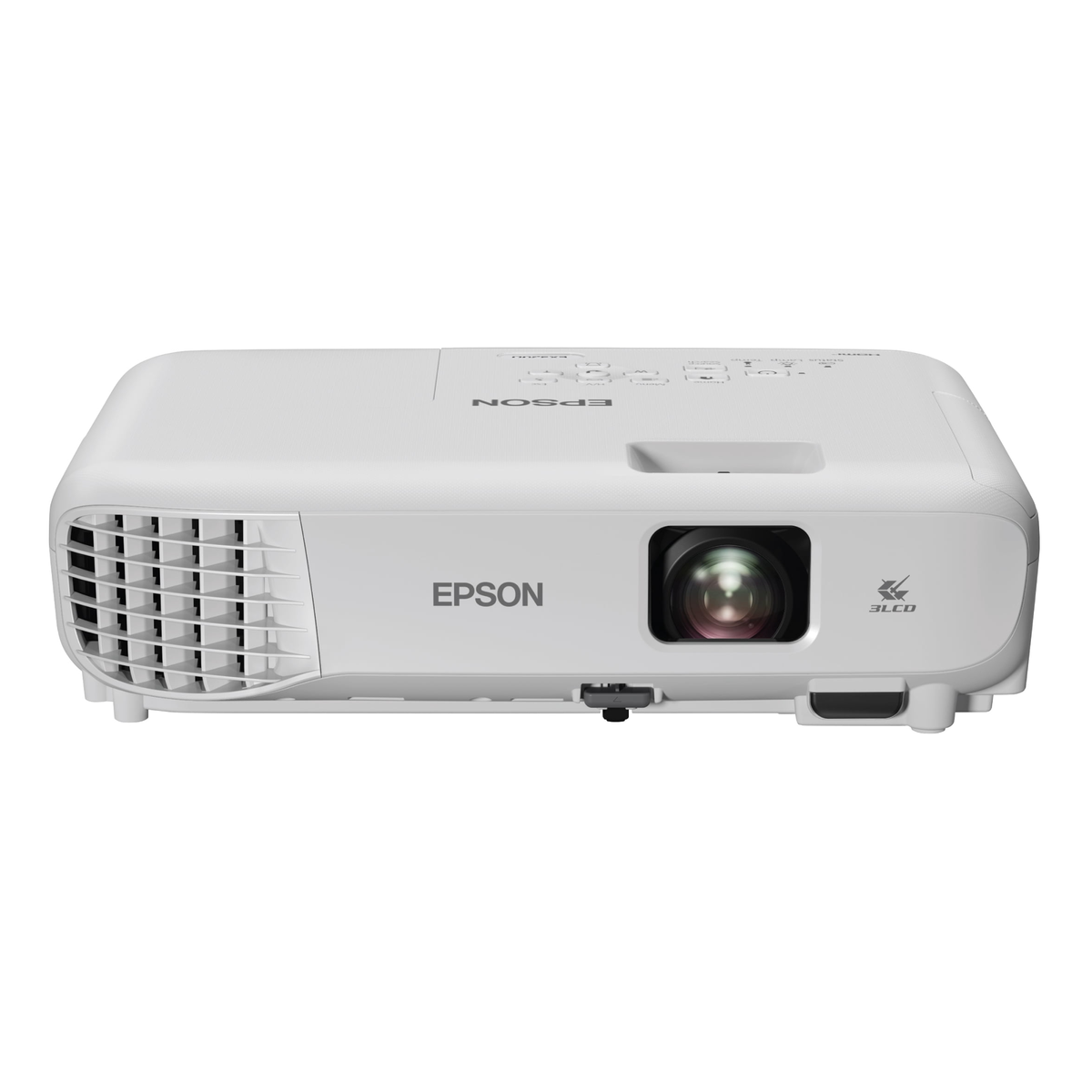

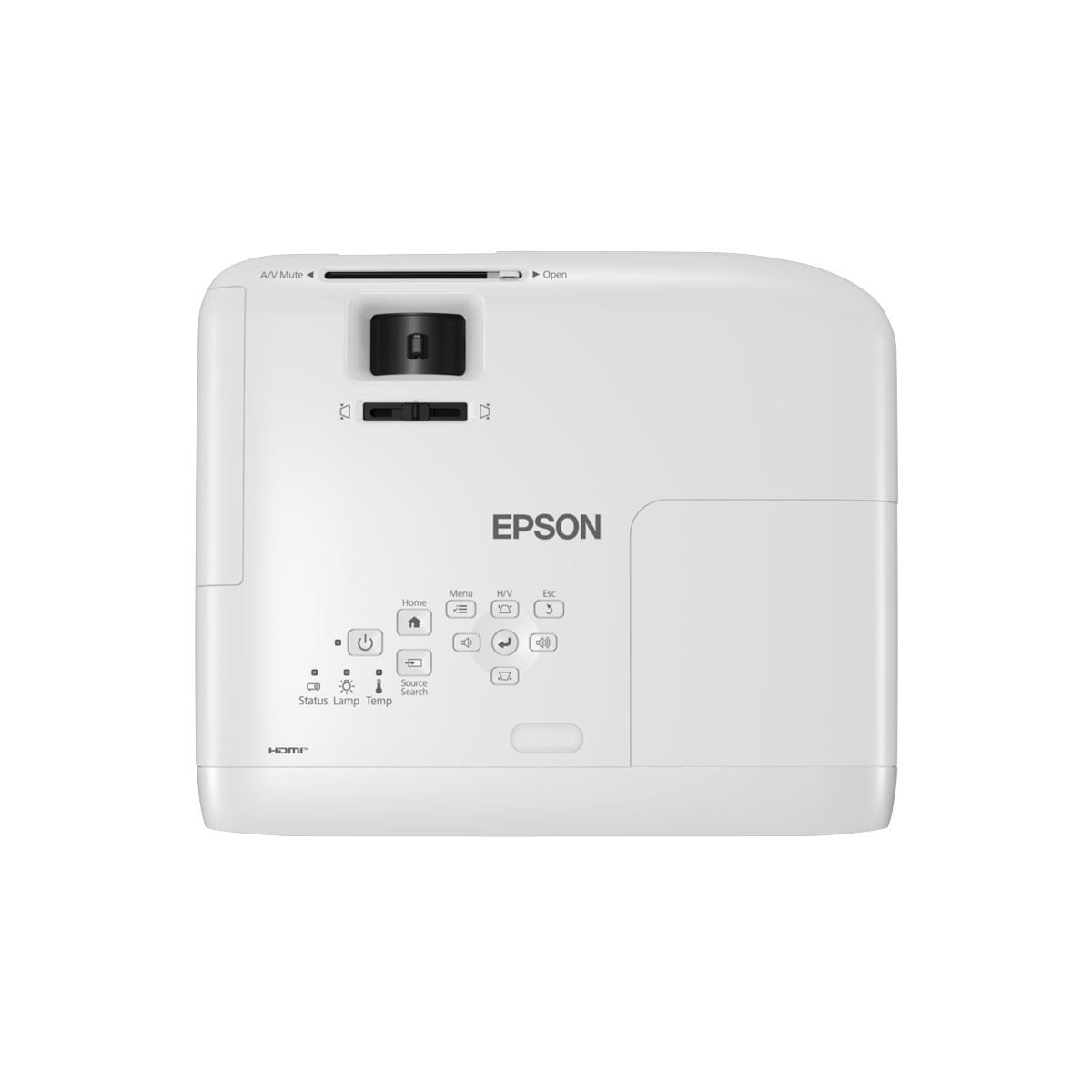

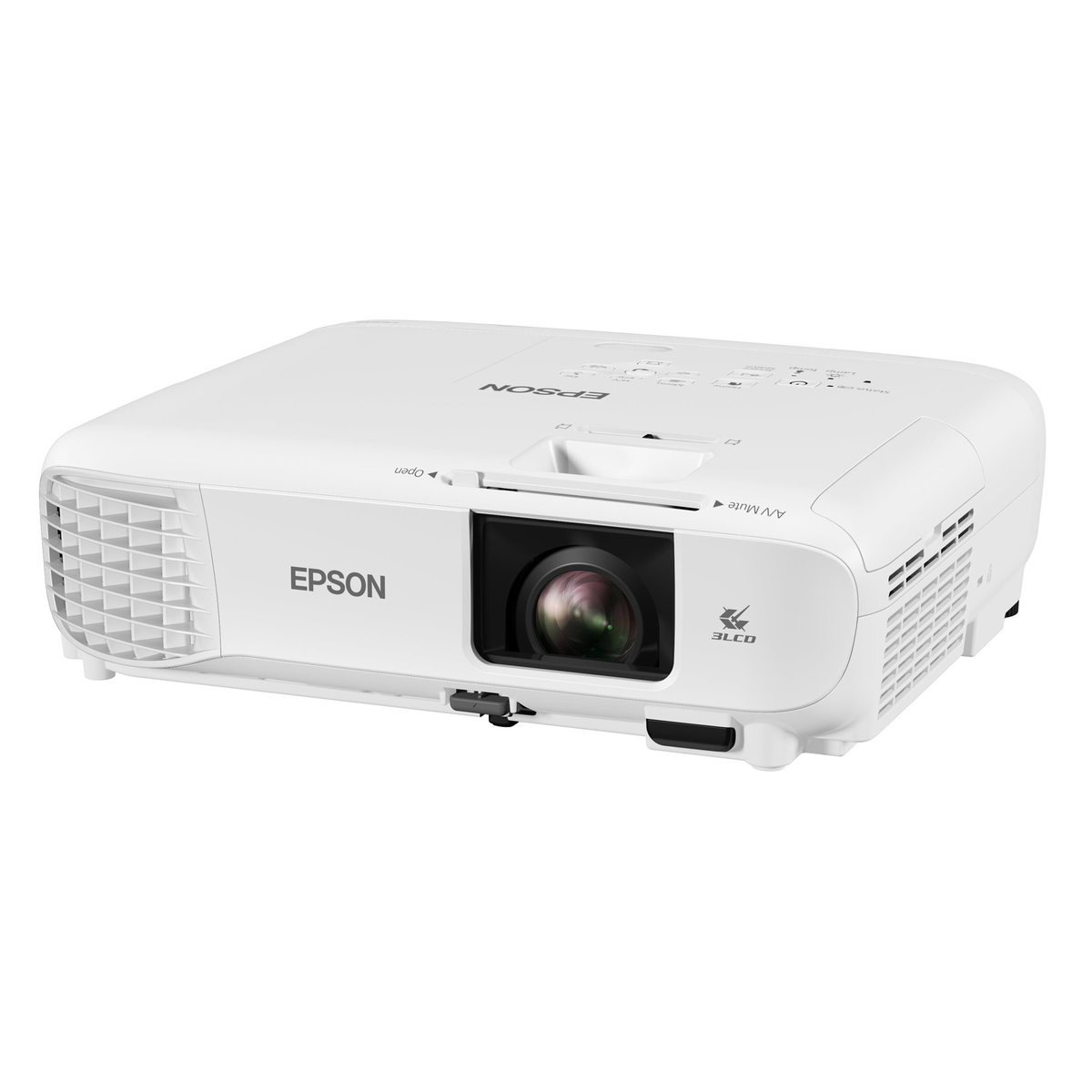

Epson EB-E24 XGA 3LCD Projector

The Epson EB-E24 projector targets budget-conscious installations that still require reliable XGA output at 1024 by 768 pixels from a compact chassis weighing under 2.6 kg. The 3LCD engine produces 3600 lumens with a 15000:1 contrast ratio, adequate for training rooms where participants view spreadsheets and slide decks at seating distances of three to six meters. Fixed focal length optics simplify ceiling alignment because zoom drift cannot occur after initial commissioning by AV contractors who document throw distance during handover inspections. White and color light output remain matched so yellow highlights in financial models do not appear washed out compared to blue column headers on the same worksheet projection.

Signal handling and inputs

Single HDMI input accepts digital sources up to 1080p and applies high-quality scaling to native XGA with minimal moire on fine grid lines in CAD exports displayed at one-to-one pixel mapping where possible. Composite video input supports legacy DVD players and analog document cameras still deployed in municipal facilities that have not completed digital AV refresh cycles. RS-232C port enables centralized control from room automation panels that issue power-on macros before scheduled sessions start automatically at eight in the morning. USB Type-B connection allows direct display from supported laptops without additional video drivers on select operating systems when IT restricts admin installs on loaner machines used by external trainers.

Geometry correction and color modes

Automatic vertical keystone correction compensates for upward or downward tilt when the unit sits on a table rather than a mount attached to structural ceiling steel. Manual horizontal keystone remains available for off-axis placement near room corners where center mounting is blocked by fire suppression piping. Quick Corner adjusts each corner independently when projecting onto fixed whiteboards that are not rectangular because of building settlement over decades. Color modes include Dynamic, Presentation, and Cinema presets tuned for different content types without manual gamma adjustment during rapid agenda transitions between departments sharing the same room hourly.

Reliability and service factors

Dust-resistant optical path extends service intervals in environments where HVAC filtration is limited to MERV eight ratings common in older commercial towers. Lamp access panel opens from the top without removing the projector from a ceiling bracket when ceiling height permits technician reach from a six-foot ladder. Internal temperature sensors throttle lamp power before thermal shutdown occurs during extended back-to-back sessions when summer cooling fails intermittently. ENERGY STAR qualification reflects low standby consumption suitable for facilities pursuing green building certification credits tied to plug-load management policies enforced by sustainability offices.

Audio and placement guidance

Built-in mono speaker rated at five watts provides speech intelligibility for rooms under forty seats when supplemental sound reinforcement is not budgeted. Audio pass-through from HDMI carries embedded tracks from training videos without separate RCA wiring to legacy amplifiers. Recommended screen diagonal ranges from sixty to one hundred inches depending on rear seating distance and whether content is text-heavy or video-centric. Ceiling mount kits using standard M4 thread patterns align with third-party universal plates stocked by regional integrators who maintain spare hardware for emergency swap-outs between identical fleet units across satellite offices.
