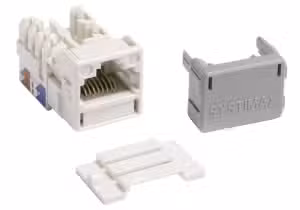

Easenet MGS400BH-262 Cat 6 Keystone Jack Module, RJ45 110 IDC, White

Unshielded Modular Outlet for Class E Channels

The Easenet MGS400BH-262 terminates one Cat 6 UTP outlet on a 110 IDC block. It carries T568A and T568B colour labels on the same body. The jack seats in M-series faceplates, surface boxes, consolidation point boxes, and modular panels.

Eight phosphor bronze contacts sit under 50-micron gold over nickel. Contact resistance holds at 100 mΩ maximum with under 20 mΩ variation across the set. Rated bandwidth reaches 250 MHz for ANSI/TIA-568.2-D Category 6 and ISO/IEC 11801 Class E channels.

The body accepts 22 AWG to 24 AWG solid or stranded conductors. PoE endurance covers IEEE 802.3bt Type 4 at 90 W across 3000 mating cycles. Plug retention meets 133 N minimum, and the UL 94 V-0 housing suits plenum-adjacent risers.

Key Features

• Straddling Pair Contact Geometry
  The contact layout lowers near-end and power-sum crosstalk across a complete GigaSPEED channel.

• Dual Wiring Labels

  • T568A and T568B colour codes printed on the module body
  • Universal wiring design removes the need for two SKUs
  • Field re-termination stays simple during moves and changes

• PoE Type 4 Endurance
  The contact set survives 3000 mating cycles while carrying 90 W under IEEE 802.3bt Type 4.

• Faceplate Mounting Options

  • Snaps into M-series faceplates and surface-mount boxes
  • Fits consolidation point boxes and modular panels
  • Seats straight at 90 degrees or angled at 45 degrees

• Gold-Plated Contact Set
  50-micron gold over nickel plating limits oxidation on the eight contact positions.

• High-Impact Thermoplastic Housing
  The flame-retardant body carries a UL 94 V-0 rating for indoor cabling installations.

Specifications

What’s in the Box

• 1 x Cat 6 RJ45 keystone module, electric white

Why Choose This Keystone Outlet

• The 110 punch-down block accepts 22 AWG to 24 AWG copper without a second termination tool.

• Contact geometry keeps near-end and power-sum crosstalk inside Class E limits on certified links.

• Angled and straight seating options let installers match conduit entry in tight back boxes.

• UL 94 V-0 housing and 500 MΩ insulation resistance suit plenum-adjacent and high-humidity risers.

• PoE Type 4 endurance supports powered cameras, access points, and VoIP handsets on the same outlet.
