Datalogic QuickScan QD2430 2D Area Imager Barcode Scanner – Black, KBW/USB/RS-232, 4.5-14V

Omnidirectional 2D Imager for Point-of-Sale

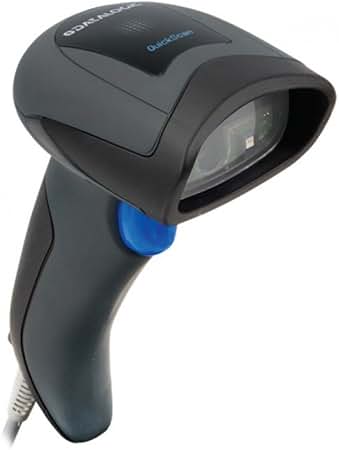

The Datalogic QuickScan QD2430 is a corded handheld area-imaging scanner built for retail POS and light warehouse duty. It reads 1D linear labels, stacked codes and 2D matrix symbols from paper, loyalty cards and mobile screens.

A 752 x 480 wide-VGA sensor with a red LED source captures a full field in one pass. Datalogic rates the scan rate at 270 scans per second, which supports high-throughput lanes. Minimum symbol width is 4 mil for linear codes, and motion tolerance handles a moving item at the counter.

The multi-interface board supports keyboard wedge, USB and RS-232 through a single hardware platform. Input voltage spans 4.5 V to 14 V DC, so the unit runs from a host-powered USB port or an external supply. Typical current draw is 140 mA in operation and 50 mA in standby. The SCAN button and Datalogic green-spot feedback confirm a good read without the operator watching the screen.

Housing protection is IP42, and the chassis survives a 1.5 m drop onto concrete. The sealed enclosure weighs 145 g and measures 163 mm long, 91 mm deep and 41 mm wide. Operating range reaches 35 cm on suitable codes. The dark-red illumination and twin blue aiming triangles reduce eye strain over a full shift.

Order QD2430-BK as the scanner body only. Interface cable and stand are sold separately. Confirm the correct cable for the host interface before deployment, since the unit ships without one.

Key Features

• 2D Area Imager Sensor
  A 752 x 480 wide-VGA sensor decodes QR, Data Matrix, Aztec, MaxiCode and Micro QR in a single pass.

• Multi-Interface Board

  • Keyboard wedge output for legacy POS terminals.
  • USB HID and USB COM modes for modern tills.
  • RS-232 serial output for industrial controllers.
  • 4.5-14 V DC input accepts host or external power.

• 270 Scans Per Second
  The sensor captures at 270 scans per second for high-volume checkout lanes.

• IP42 Sealed Enclosure
  Dust and splash ingress protection suits food retail and warehouse counters.

• 1.5 m Drop Rating
  The chassis survives repeated drops onto concrete from counter height.

• Green Spot Feedback
  A patented projected dot confirms a successful read under bright light.

• Lightweight Handheld Body
  The 145 g housing measures 41 x 91 x 163 mm for prolonged single-hand use.

Specifications

What’s in the Box

• QD2430-BK scanner body

Why Choose This POS Imager

• One hardware platform covers keyboard wedge, USB and serial hosts.

• The 270-scan rate keeps queue times short at busy counters.

• Screen reading handles digital loyalty cards and mobile coupons.

• IP42 sealing and a 1.5 m drop rating reduce replacement cycles.

• The 145 g body limits operator fatigue across a full shift.

• Red illumination and blue aiming LEDs reduce eye strain.
