Dahua XVR5108HS 8-Channel 5MP Penta-brid 1U WizSense DVR

Compact Hybrid Recording Platform for Mixed Camera Fleets

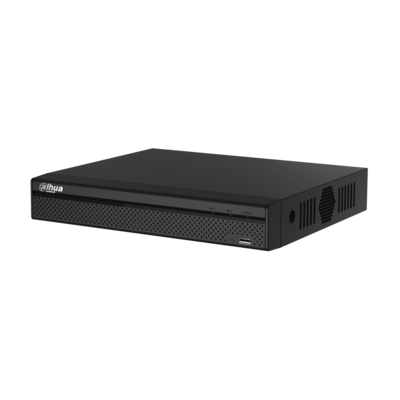

The Dahua XVR5108HS is an eight-channel Penta-brid recorder that accepts HDCVI, AHD, TVI, CVBS and IP video inputs. Eight BNC ports auto-detect the incoming analogue format, so technicians can connect an existing coaxial fleet without reconfiguring each camera. The compact 1U chassis fits a single SATA drive and installs on a desktop or shelf.

The WizSense processor runs embedded Linux and handles analytics on the recorder itself. AcuPick target retrieval covers four analogue channels. Perimeter protection covers eight channels with ten IVS rules per channel, and face recognition runs on two channels against ten databases holding 10,000 images each. SMD Plus filters human and vehicle triggers across eight channels.

Encoding supports AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264 dual-stream at 32 kbps to 6144 kbps. Four IP channels are active by default, and the eight analogue inputs convert to IP for a twelve-channel ceiling at 6 MP per camera. Incoming, recording and outgoing bandwidth each reach 64 Mbps.

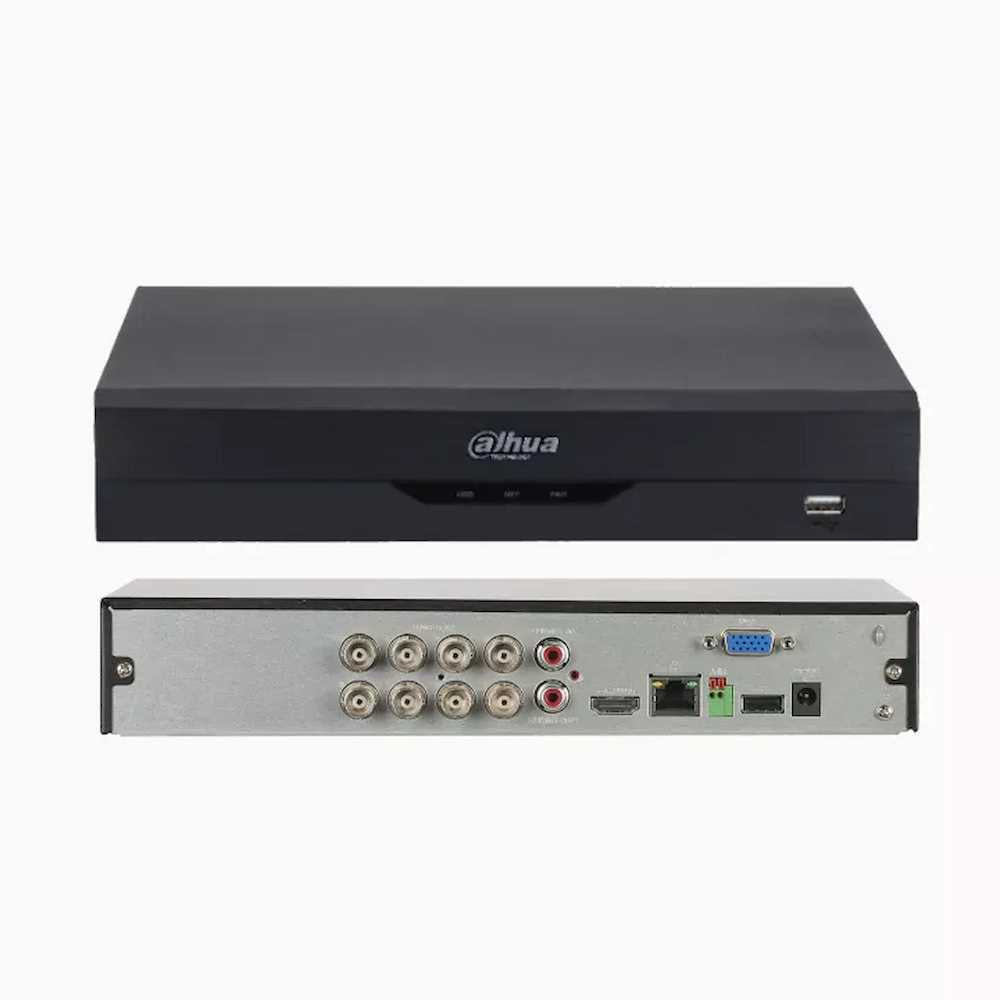

One HDMI port outputs 2560 × 1440 and one VGA port outputs 1920 × 1080 for local monitoring. A single 10/100 RJ-45 port carries network traffic. The recorder draws under 7 W without a drive and accepts 12 V DC at 2 A. Operating range spans −10 °C to +55 °C at 10% to 90% relative humidity, non-condensing.

ONVIF 24.12 profiles T, S and G cover third-party IP cameras from Panasonic, Sony, Hanwha, Axis and Arecont. The unit also accepts Wi-Fi cameras, which suits retrofit sites where pulling new cable is impractical. A single RS-485 port drives PTZ control, and two USB 2.0 ports handle mouse input and USB backup.

Key Features

• Eight Auto-Detect BNC Inputs
  Each port locks onto HDCVI, AHD, TVI or CVBS automatically, so mixed camera fleets need no manual format switching.

• WizSense Analytics Suite

  • AcuPick retrieval across four analogue channels.
  • Perimeter protection on eight channels with ten IVS rules each.
  • Face recognition on two channels with ten databases of 10,000 images.

• IP Extension to Twelve Channels
  Four IP channels are active by default, and the analogue inputs convert to IP for a 12-channel ceiling at 6 MP each.

• Smart H.265+ Dual-Stream Encoding
  AI Coding and Smart H.265+ reduce bitrate while preserving target detail across a 32 kbps to 6144 kbps range.

• Storage and Interface Set

  • One SATA port supporting a drive up to 16 TB.
  • One HDMI, one VGA, one 10/100 RJ-45 and one RS-485 port.
  • Two USB 2.0 ports, one front and one rear.

• Coaxial Two-Way Talk
  All eight BNC channels carry two-way audio over the same coaxial run as the video, alongside one RCA input and output.

Specifications

What’s in the Box

• 8-channel Penta-brid DVR unit

• 12 V DC, 2 A power adapter and power cord

• SATA drive mounting screws

• USB mouse

• Quick start guide

Why Choose This Recorder

• The 8-channel Penta-brid DVR keeps existing analogue cameras in service while adding IP channels on the same unit.

• The WizSense digital video recorder runs face detection, perimeter protection and SMD Plus without an external server.

• The 5MP hybrid DVR records analogue cameras at 5 MP and IP cameras at 6 MP on the same timeline.

• Smart H.265+ DVR encoding extends retention on a single 16 TB drive without extra network load.

• ONVIF 24.12 profiles T, S and G support third-party cameras from Panasonic, Sony, Hanwha, Axis and Arecont.

• The 1U 1HDD video recorder measures 47.6 mm high and suits shallow wall boxes and compact cabinets.

• AcuPick target retrieval shortens evidence searches by grouping similar subjects across analogue channels.
