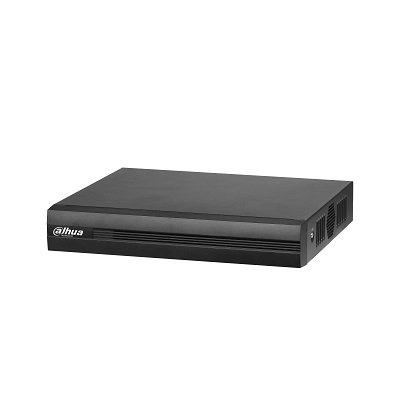

Dahua XVR1B16-I/T 16CH Penta-brid WizSense DVR 1U
Original price was: KSh 12,800.00.KSh 10,100.00Current price is: KSh 10,100.00. ex VAT
Dahua XVR1B16-I/T 16CH Penta-brid WizSense DVR 1U
| Model | XVR1B16-I/T |
| Analog inputs | 16 BNC (HDCVI/AHD/TVI/CVBS) |
| IP inputs | 18 channels (2 native + 16 convertible) |
| Bandwidth | 64 Mbps incoming/recording/outgoing |
| Recording | 1080p/720p at 25/30 fps |
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| Video outputs | 1 HDMI, 1 VGA |
| Audio | 1 RCA in, 1 RCA out, two-way over coax |
| Storage | 1 SATA, up to 16 TB |
| Network | 1 RJ45 10/100 Mbps |
| USB | 2 rear USB 2.0 |
| Power | 12 VDC, 2 A, below 10 W without HDD |
| Dimensions | 260.0 x 231.6 x 47.6 mm |
| Weight | 0.96 kg |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
16-Channel Hybrid Recording Platform
The Dahua XVR1B16-I/T is a 16-channel Penta-brid digital video recorder that accepts HDCVI, AHD, TVI, CVBS and IP camera inputs. Sixteen BNC ports auto-detect the analog format, and two native IP channels expand to eighteen IP cameras at up to 6 MP each.
The industrial-grade processor runs embedded Linux and supports AI Coding, Smart H.265+, H.265, Smart H.264+ and H.264 compression. Dual-stream encoding delivers a 1080N/720p main stream and a CIF substream for remote viewing. Incoming, recording and outgoing bandwidth each reach 64 Mbps.
WizSense analytics apply SMD Plus across sixteen analog channels to filter human and vehicle targets. Two-way talk runs over coaxial cable on all sixteen analog inputs, which removes separate audio cabling. The 1U chassis measures 260.0 x 231.6 x 47.6 mm and weighs 0.96 kg. A single SATA bay accepts up to 16 TB.
Key Features
Penta-brid Input Flexibility
Sixteen BNC ports auto-detect HDCVI, AHD, TVI and CVBS signals without manual configuration.IP Channel Expansion
Two native IP inputs plus sixteen convertible analog channels support eighteen IP cameras at 6 MP.WizSense Analytics
- SMD Plus filters human and vehicle targets across sixteen analog channels.
- AI Coding reduces storage and bandwidth while preserving target detail.
Coaxial Two-Way Audio
All sixteen analog channels carry bidirectional audio over the same coaxial cable as video.Dual Video Outputs
HDMI and VGA ports deliver simultaneous 1920 x 1080, 1280 x 1024 and 1280 x 720 output.Compact 1U Housing
The 260 mm deep chassis fits shallow wall cabinets and small equipment shelves.
Specifications
| Feature | Specification |
|---|---|
| Model | XVR1B16-I/T |
| Analog inputs | 16 BNC (HDCVI/AHD/TVI/CVBS auto-detect) |
| IP inputs | 18 channels (2 native + 16 convertible) |
| Incoming bandwidth | 64 Mbps |
| Recording bandwidth | 64 Mbps |
| Outgoing bandwidth | 64 Mbps |
| Recording resolution | 1080p/720p at 25/30 fps (CVI/TVI/AHD) |
| Main stream encoding | Channel 1: 1080N/720p at 1-25/30 fps; others: 1-15 fps |
| Sub stream | CIF at 1-7 fps |
| Video compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| Audio compression | G.711a, G.711u, PCM |
| Video outputs | 1 HDMI, 1 VGA (up to 1920 x 1080) |
| Audio I/O | 1 RCA in, 1 RCA out, two-way over coax |
| Storage | 1 SATA port, up to 16 TB |
| Network interface | 1 RJ45 10/100 Mbps |
| USB ports | 2 rear USB 2.0 |
| Power supply | 12 VDC, 2 A |
| Power consumption | Below 10 W without HDD |
| Operating temperature | -10 C to +45 C |
| Dimensions | 260.0 x 231.6 x 47.6 mm |
| Net weight | 0.96 kg |
| ONVIF | 25.06 (Profile T, S, G, M) |
| Multi-screen display | 1/4/8/9/16 (25 with IP extension) |
| Third-party camera access | Panasonic, Sony, Hanwha, Axis, Arecont, ONVIF |
| Mobile access | iOS, Android |
| Browser support | Chrome, IE, Safari, Edge, Firefox |
| Operating system | Embedded Linux |
| SMD Plus | 16 channels, human and vehicle filtering |
| Black block masking | 1 channel |
| Video bit rate | 32 kbps-4096 kbps |
| Audio sampling | 8 kHz, 16 bit |
| Audio bit rate | 64 kbps |
What’s in the Box
XVR1B16-I/T recorder
Power adapter and cable
USB mouse
Quick start guide
Why Choose This WizSense Recorder
Sixteen auto-detect BNC ports accept legacy analog cameras while IP inputs accommodate new deployments.
Coaxial two-way audio eliminates separate microphone cabling on every analog channel.
Smart H.265+ and AI Coding extend retention on the single 16 TB SATA bay.
The 1U chassis fits shallow cabinets and keeps installation depth under 260 mm.
ONVIF Profile T, S, G and M support integrates third-party cameras and VMS platforms.
The Cooper-I series form factor suits distributed sites that need hybrid recording without a full rack.
Brian Odhiambo (verified owner) –
Handles 16 channels at 1080N without dropping frames. I ran it through the DMSS app on my phone and playback is smooth. The 1U form factor fits our rack neatly. Only gripe is that the front panel LEDs are a bit bright for a bedroom install. Otherwise a reliable recorder.
Cynthia Njeri (verified owner) –
Bought for our shop’s CCTV upgrade. The two-way talk feature is useful for the counter staff to speak to the back office through a camera. Setup was straightforward for our installer.
Samuel Kiptoo (verified owner) –
Set this up in a small warehouse in Mlolongo. Mixed HDCVI and IP cameras on one recorder, which saved us from buying a separate NVR. Two-way talk through the external mic works. The 1U case sits well in the rack. Recommended for anyone consolidating legacy analogue with new IP cameras.
Faith Wairimu (verified owner) –
Good unit for the channel count. WizSense human detection noticeably reduced the number of useless motion alerts on my phone.
Peter Mwaura (verified owner) –
Deployed this on a 12-camera site in Ruiru mixing two analogue domes with IP cameras on the same recorder. Penta-brid switching worked without fuss. WizSense cut false alarms from passing dogs on the perimeter channel. Solid 1U chassis, single HDD bay is enough for our retention.
