Dahua PFM3350 600VA 3-Pin UPS – 360W Line-Interactive 230V
Original price was: KSh 6,000.00.KSh 4,800.00Current price is: KSh 4,800.00. ex VAT

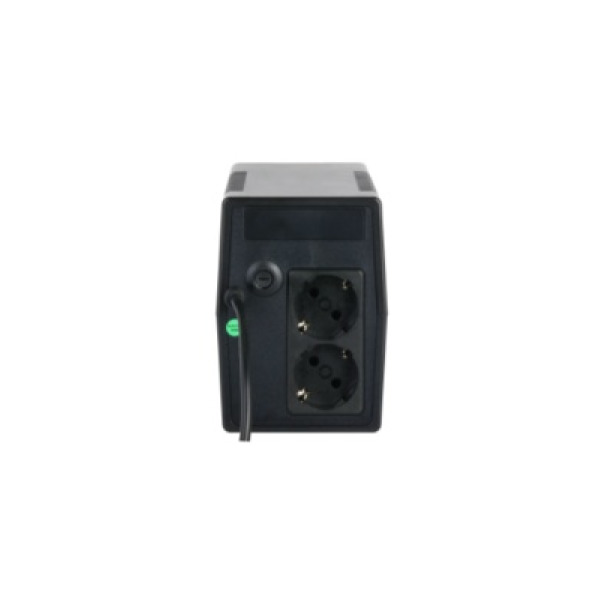

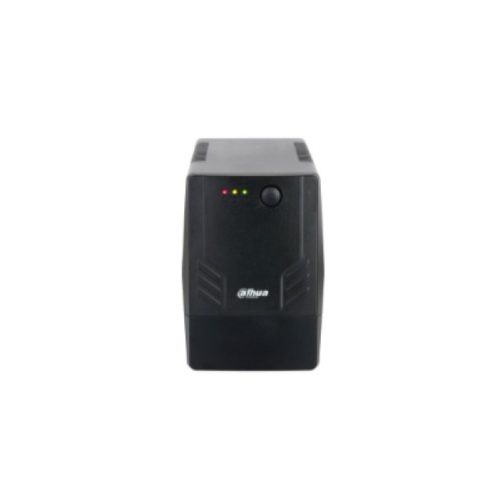

Dahua PFM3350 600VA 3-Pin UPS – 360W Line-Interactive 230V
| Capacity | 600 VA / 360 W |
| Topology | Line-interactive with AVR |
| Input | 170–280 VAC, 50/60 Hz, 2.9 A |
| Output | 230 VAC, 2.7 A |
| Transfer Time | 4–8 ms typical |
| Battery | 1 × 7 Ah lead-acid, 1 A charger |
| Outlets | 2 × three-pin sockets |
| Dimensions | 298.4 × 101.5 × 142.2 mm |
| Net Weight | 4.4 kg |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Line-Interactive Backup for Retail and Office Loads
The Dahua PFM3350 UPS is a line-interactive 600 VA / 360 W supply built for 230 V single-phase mains in Kenya and the wider East African market. It ships with a three-pin input plug and two output sockets for tills, routers, NVRs and desktop PCs.
The unit accepts 170–280 VAC at 50/60 Hz and draws 2.9 A, so it rides through the deep sags that precede many grid outages. Digital voltage stabilisation trims the output to 230 VAC at 2.7 A without switching to battery for every dip. Transfer to battery takes a typical 4–8 ms, short enough for switch-mode power supplies to hold their rails.
Output waveform is pure sine in AC mode and a simulated sine on battery. A single 7 Ah lead-acid block charges at 1 A to 90% in roughly four to six hours. Protections cover overload, short circuit, overcharge and over-discharge; a 110% AC overload holds for five minutes before shutdown, while 120% trips immediately. The chassis measures 298.4 × 101.5 × 142.2 mm and weighs 4.4 kg.
Key Features
Wide 170–280 VAC Input Window
The rectifier and AVR stage tolerate sustained undervoltage and overvoltage without draining the battery.Digital Voltage Stabilisation
Buck and boost taps correct the output to 230 VAC nominal before the inverter engages.4–8 ms Transfer to Battery
Typical switching time keeps ATX and PoE supplies within hold-up tolerance during a cut.Battery and Charging Profile
- 1 × 7 Ah sealed lead-acid block, factory fitted
- 1 A charging current with a 13.7 V per-block limit
- 4–6 hours to 90% state of charge
Tiered Overload Response
A 110% load rides for five minutes, while a 120% load shuts down at once and reports a fault.Two Output Sockets, 1.2 m Lead
The three-pin input plug feeds two protected outlets for downstream equipment.LED Status and Audible Alarms
Green for mains, flashing yellow for battery and solid red for fault; beeps escalate with low battery and overload.
Specifications
| Feature | Specification |
|---|---|
| Capacity | 600 VA / 360 W |
| Topology | Line-interactive with AVR |
| Input Voltage | 170–280 VAC |
| Input Current | 2.9 A |
| Rated Input Frequency | 50/60 Hz |
| Power Factor | ≥0.6 |
| Output Voltage | 230 VAC default |
| Output Current | 2.7 A |
| Transfer Time | 4–8 ms typical |
| AC Mode Waveform | Pure sine wave |
| Battery Mode Waveform | Simulated sine wave |
| Battery | 1 × 7 Ah lead-acid, built-in |
| Charging Current | 1 A |
| Charge Voltage Limit | 13.7 V per block |
| Recharge Time | 4–6 h to 90% |
| Output Sockets | 2 |
| Input Plug | 3-pin, 1.2 m cable |
| Protection | Overload, short circuit, overcharge, over-discharge |
| Dimensions | 298.4 × 101.5 × 142.2 mm |
| Net Weight | 4.4 kg |
| Casing | Plastic, black |
| Operating Temperature | 0 °C to +40 °C |
| Operating Humidity | 0–90%, non-condensing |
| Certification | CE LVD, CE EMC |
What’s in the Box
PFM3350-600 UPS unit
Factory-fitted 7 Ah sealed lead-acid battery
1.2 m three-pin input cable
Quick start guide
Why Choose Dahua PFM3350
The 170–280 VAC window suits feeders that sag well below nominal before a blackout.
Tiered overload thresholds separate a brief surge from a genuine wiring fault.
The 1 A charger restores a flat block in under six hours between shifts.
Passive cooling keeps the unit silent in a shop or open-plan office.
At 4.4 kg it mounts on a shelf or sits beside a counter without a bracket.
