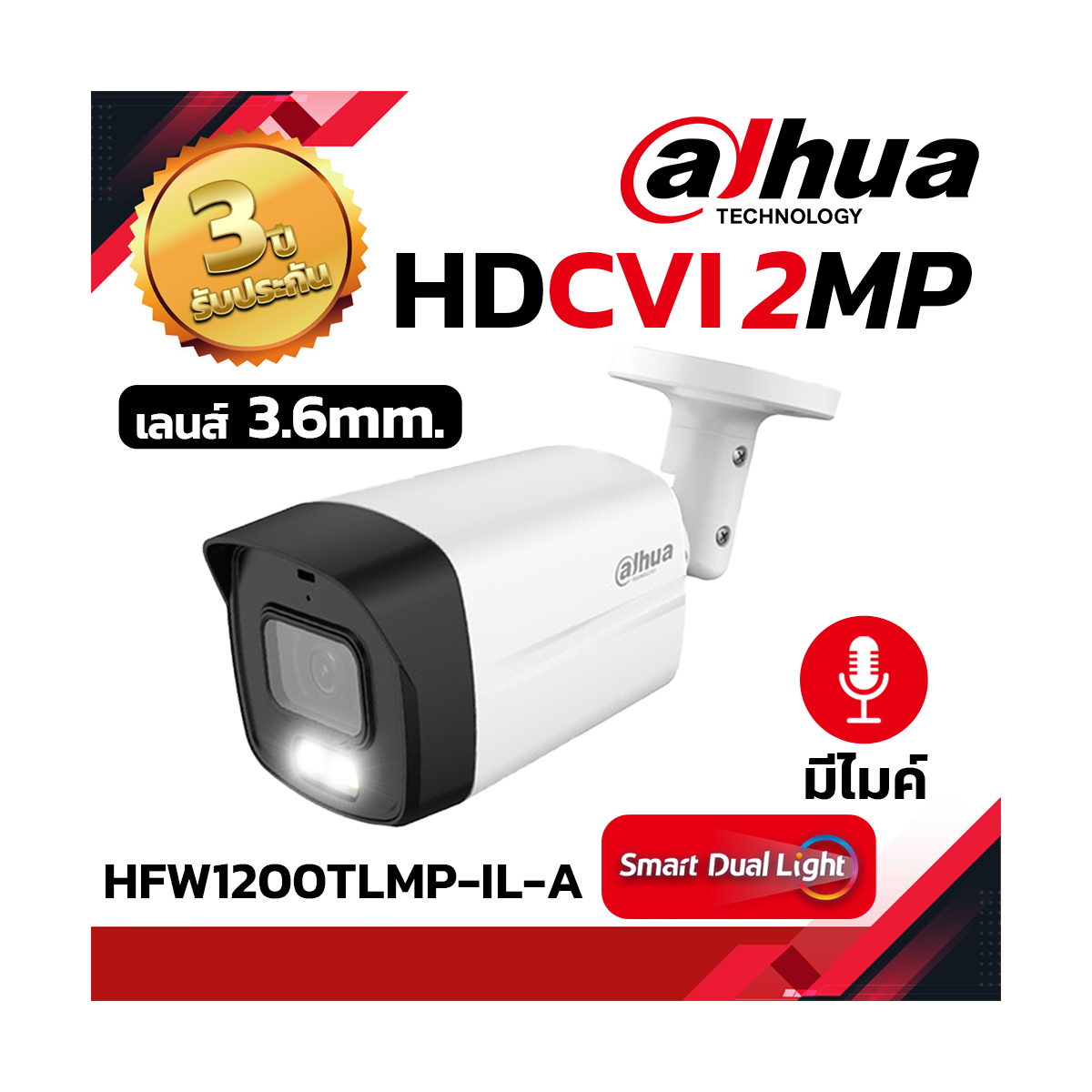

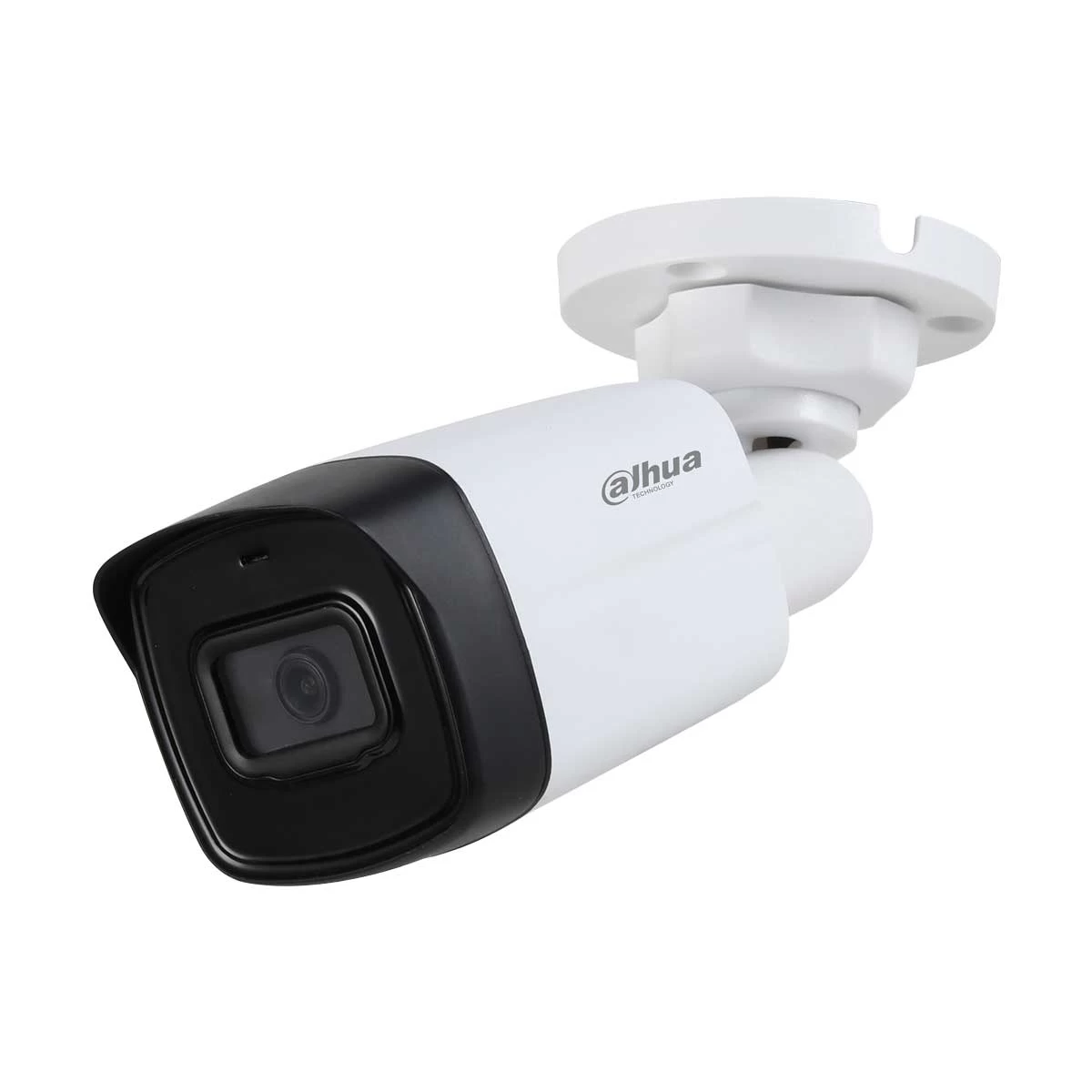

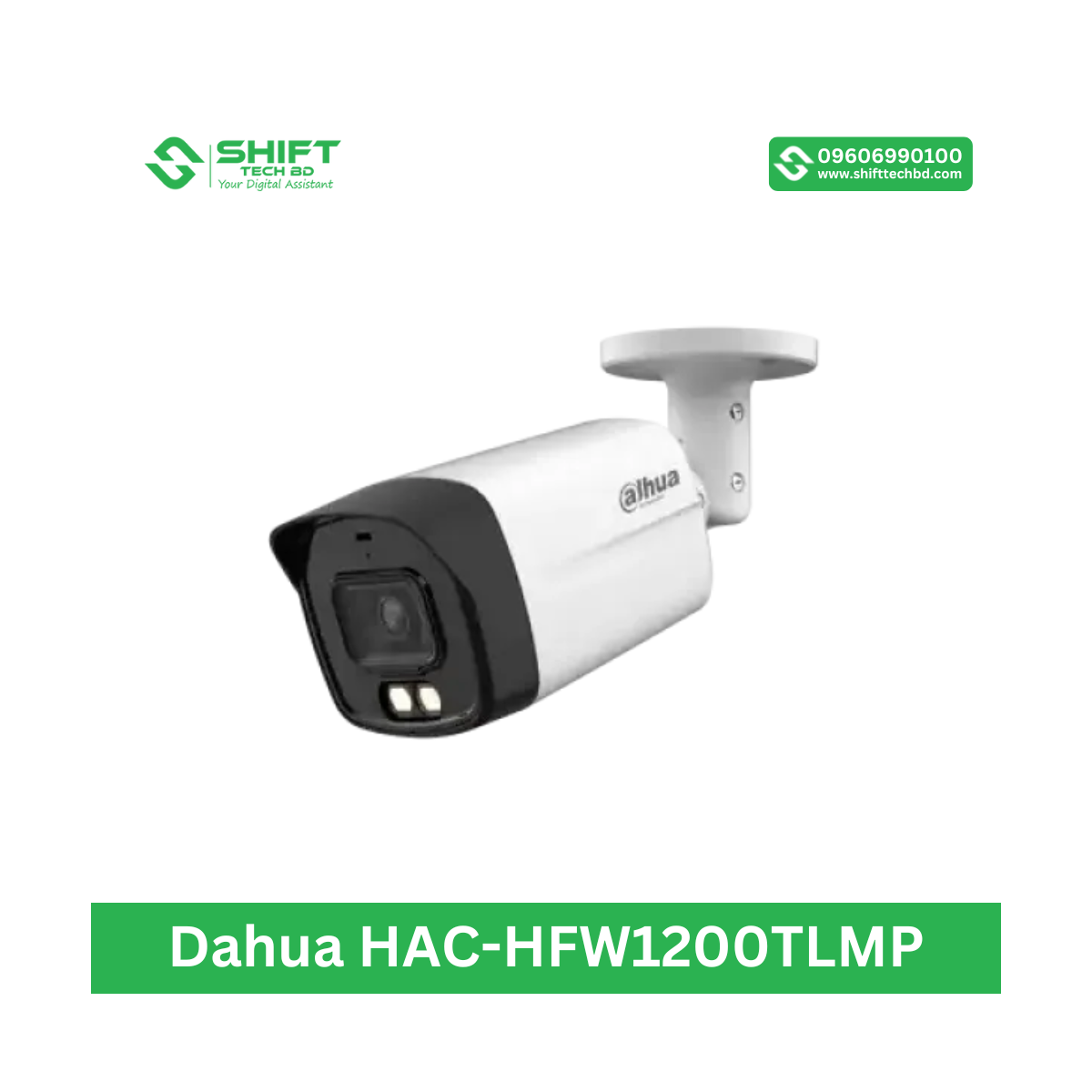

Dahua HAC-HFW1200TLMP 2MP Bullet 3.6mm IP67

HAC-HFW1200TLMP 2MP Bullet Camera

The Dahua HAC-HFW1200TLMP is a coax bullet camera that records 2MP video through a 3.6mm lens with Smart Dual Light and a built-in microphone. The IP67 enclosure mounts on exterior walls and poles where directional coverage of gates, alleys, and service yards is required. HDCVI transport keeps deployment cost low on sites that already run coax from camera to recorder.

Smart Dual Light alternates white-light and infrared output to match scene brightness. Operators gain color-identifiable footage when white light activates and extended IR reach when darkness demands it. The onboard microphone captures ambient sound on recorders that accept audio-over-coax, adding context to motion events without a separate audio pickup. The 2MP resolution balances storage use with sufficient detail for identification at standard mounting heights.

Installers align the bullet barrel along fence lines and loading approaches during the first site walk. Cable shield continuity and ground bonding follow local electrical codes at the building entry point. Recorder menus expose day-night thresholds, backlight compensation, and audio gain per channel. Periodic service includes lens wipe-down and inspection of the sun hood mounting screws after wind events.

Key Features

• 2MP HDCVI Imaging
  Delivers HD coax video compatible with Dahua HDCVI and XVR platforms for straightforward recorder pairing.

• Smart Dual Light System

  • White-light mode supports color night identification near entries.
  • IR mode extends detection range with reduced visible glow.

• Integrated Microphone
  Captures site audio on supported head-ends for synchronized A/V evidence.

• 3.6mm Bullet Form Factor
  Compact housing aims along fence lines and loading approaches with minimal visual obstruction.

• IP67 Exterior Rating
  Sealed construction handles rain, dust, and temperature cycles on outdoor structures.

• Single-Cable Coax Install
  One homerun per camera reduces conduit fill compared with separate power and data paths.

Specifications

What’s in the Box

• HAC-HFW1200TLMP bullet camera unit

• Mounting bracket and screw kit

• Weatherproof connector hardware

• Installation documentation

Why Choose HAC-HFW1200TLMP

• Affordable 2MP coax upgrade path with adaptive dual-light night performance.

• Onboard mic adds audio logging without extra cabling on compatible DVRs.

• IP67 bullet housing suits exposed perimeter and industrial yard deployments.

• 3.6mm optics cover wide approach angles from standard wall-mount positions.

• Smart Dual Light reduces operator toggling between IR and white-light schedules.
