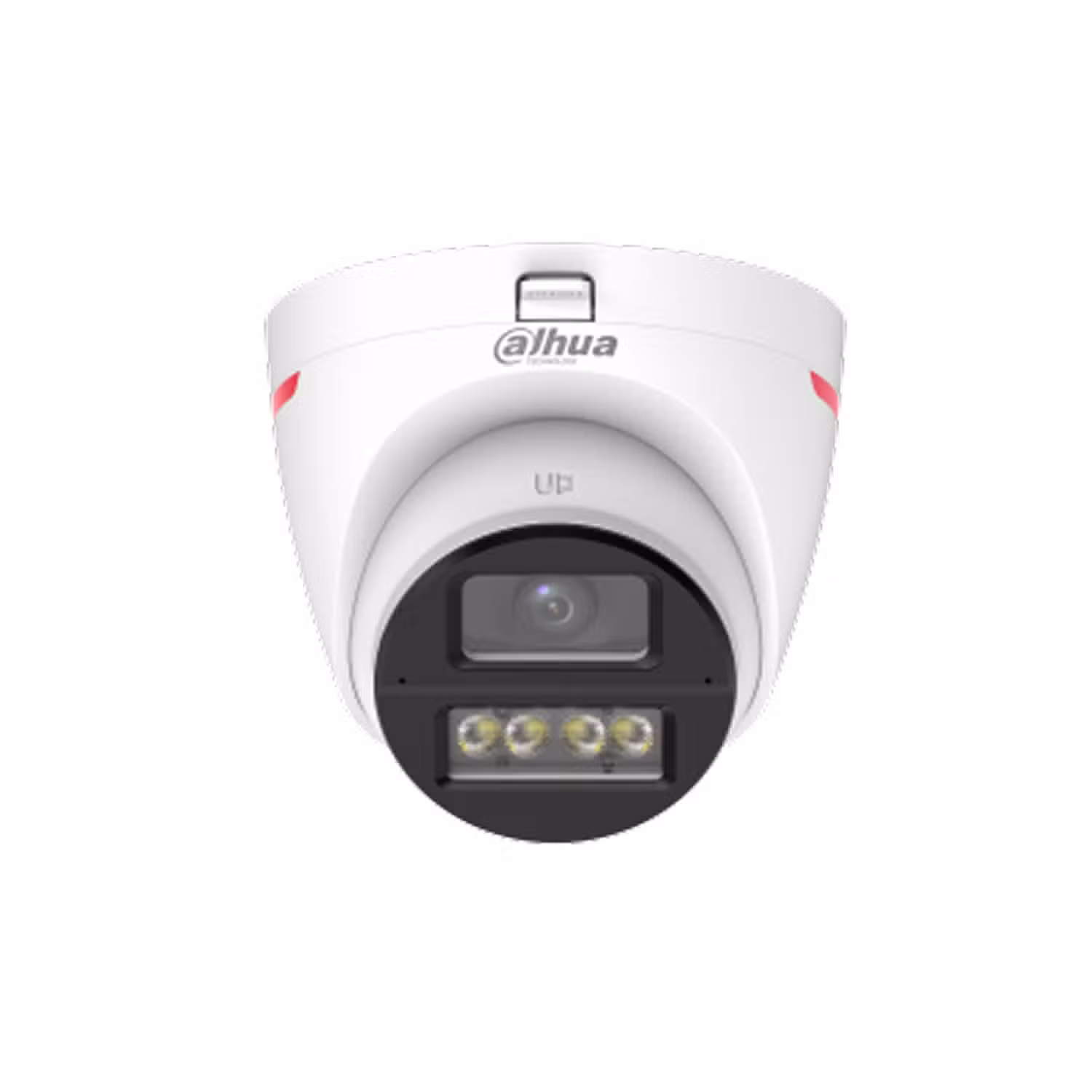

Dahua DH-HAC-HDW1249X-IL-A-PRO 2MP WizColor HDCVI Eyeball Camera, 2.8 mm, IP67
Original price was: KSh 5,900.00.KSh 4,600.00Current price is: KSh 4,600.00. ex VAT
Dahua DH-HAC-HDW1249X-IL-A-PRO 2MP WizColor HDCVI Eyeball Camera, 2.8 mm, IP67
| Image sensor | 2 MP CMOS |
| Max resolution | 1920 x 1080 at up to 30 fps |
| Lens | 2.8 mm fixed-focal, F1.0, M12 mount |
| Field of view | 101.8° H / 54.4° V / 122.1° D |
| Illumination | Smart Dual Light, IR and warm light 50 m |
| WDR | 130 dB true WDR, 3D NR |
| Audio | Built-in dual microphone, 12 m pickup |
| Video output | BNC, CVI/AHD/TVI/CVBS switchable |
| Power | 12 VDC ±30%, max 5.6 W |
| Protection | IP67, -40 °C to +60 °C |
| Dimensions | 109.9 mm diameter x 102.2 mm |
| Weight | 0.33 kg |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
HDCVI Eyeball Platform with Smart Dual Light
The Dahua 2MP WizColor camera is a fixed-focal eyeball unit for coaxial HDCVI, AHD, TVI and CVBS backbones. A 2 MP CMOS sensor outputs 1920 x 1080 at 25 or 30 fps depending on the video standard. The 2.8 mm F1.0 lens covers 101.8° horizontally and 122.1° diagonally.
Four multi-core IR emitters and a warm-light array share a 50 m illumination distance. Smart Dual Light switches between the two sources as scene brightness falls, and Smart Light+ trims output when a target enters the frame. The F1.0 aperture keeps colour at 0.0001 lux at 30 IRE.
One BNC port carries CVI, AHD, TVI and CVBS, and a DIP switch selects the active standard at commissioning. The host XVR needs firmware V4.001.0000004.1.R.220323 or later for the dual-light controls. Power draw peaks at 5.6 W from a 12 VDC supply with a ±30% tolerance.
DORI figures at 2.8 mm reach 45.6 m for detection, 18.2 m for observation, 9.1 m for recognition and 4.6 m for identification. The 3.6 mm option extends those distances to 55.6 m and 5.6 m respectively. A three-axis bracket allows 360° pan, 78° tilt and 360° rotation.
Key Features
Dual-Spectrum Illumination
Infrared and warm light both reach 50 m, and the camera blends them automatically as ambient light drops.AI-ISP and 130 dB True WDR
Onboard processing lifts shadow detail and suppresses noise without host-side tuning.Four-Format BNC Output
- CVI, AHD and TVI run 1080p at 25 fps PAL or 30 fps NTSC
- CVBS falls back to 960H for legacy recorders
- A recessed DIP switch selects the standard without a firmware change
Built-in Dual Microphone
The internal capsule captures audio at up to 12 m over the CVI channel.Distortion Correction
The lens profile is corrected in-camera for straighter edges on wide scenes.IP67 Metal Housing
A metal and plastic shell seals against dust and water jets for outdoor mounting.
Specifications
| Feature | Specification |
|---|---|
| Image sensor | 2 MP CMOS |
| Max resolution | 1920 x 1080 |
| Scanning system | Progressive |
| Electronic shutter | PAL 1/25-1/100,000 s; NTSC 1/30-1/100,000 s |
| Min. illumination | 0.0001 lux at F1.0 colour, 0.00001 lux B/W, 0 lux with illuminator |
| S/N ratio | Above 65 dB |
| Illumination distance | IR 50 m; warm light 50 m |
| Illuminator count | 4 multi-core light units |
| Lens type | Fixed-focal, M12 mount |
| Focal length | 2.8 mm (3.6 mm optional) |
| Max. aperture | F1.0 |
| Field of view | 2.8 mm: 101.8° H / 54.4° V / 122.1° D |
| Close focus distance | 1.1 m at 2.8 mm |
| DORI, 2.8 mm | Detect 45.6 m, observe 18.2 m, recognise 9.1 m, identify 4.6 m |
| Frame rate | CVI, AHD, TVI: 1080p at 25 fps PAL or 30 fps NTSC |
| Video output | Single BNC, CVI/AHD/TVI/CVBS via DIP switch |
| Audio | Built-in dual microphone, 12 m pickup on CVI |
| WDR | 130 dB true WDR |
| Noise reduction | 3D NR |
| Day/night | Auto ICR, colour, B/W |
| Power supply | 12 VDC, ±30% |
| Power consumption | Max 5.6 W at 12 VDC with LED on |
| Protection | IP67 |
| Operating temperature | -40 °C to +60 °C |
| Operating humidity | Below 95% RH, non-condensing |
| Casing material | Metal and plastic dome with plastic enclosure |
| Dimensions | 109.9 mm diameter x 102.2 mm |
| Net weight | 0.33 kg |
| Installation | Wall, ceiling or vertical pole mount |
What’s in the Box
HDCVI eyeball camera unit
Mounting screws and anchors
Quick start guide
Why Choose the HDW1249X
Four switchable formats let one stock item serve CVI, AHD, TVI and CVBS recorders.
The F1.0 optic and warm-light array produce usable colour frames where IR-only units fall back to mono.
Dual microphones add audio evidence without a separate cable run or powered mic.
IP67 sealing and a -40 °C to +60 °C range cover exposed facades and cold-store entries.
