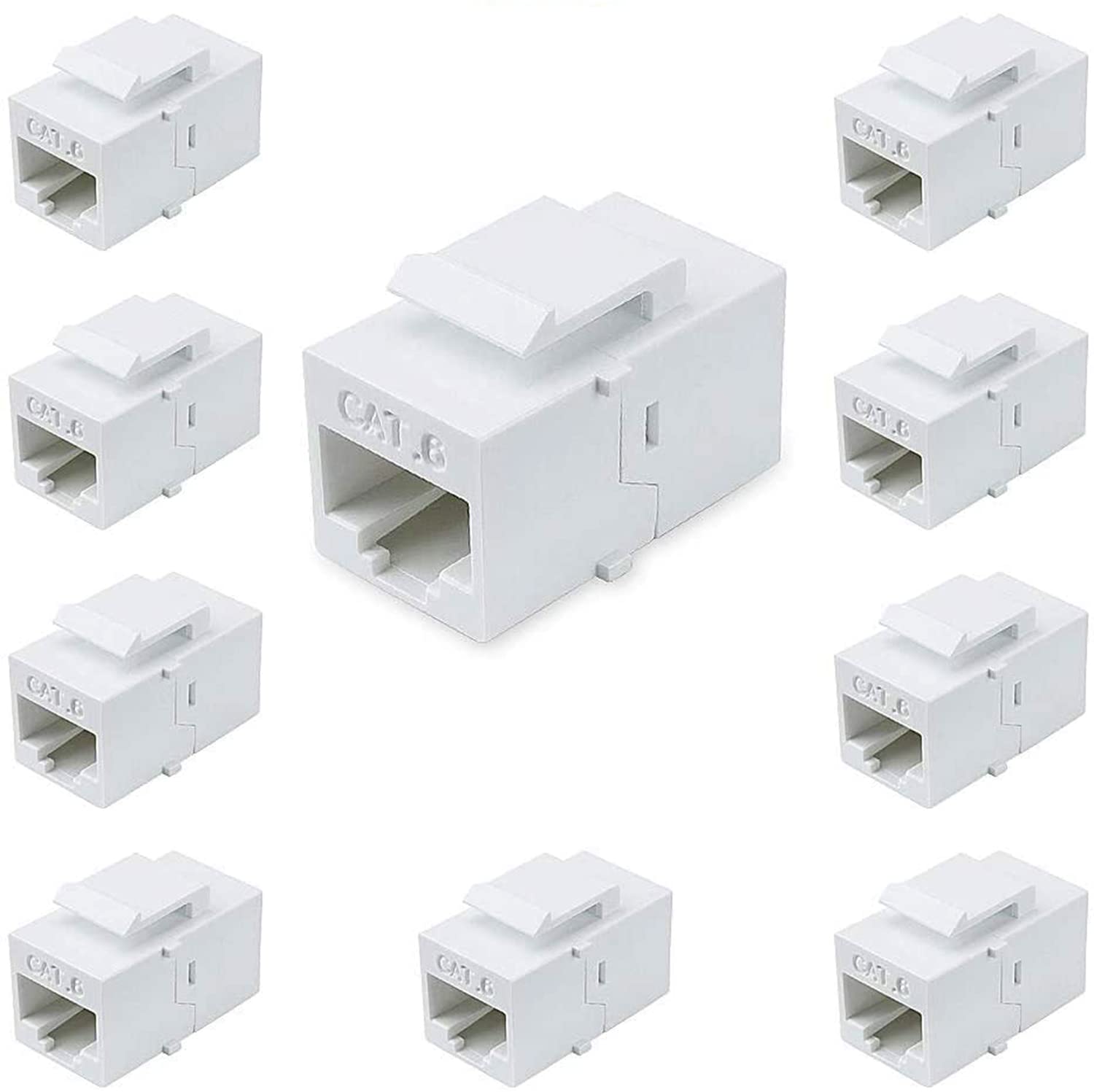

CAT6 Coupler Module Cream RJ45 Female to Female Keystone Jack
Original price was: KSh 62.00.KSh 48.00Current price is: KSh 48.00. ex VAT
CAT6 Coupler Module Cream RJ45 Female to Female Keystone Jack
| Product type | Keystone inline coupler module |
| Category | CAT6, 250 MHz |
| Connectors | RJ45 8P8C female to female |
| Wiring | Straight-through, T568A / T568B |
| Housing | Polycarbonate, 94V-2, cream |
| Contacts | Phosphor bronze, 30 micro-inch gold over nickel |
| Operating temperature | -40°C to 80°C |
| Mating durability | 750 insertion cycles |
| Mounting | Snap-in keystone opening |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Keystone Feed-Through Coupling for Structured Cabling
The CAT6 coupler module joins two RJ45 patch leads through a standard keystone opening without punch-down termination. It provides a female-to-female feed-through path for extending runs at faceplates, patch panels and surface-mount boxes. The cream housing matches neutral wall plates and trunking.
A polycarbonate shell rated 94V-2 carries phosphor bronze contacts with 30 micro-inch gold plating over 50 micro-inch nickel. The straight-through wiring supports T568A and T568B pinouts, and the module meets ANSI/TIA-568 Category 6 channel requirements up to 250 MHz.
The tool-free snap-in body fits standard 14.5 x 16 mm keystone cutouts. Operating temperature spans -40°C to 80°C, which covers indoor cabinets, riser closets and sheltered outdoor enclosures. Mating durability reaches 750 insertion cycles.
Key Features
Feed-Through Architecture
Two RJ45 8P8C jacks connect back-to-back, so technicians extend a link without re-terminating either cable end.Contact Metallurgy
- Phosphor bronze base material maintains spring force across repeated insertions.
- 30 micro-inch gold plating over 50 micro-inch nickel limits oxide build-up on the contact area.
Category 6 Electrical Performance
The coupler supports 250 MHz bandwidth and 1000BASE-T Gigabit Ethernet when used with matching Category 6 cabling.Universal Keystone Fit
The snap-in housing seats in faceplates, patch panels and surface boxes that accept standard keystone modules.Wide Thermal Range
Operation from -40°C to 80°C suits conditioned server rooms as well as unheated telecom cupboards.
Specifications
| Feature | Specification |
|---|---|
| Product type | Keystone inline coupler module |
| Category rating | CAT6, 250 MHz |
| Connector type | RJ45 8P8C female to female |
| Wiring scheme | Straight-through, T568A / T568B |
| Housing material | Polycarbonate, 94V-2 |
| Colour | Cream |
| Contact material | Phosphor bronze |
| Contact plating | 30 micro-inch gold over 50 micro-inch nickel |
| Operating temperature | -40°C to 80°C |
| Mating durability | 750 insertion cycles |
| Mounting | Snap-in keystone opening |
| Standards | ANSI/TIA-568 Category 6 |
What’s in the Box
CAT6 keystone coupler module, cream
Why Choose This Keystone Coupler
Extends an existing patch lead without cutting, crimping or re-terminating the cable.
Gold-plated phosphor bronze contacts resist corrosion in humid East African sites.
Standard keystone dimensions allow stock consolidation across faceplate and panel brands.
Passive operation needs no power supply or active electronics at the outlet.
The cream finish blends with neutral office wall plates and desk trunking.
