Apple MacBook Pro 13 A1708 Space Grey Display Assembly 13.3-inch Retina 2560×1600

Retina Replacement Lid for MacBook Pro 13

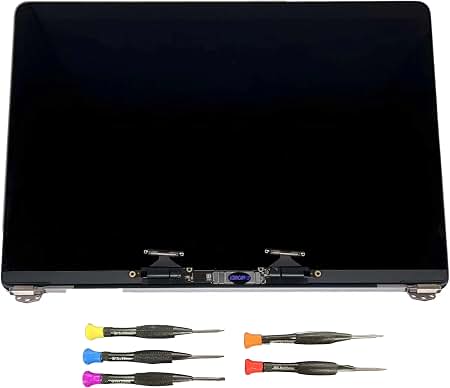

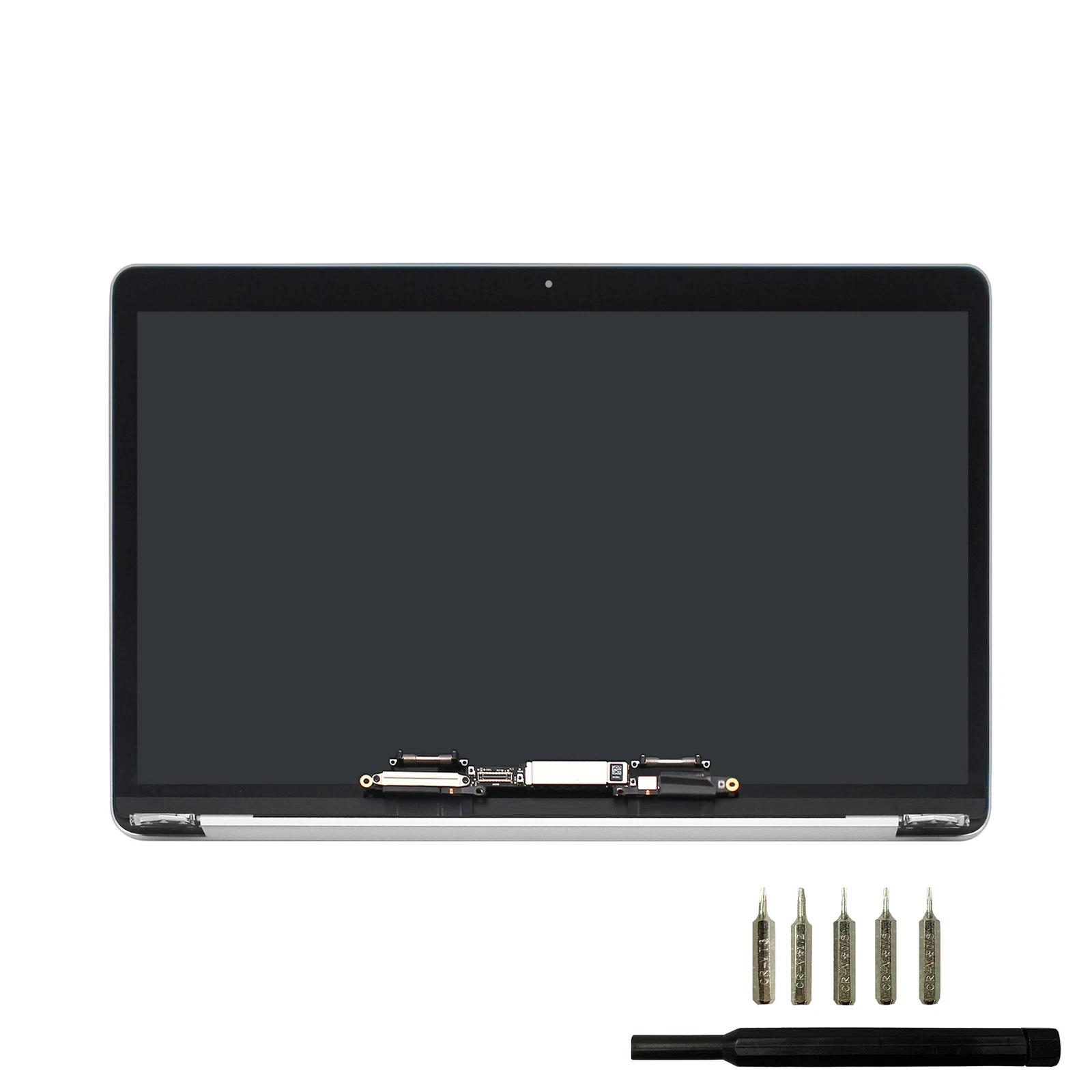

The Apple A1708 display assembly supplies a complete 13.3-inch lid for the 2016 and 2017 MacBook Pro 13 without Touch Bar. It arrives as one factory-assembled unit rather than a bare panel. The assembly includes the LCD, cover glass, aluminium lid, hinges, and where fitted, the FaceTime camera and antenna modules.

The panel runs a 2560 × 1600 native resolution at 227 pixels per inch on IPS technology. Brightness sits near 300 nits with wide colour coverage, which matches the original Retina output. A controller board and ribbon cable carry the video signals to the logic board.

Space Grey anodised aluminium matches the A1708 chassis finish. The two Thunderbolt 3 models covered are EMC 2978 for 2016 and EMC 3164 for 2017. Hinge tension and antenna routing demand care during fitting, so professional installation is recommended.

Key Features

• Complete Top Assembly
  The unit ships as a sealed lid with LCD, glass, hinges and aluminium housing already joined.
• Retina IPS Panel
  A 2560 × 1600 native resolution across 13.3 inches gives 227 ppi and 178-degree viewing angles.
• Colour and Brightness
  • Approximately 300 nits peak brightness
  • Wide P3 colour gamut coverage
• Camera and Antenna Modules
  Where fitted, the FaceTime HD camera, microphone and wireless antennae come pre-mounted in the lid.
• Chassis-Matched Finish
  Space Grey anodised aluminium matches the A1708 lower body and hinge covers.
• Ribbon and Controller Board
  The display tail terminates in the expected connector for the A1708 logic board.

Specifications

What’s in the Box

• 13.3-inch Space Grey complete display lid
• Pre-mounted hinges and display ribbon
• Protective packaging with hinge-side support

Why Choose the A1708 Lid

• The MacBook 13 screen assembly replaces a cracked or delaminated lid in one step, which reduces bench time compared with a bare panel swap.
• A Space Grey top assembly keeps the colour match consistent across lid, hinge covers and lower chassis.
• The Retina display assembly retains the original 2560 × 1600 output, so scaling and application layouts stay unchanged.
• Pre-fitted camera and antennae remove the need to transfer fragile coaxial leads between old and new lids.
• Each A1708 lid assembly is inspected and packed with rigid support around the hinge edge before dispatch.
