Apple MacBook A2338 Screen Assembly 13.3-Inch 2560×1600 Retina Silver

Replacement Retina Display for 13-Inch MacBook Pro

The Apple MacBook A2338 screen is a complete 13.3-inch Retina display assembly for the M1 and M2 MacBook Pro. It arrives with the LCD panel, backlight, display board and aluminium lid frame pre-assembled in silver. Technicians swap the whole upper half instead of separating bonded layers.

Native resolution is 2560 x 1600 at 227 pixels per inch on an IPS panel with LED backlighting. The factory rating specifies 500 nits and P3 wide colour, and the glossy cover glass carries an anti-reflective coating. A display-board connector links the panel to the main logic board through the existing hinge cable.

Part fitment covers EMC 3578 and EMC 8162 chassis, including MYD83, MYD92, MYDA2 and MYDC2 SKUs. The assembly also fits MNEQ3, MNEP3 and MNEJ3 variants. Confirm the EMC code on the underside of the machine before ordering, because 13-inch Air panels use a different lid and connector. Service requires a pentalobe P5 driver, a Torx T5 driver and a suction cup.

Key Features

• Complete Upper Half Assembly
  The unit ships with panel, backlight, display board and lid frame joined, which removes glass-to-panel bonding work from the repair.

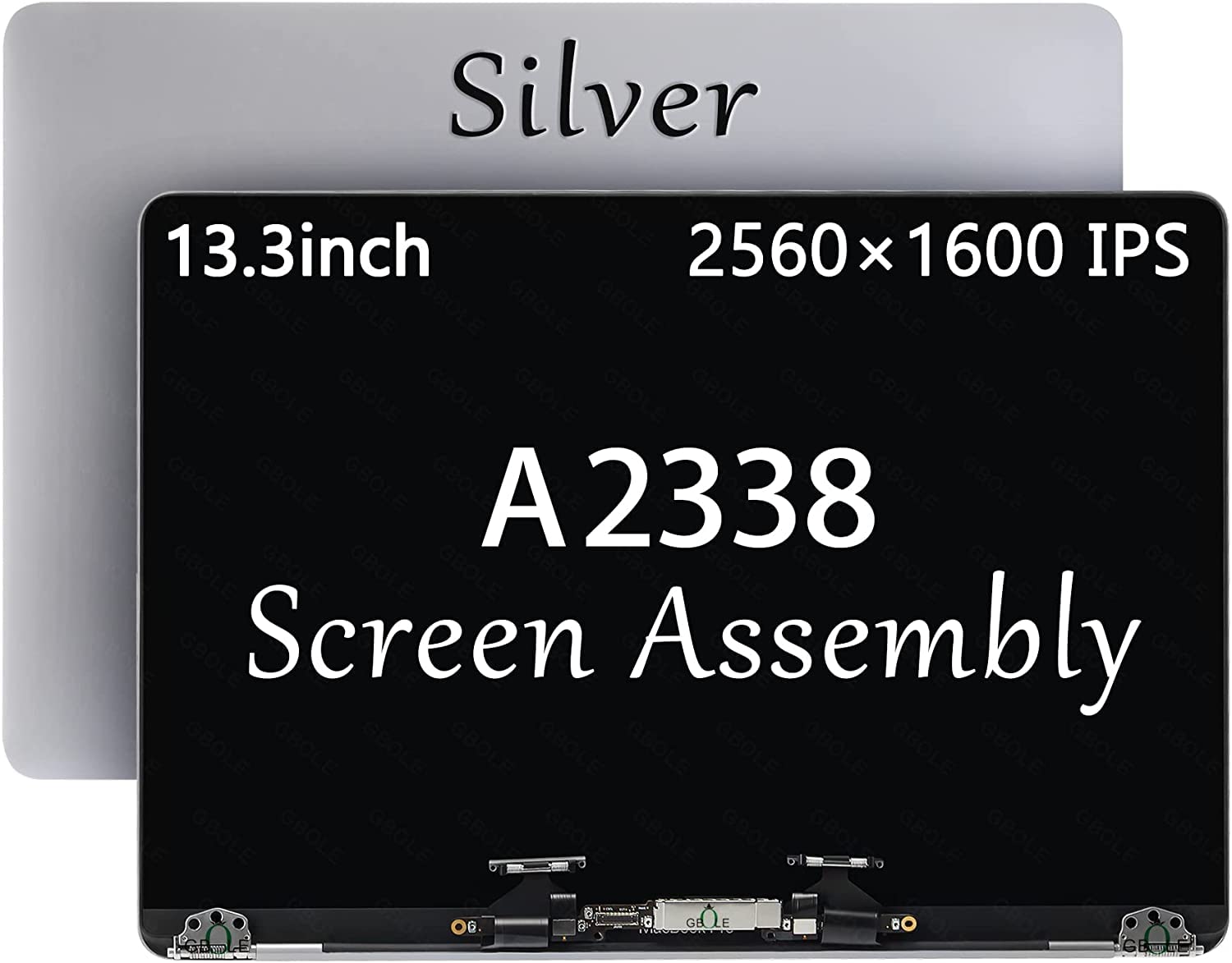

• 2560 x 1600 Retina Panel
  The 13.3-inch IPS panel delivers 227 pixels per inch with LED backlighting and a glossy anti-reflective finish.
• Fitment Coverage Across Four Chassis Codes
  • EMC 3578 for the 2020 M1 generation
  • EMC 8162 for the 2022 M2 generation
  • Model codes MYD83, MYD92, MYDA2, MYDC2, MNEQ3, MNEP3 and MNEJ3
• Pre-Fitted Display Board
  The controller board sits on the rear of the panel, so the original hinge cable plugs straight into the new assembly.

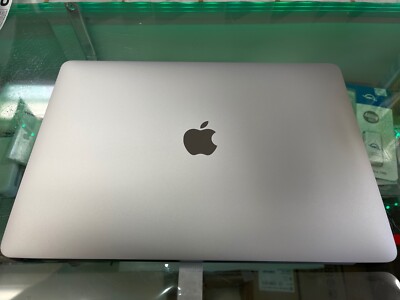

• Silver Anodised Lid
  The machined aluminium cover matches the silver chassis colour and carries the original camera aperture and antenna windows.
• Sealed Retail Packaging
  The assembly travels in a rigid foam carton that holds the panel flat and keeps pressure off the glass during transit.

Specifications

What’s in the Box

• 13.3-inch Retina display assembly in silver
• Pre-fitted display board
• Foam shipping carton

Why Choose This A2338 Display

• A single part number covers both the M1 and M2 generations, which cuts the number of lid variants a workshop stocks.
• The pre-bonded panel and glass remove the delamination risk that comes with separating a Retina lid by hand.
• Fitting the complete upper half restores the original hinge alignment and lid gap without shimming.
• The 2560 x 1600 panel returns full Retina scaling for design, code and photo work.
• A rigid carton protects the glass through courier handling, which matters for remote repair depots.
