APKR Face Plate 2 Port 86x86mm ABS Keystone Wall Outlet with Shutter
Original price was: KSh 146.00.KSh 120.00Current price is: KSh 120.00. ex VAT
APKR Face Plate 2 Port 86x86mm ABS Keystone Wall Outlet with Shutter
| Port count | 2 keystone ports |
| Outside dimensions | 86 x 86 mm |
| Material | ABS plastic |
| Mounting | Single-gang 86 x 86 mm back box |
| Shutter | Spring-loaded, one per port |
| Cable compatibility | Cat5e, Cat6, Cat6a |
| Colour options | White, black |
| Fixing screws | Included |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

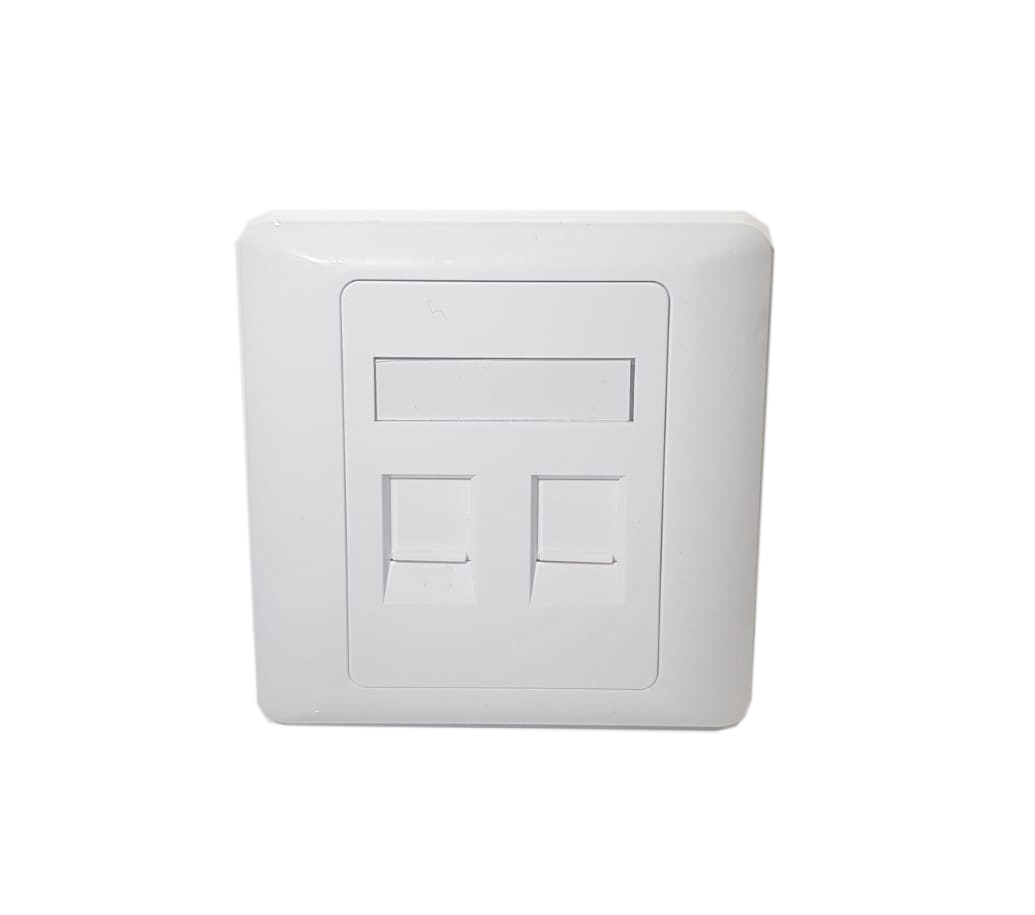

Two-Port Wall Outlet for Keystone Modules
The APKR Face Plate is an 86 x 86 mm wall outlet that accepts two keystone modules. It mounts on a standard single-gang back box and terminates two data points at the wall. The ABS frame carries a spring-loaded shutter over each port opening.
Two keystone cutouts accept RJ45 jacks for Cat5e, Cat6 and Cat6a cabling. Modules clip in from the front or the rear and release without a punch-down tool. A label window above each opening carries the outlet identifier. Fixing screws ship with the plate.
The plate fits 86 x 86 mm back boxes used in commercial and residential structured cabling. ABS construction resists impact in high-traffic wall locations. The shutter keeps dust out of unused ports and closes when a cord is removed. Colour options cover white and black.
Key Features
Dual Keystone Openings
Two cutouts accept standard keystone jacks for RJ45, telephone or multimedia modules.Spring-Loaded Shutters
- Each port closes automatically when no cord is fitted
- Dust and debris stay out of the jack contacts
- Shutter clears the latch on insertion
Tool-Free Module Retention
Keystone jacks clip in and release by hand for moves, adds and changes.86 x 86 mm Mounting Pattern
The frame aligns with standard single-gang back boxes and UK-style wall boxes.ABS Housing

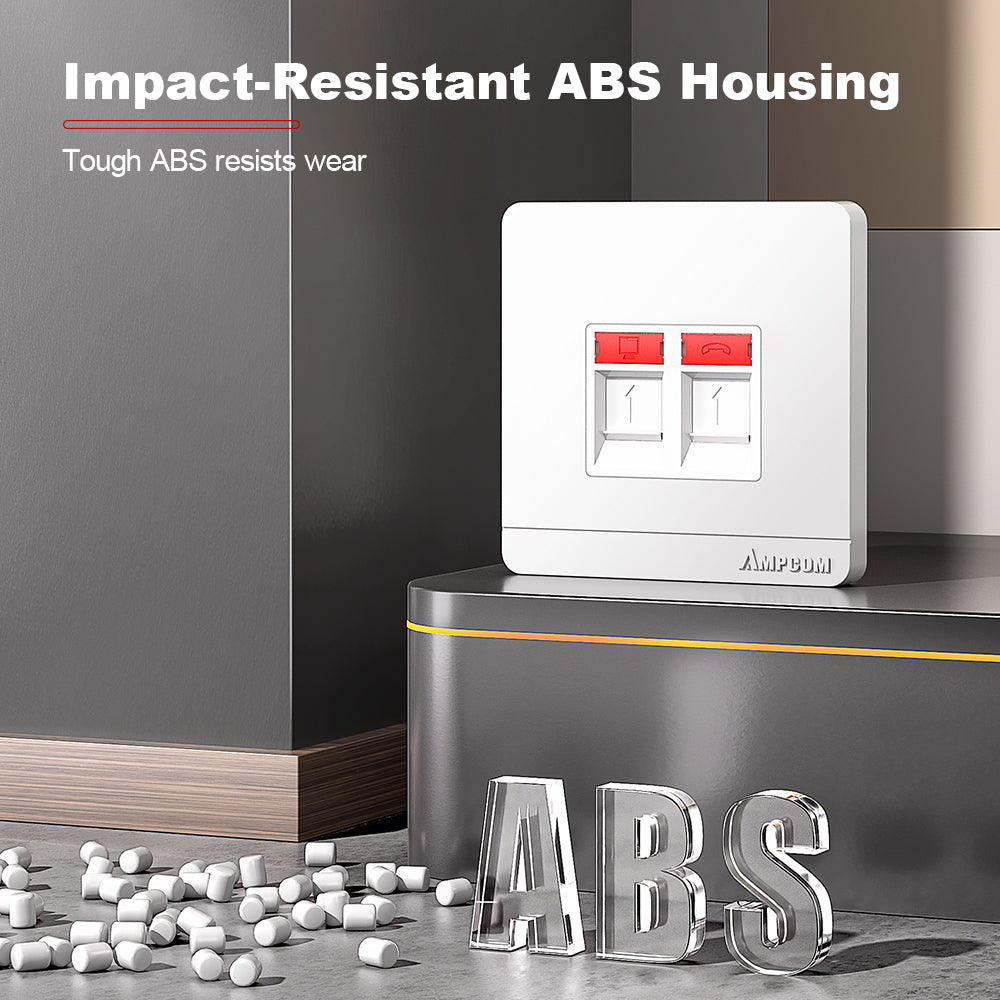

The moulded frame resists impact and maintains dimensional stability at the port cutouts.Port Identification Window
A clear label holder above each opening carries the outlet number or room code.
Specifications
| Feature | Specification |
|---|---|
| Port count | 2 keystone ports |
| Module type | Keystone jack, front or rear fitting |
| Outside dimensions | 86 x 86 mm |
| Mounting | Single-gang 86 x 86 mm back box, flush mount |
| Material | ABS plastic |
| Colour options | White, black |
| Shutter | Spring-loaded, one per port |
| Label holder | Clear window above each port |
| Cable compatibility | Cat5e, Cat6, Cat6a |
| Wiring schemes | T568A and T568B |
| Fixing screws | Included |
| Operating temperature | -10°C to 60°C |
What’s in the Box
2-port 86 x 86 mm faceplate
Fixing screws
Port label card
Why Choose This Wall Outlet
Two keystone positions consolidate a pair of data points into one wall opening.
The 86 mm frame matches common back box dimensions, which avoids rework on site.
Removable modules let technicians change jack categories without replacing the plate.
Dust shutters protect unused contacts in workshops and factory floors.
The label window speeds fault tracing during patch panel audits.
