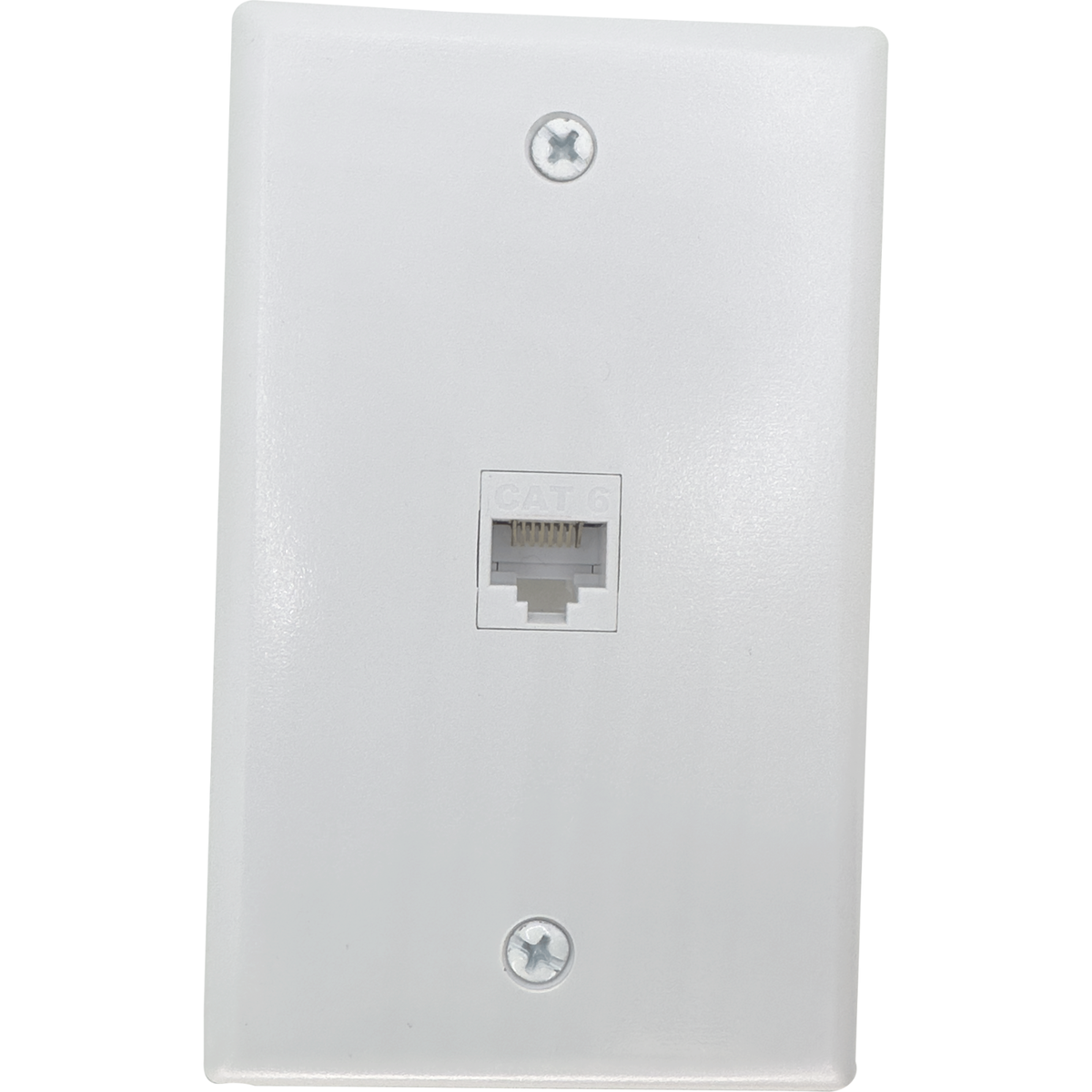

APKR Cat6 Keystone Outlet 1 Port Face Plate Single Gang 86×86 mm White

Single-Gang Wall Outlet for Keystone Modules

The APKR Cat6 Keystone Outlet is a single-gang wall face plate that accepts one standard keystone module. It provides a finished termination point for Cat6, Cat5e or Cat5 cabling in structured wiring installations. The 86 x 86 mm footprint matches common back boxes, so retrofit work uses existing cut-outs.

High-impact ABS plastic forms the front plate and the module cradle. A snap-in retention clip holds the keystone jack without screws, and the plate then fixes to the box with two countersunk screws. The 1-port cut-out accepts RJ45, RJ11 or other keystone-format connectors.

Flush and surface mounting both apply, depending on the back box selected. The white finish suits office partitions, home walls and comms cabinets. A recessed label window sits above the port for cable identification. The plate shields the termination from dust and accidental contact.

Key Features

• Single Keystone Cut-Out
  The 1-port opening accepts any standard keystone module, including Cat6, Cat5e and RJ11 jacks.

• 86 x 86 mm Single-Gang Format
  The plate matches common UK and European single-gang back boxes for straightforward retrofit work.

• High-Impact ABS Construction

  • Resists cracks and scratches under daily use
  • Withstands repeated module insertion and removal
  • Holds shape in warm comms cupboard environments

• Tool-Free Module Seating
  The snap-in clip retains the keystone jack without adhesive or a separate mounting frame.

• Flush or Surface Mounting
  Two countersunk screws secure the plate to a flush box or a surface-mount back box.

• Gigabit Ethernet Support
  With a Cat6 module fitted, the outlet passes 10/100/1000 Mbps traffic over twisted-pair cabling.

• Label Window
  A recessed area above the port holds a printed identifier for port and patch panel mapping.

Specifications

What’s in the Box

• 1 x single-port face plate

• 2 x mounting screws

Why Choose This Wall Outlet

• The single-port format terminates one cable run without occupying a double-gang box.

• ABS construction survives knocks in corridors and busy open-plan floors.

• The snap-in cradle lets technicians swap a keystone jack without replacing the plate.

• The label window keeps port numbers visible during moves, adds and changes.

• The 86 mm square fits the back boxes already installed in most regional buildings.

• The 1-port wall faceplate keeps dust out of unused module slots in active outlets.
