APKR Cat 6 24-Port Patch Panel Loaded 1U 19-Inch UTP RJ45

Loaded 24-Port Copper Patch Panel

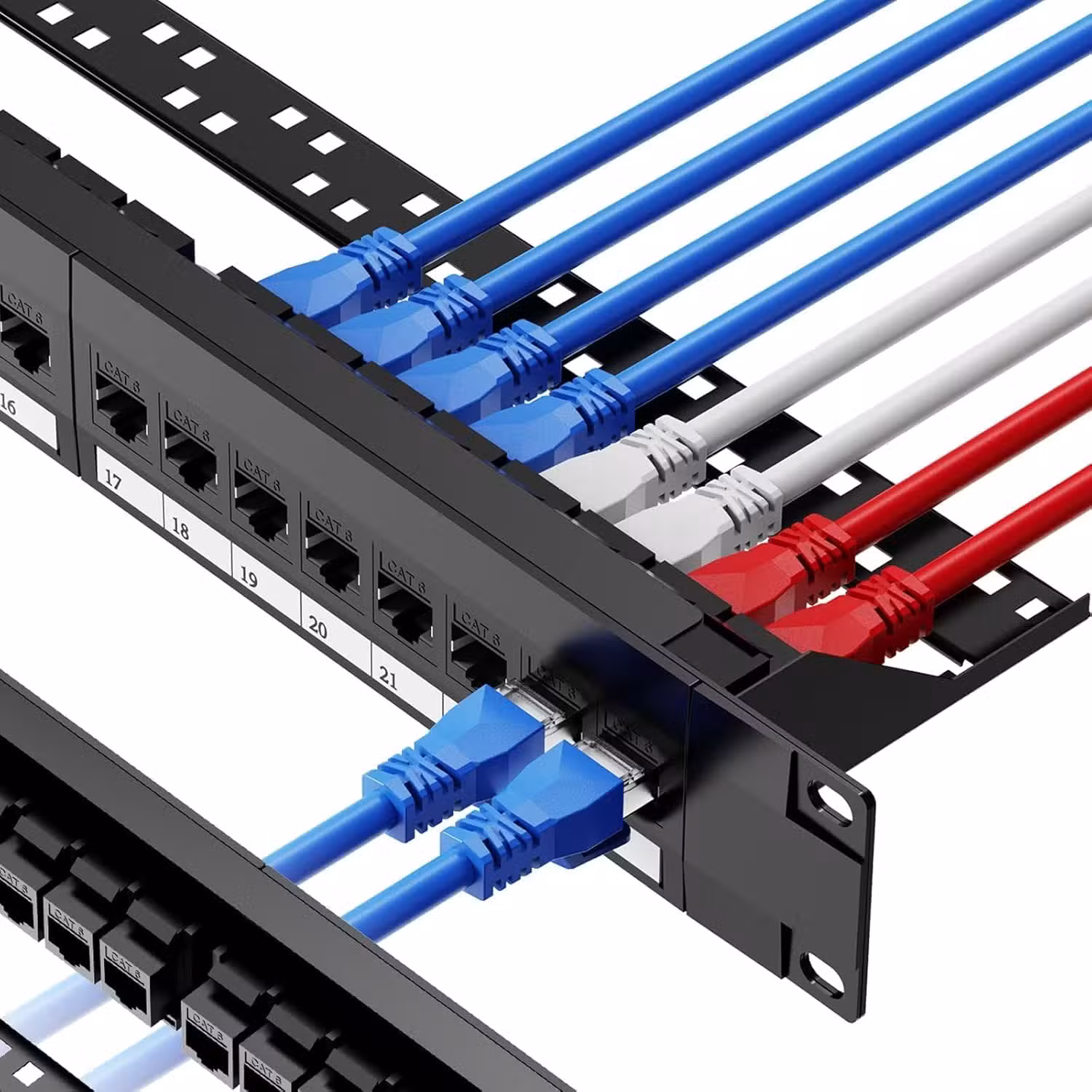

The APKR patch panel terminates 24 Cat 6 channels in a single 1U rack unit. Each port arrives pre-loaded with an RJ45 keystone, so the installer only punches down the horizontal cable. A printed label field sits above every port for circuit identification.

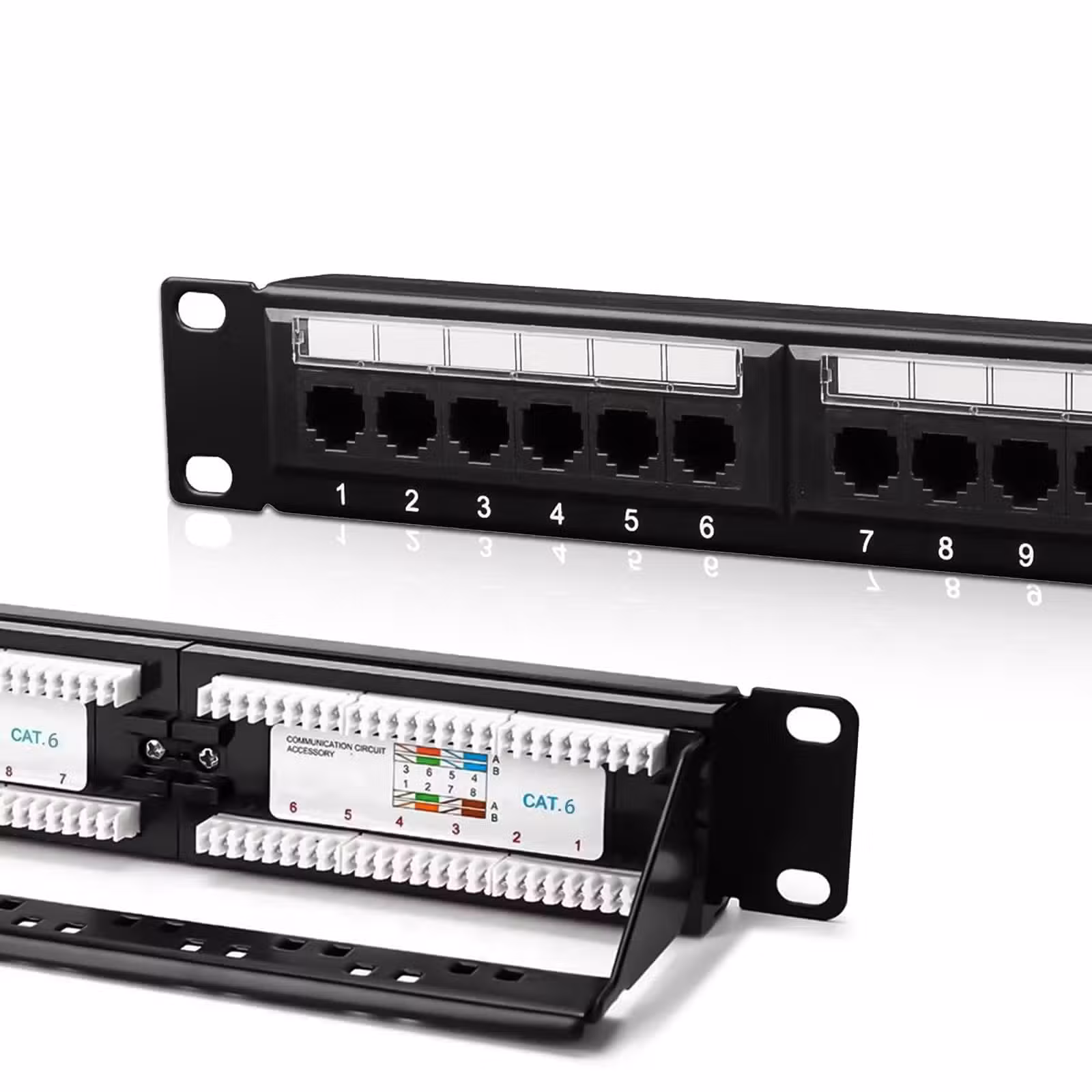

The unshielded panel uses a dual termination block that accepts LSA or 110 tooling. Rear punchdowns sit at 180 degrees to the front ports, and the blocks carry colour coding for both 568A and 568B wiring. Twenty-four ports occupy the full 19-inch width at standard EIA/TIA spacing.

A removable rear cable management bar routes incoming runs and relieves strain at the IDC blocks. The steel frame mounts on standard rack rails with the supplied screws. Cat 6 compliance covers Gigabit Ethernet and short-reach 10G links, and the panel accepts Cat 5e cabling for legacy runs.

Key Features

• 24 Pre-Loaded RJ45 Ports
  Every position ships with an 8P8C keystone fitted, so termination work stays at the rear block.

• Dual LSA and 110 Termination
  The rear block accepts either punchdown tool, which suits mixed install teams and legacy hand tools.

• Colour Coded 568A and 568B Labels

  • Wiring guide printed on the block for both pinout standards
  • Numbered ports match a pre-printed adhesive label sheet

• Removable Rear Cable Bar
  The bar lifts off without tools to open access to the punchdowns during termination.

• Cat 6 UTP Performance
  The unscreened panel meets Category 6 channel requirements for copper Ethernet.

• 1U 19-Inch Steel Chassis
  The metal frame fits standard 482.6 mm rack rails and occupies one rack unit.

• Backwards Compatible
  Ports accept Cat 5e and earlier cabling, so existing runs still terminate on the same panel.

Specifications

What’s in the Box

• 24-port loaded copper panel

• Removable rear cable management bar

• Rack mounting screws

• Pre-printed port label sheet

Why Choose APKR

• Pre-loaded keystones remove 24 jack insertions from the installation schedule.

• Dual LSA and 110 blocks let one panel serve whichever punchdown tool the team carries.

• Rear bar strain relief protects IDC terminations from cable weight in populated cabinets.

• Numbered ports and printed label fields shorten fault tracing during moves and adds.

• The steel 1U chassis holds alignment across repeated patching cycles in shared racks.
