41X1292 Media Feeder – Paper Pick Assembly for Lexmark C2240 C235 C2425 CS421 CS521

Paper Pick Assembly for Lexmark Colour Printers

The 41X1292 media feeder is a replacement paper pick assembly that restores reliable sheet pickup on compatible Lexmark printers. It combines the feed roller, separation pad and drive motor in one serviceable unit. The assembly mounts in Tray 1 and engages the paper stack during each print cycle.

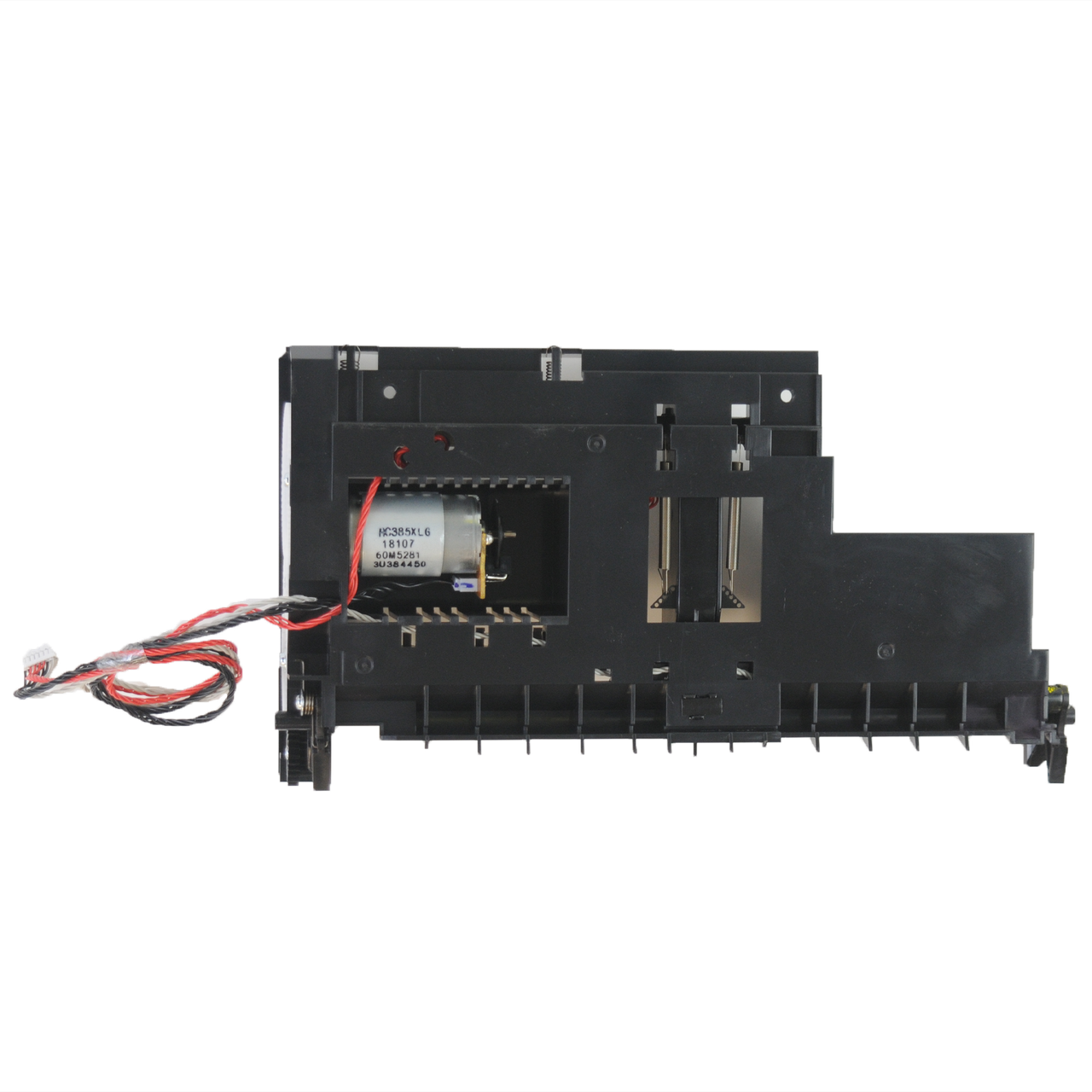

The unit carries a geared drive motor rated for the duty cycle of a workgroup printer. The rubber pick roller grips smooth and recycled media without slipping, and the separation pad prevents double feeds. The housing locates on the tray frame with two screws and a keyed connector.

Field replacement follows the standard tray removal procedure. Technicians lift Tray 1 out, release the feeder assembly and disconnect the motor harness. The new unit seats on the same mounting points and reuses the existing harness. No calibration or firmware update is required after installation.

Key Features

• Integrated Pick and Drive Assembly
  The unit combines the feed roller, separation pad and geared motor in a single replaceable module.

• Restores Paper Pickup
  A worn feeder causes jams and misfeeds; replacement restores consistent sheet capture from Tray 1.

• Double-Feed Prevention
  The separation pad limits multi-sheet pickup on thin and recycled stocks.

• Motor and Harness Included

  • Geared drive motor mounted in the housing
  • Keyed connector mates with the printer harness
  • Two-screw mounting on the tray frame
  • No calibration or firmware update required

• Serviceable Design
  The module removes from the tray without dismantling the printer chassis.

• Compatible Media Range
  The roller compound handles plain paper, recycled stock and light card within the tray rating.

Specifications

What’s in the Box

• Media feeder assembly

• Mounting screws

• Installation leaflet

Why Choose This Feeder Assembly

• Replacing the feeder restores first-page pickup and reduces jam frequency.

• The integrated motor removes the need to diagnose separate roller and drive faults.

• Keyed connector and two-screw mounting simplify field service.

• The separation pad controls double feeds on thin and recycled media.

• One part number covers a wide range of Lexmark colour and mono workgroup models.

• No calibration step shortens printer downtime during replacement.
