40X7301 Photo Sensor and Retainer

Photoelectric sensor for printer media and finisher position detection

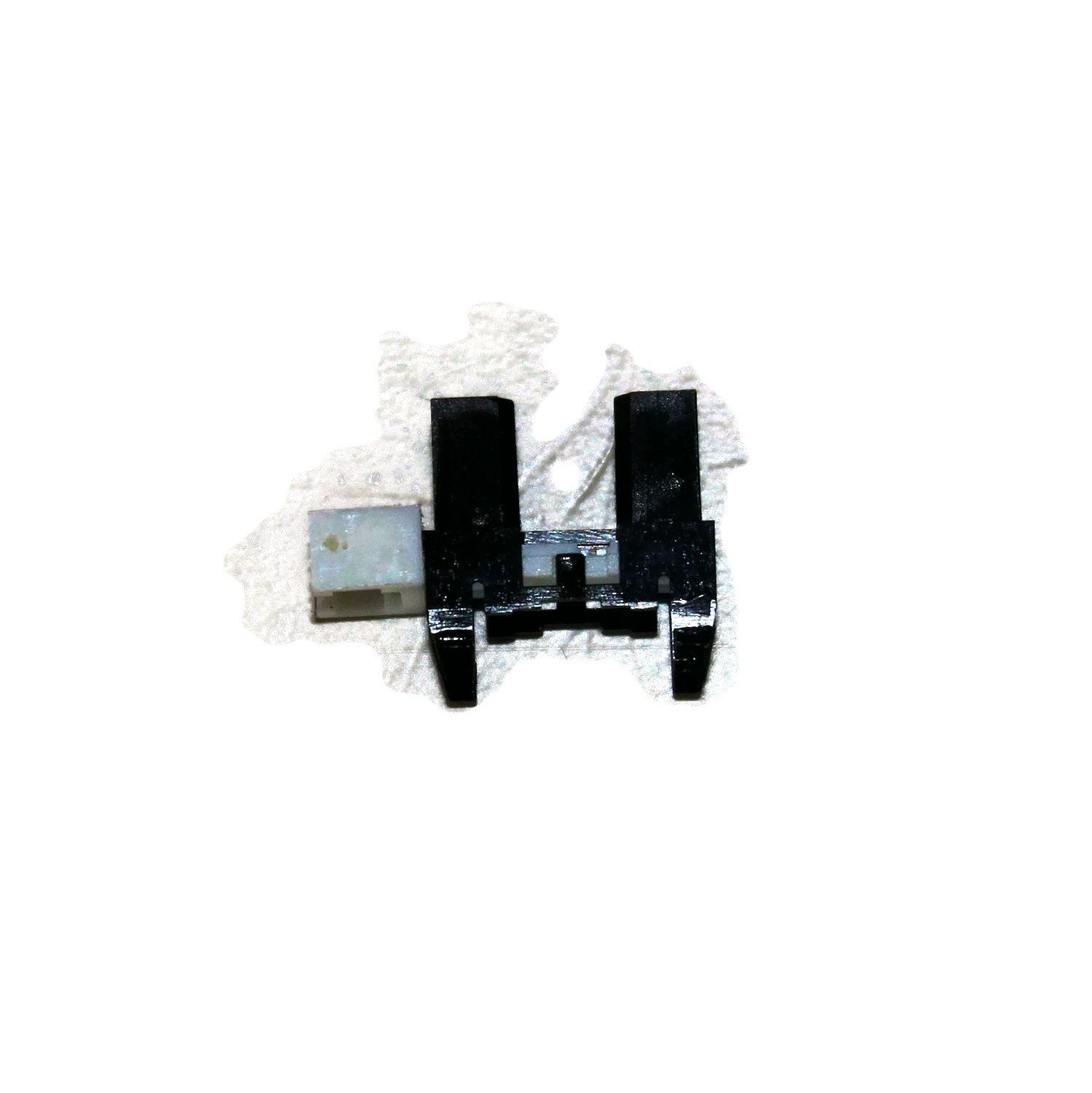

The 40X7301 photo sensor is a photoelectric replacement part used in Lexmark printers and finisher units. It detects media presence, paper size and bin clamp position through an optical interruptor circuit. The package includes the sensor and its mounting retainer.

The sensor operates as a transmissive photointerrupter with a digital output. It connects to the machine harness through a keyed connector and requires no calibration after fitting. The retainer clips the sensor into the chassis at the correct gap width for reliable switching.

Compatible platforms include the Lexmark C540, CS310, CS410, CS510, CX410 and CX510 series, plus finisher assemblies such as the 7531 and 0563-ILS. The part also serves as a narrow media sensor and staple finisher tamper position sensor in those units. Replacement restores paper-feed timing and finisher alignment.

Key Features

• Photoelectric interruptor element
  The sensor switches a digital output when media or a mechanical flag interrupts the optical path.

• Integrated retainer clip
  The included retainer sets the sensor gap and locks it to the chassis without adhesive.

• Keyed harness connector
  The plug seats in one orientation, which prevents miswiring during field replacement.

• Multi-model compatibility

  • Lexmark C540, CS310, CS410, CS510 colour printers
  • Lexmark CX410, CX510 multifunction models
  • Finisher units 7531 and 0563-ILS

• Narrow media and tamper sensing
  The same part serves as a narrow media sensor and a staple finisher tamper home sensor in listed assemblies.

• No calibration required
  The optical threshold is fixed at manufacture, so the replacement needs no adjustment after installation.

Specifications

What’s in the Box

• Photo sensor element

• Mounting retainer

Why Choose This Replacement Sensor

• The optical interrupter restores paper-feed timing without replacing the complete feed module.

• The included retainer sets the correct gap, which avoids false triggers from misalignment.

• Keyed connectors shorten field replacement time and reduce wiring errors.

• One part covers several printer and finisher positions, which simplifies spare-stock planning.

• No calibration step means the machine returns to service immediately after fitting.
