10A Fuse 250V Cartridge Circuit Protection

Cartridge Overcurrent Protection for Equipment Repair

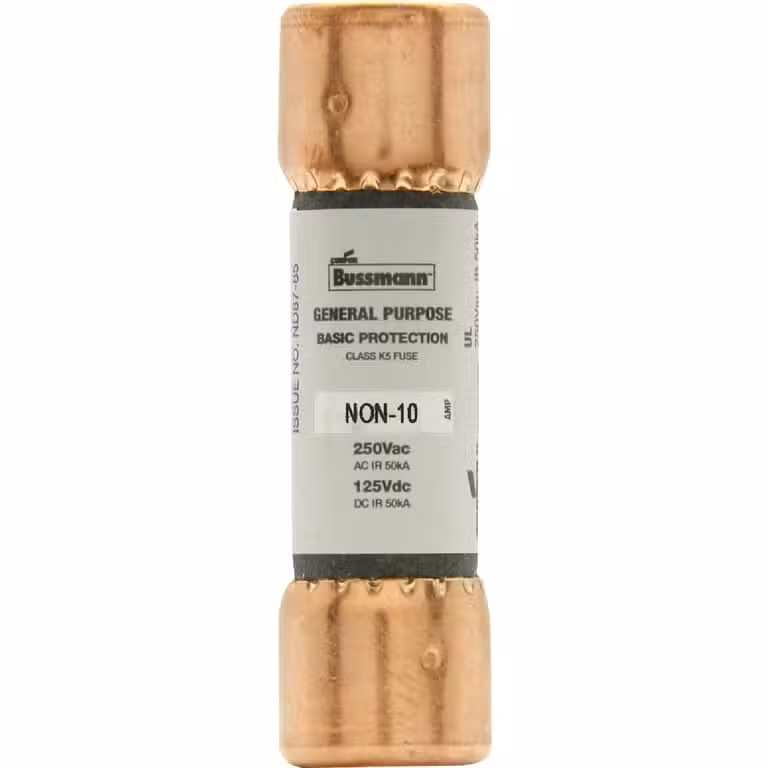

The 10A fuse is a cartridge-format overcurrent device rated at 10 amperes. It opens the circuit when current exceeds the element rating. Technicians fit it in panel holders or board clips on power rails, chargers, and appliance supplies.

Rated current defines the load the element carries continuously without opening. A 10 A unit suits circuits drawing roughly 8 A after derating. The voltage rating must equal or exceed the circuit voltage, and the breaking capacity must cover the prospective fault current at the installation point.

Fast-blow elements protect resistive loads and semiconductor devices. Time-lag elements absorb motor and transformer inrush without nuisance opening. Match the element characteristic to the load profile before substitution. Isolate the equipment and confirm the fault cause before fitting any replacement.

Key Features

• 10 A Continuous Rating
  The element carries a 10 ampere load and opens above its rated current.

• Cartridge Construction

  • Glass or ceramic body with metal end caps
  • Fits standard panel holders and board clips
  • Visible element on glass variants for quick inspection

• 250 V AC Class
  The typical voltage rating covers mains-powered equipment and power supply rails.

• Service Replacement Part
  A single unit restores protection after a verified overcurrent event.

• Compact Footprint
  The cartridge format fits dense power boards where blade fuses will not seat.

Specifications

What’s in the Box

• 1 x 10 A cartridge fuse

Why Choose This Fuse

• A defined 10 A rating simplifies stock holding for repeat repairs.

• The cartridge body seats in common holders without adapters.

• A glass body lets technicians inspect the element before testing.

• The 250 V class covers most single-phase equipment supplies.

• Single-unit supply suits maintenance spares and bench repair kits.

• Replacing a blown unit restores protection without board rework.

• The compact format fits tight power supply enclosures.
