Vention KGCB0 Cat.6 UTP 24-Port Keystone Patch Panel

Vention Cat.6 Patch Panel

The Vention Cat.6 Patch Panel serves as a high-density termination interface for Category 6 unshielded twisted pair (UTP) cabling systems. This 24-port rackmount component occupies 1U of vertical space in standard 19-inch equipment cabinets. It facilitates structured cabling by organizing horizontal cable runs into a centralized patch field. This unit supports data transfer rates up to 1000Mbps and operates at frequencies reaching 250MHz. The architecture ensures compatibility with existing Cat5e and Cat5 infrastructure while providing a migration path to Gigabit Ethernet performance. Consequently, it functions as a critical node in modern data center environments and telecommunications closets.

Key Features

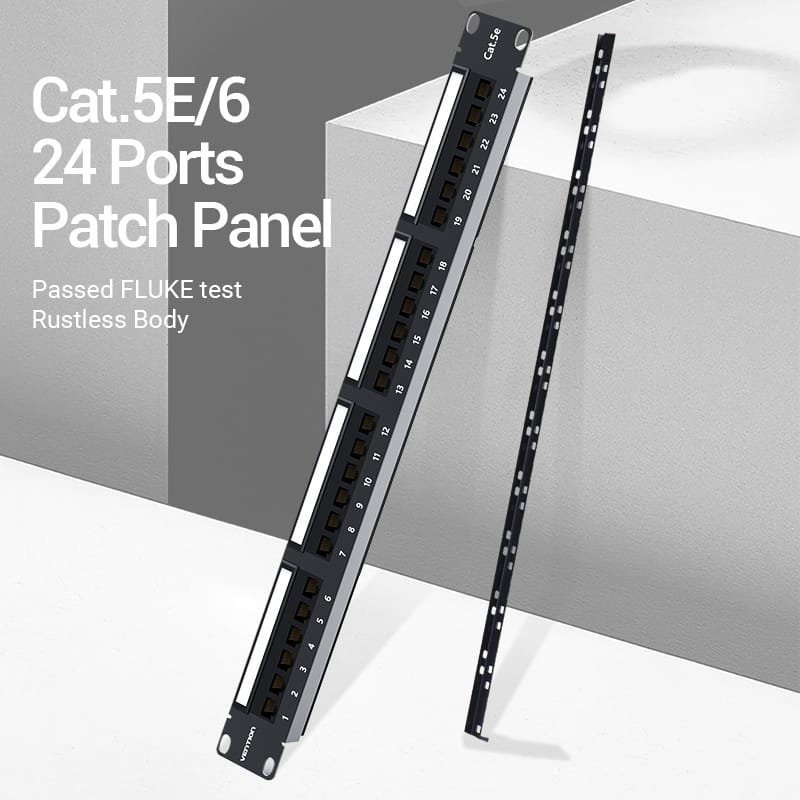

• High-Density Port Configuration
  This 1U frame supports 24 individual RJ45 ports to maximize rack space efficiency.

• Durable Construction Materials

  • Cold-rolled steel chassis for structural rigidity
  • Black powder-coated finish for corrosion resistance
  • Flame-retardant ABS plastic port housings

• Superior Signal Integrity
  The 50-micron gold-plated contacts minimize signal attenuation and prevent oxidation over time.

• Dual Wiring Standard Support
  Rear IDC blocks feature clear color-coded labeling for both T568A and T568B termination schemes.

Specifications

What’s in the Box

• Vention KGCB0 24-Port Patch Panel

• Rear Cable Management Bar

• M6 Rack Mount Screws and Nuts

• Nylon Cable Ties

Why Choose This Networking Interface

• The integrated rear management bar reduces mechanical stress on IDC termination points.

• This hardware meets TIA/EIA 568-B.2 standards for Near-End Crosstalk (NEXT) and Return Loss.

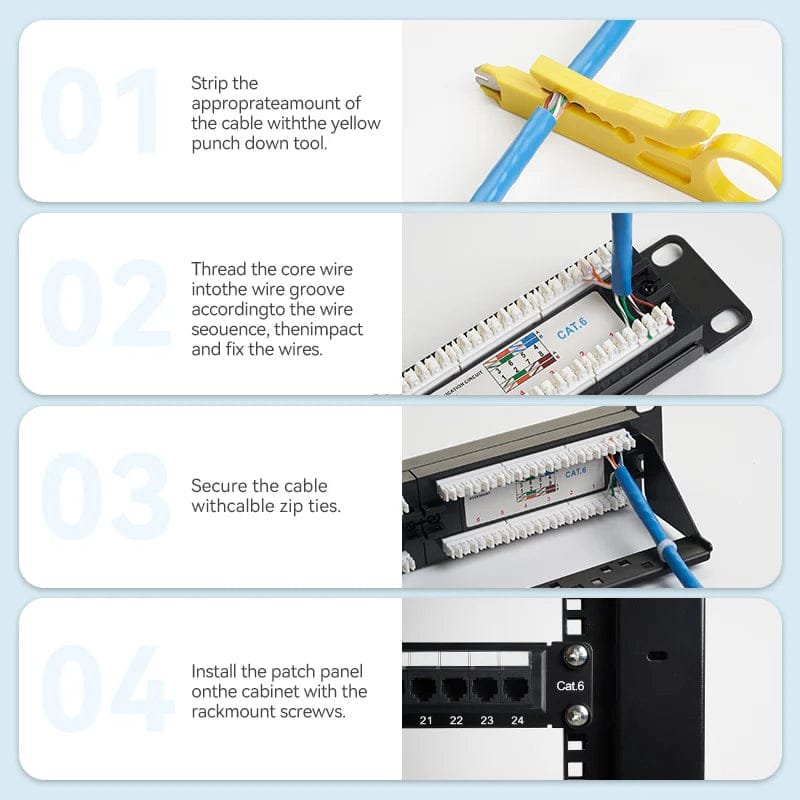

• The 180-degree termination angle simplifies cable access during high-volume punch-down operations.

• Gold-plated pins ensure low contact resistance of less than 20mΩ for consistent data transmission.
