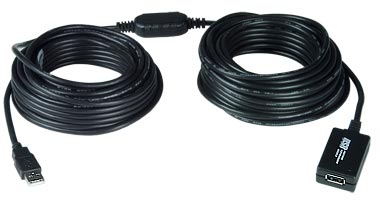

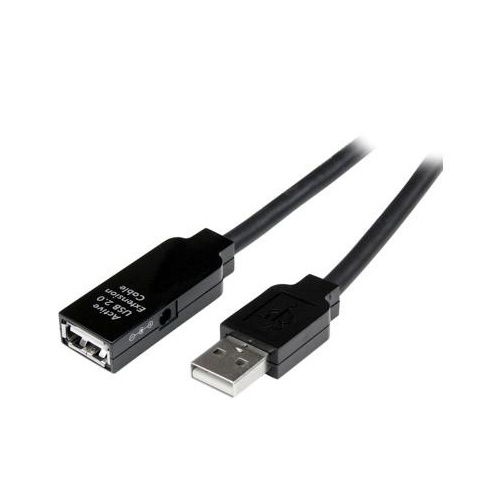

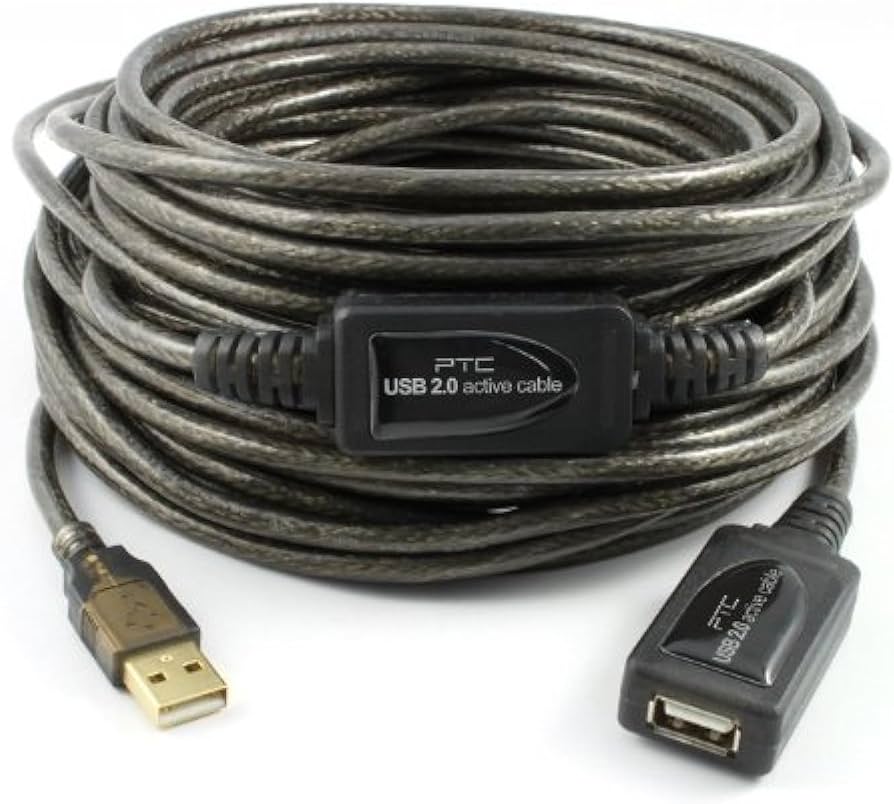

OEM USB 2.0 Active Extension Cable 20m

20m USB Extension

The OEM USB 2.0 Extension facilitates long-distance data transmission without signal degradation. It utilizes integrated active repeater circuits to regenerate signals. This 20-meter cable bypasses the standard five-meter limitation of passive USB wiring. It supports high-speed data transfers up to 480 Mbps. The architecture incorporates multiple signal amplifiers along the cable length. These chipsets ensure that voltage levels remain within the required threshold for peripheral recognition.

Key Features

• Active Signal Regeneration
  Integrated repeater chipsets boost the signal to maintain data integrity over the full 20-meter span.

• High-Speed Throughput
  The cable maintains the maximum 480 Mbps bandwidth defined by the USB 2.0 standard.

• Industrial Build Quality

  • Double shielding with foil and braid reduces EMI/RFI interference.
  • Tin-plated copper conductors ensure low electrical resistance.
  • Gold-plated connectors provide high corrosion resistance and signal clarity.

• Universal Compatibility
  This hardware works with Windows, macOS, and Linux systems without requiring proprietary drivers.

The cable assembly features high-grade copper conductors for maximum conductivity. Dual shielding layers reduce the impact of electromagnetic interference and radio frequency interference. This design suits environments with high electronic noise such as server rooms or factory floors. The female port includes a reinforcement housing to prevent physical damage during repeated connection cycles. The unit operates on bus power provided by the host controller. External power supplies are typically unnecessary for standard low-power peripherals. However, the active circuitry consumes a small portion of the 5V rail to drive the internal repeaters.

Network engineers use this solution to position interface devices far from the primary workstation. It serves effectively for remote surveillance cameras or specialized industrial sensors. The cable jacket consists of durable PVC material. It resists abrasion and maintains flexibility during installation in tight conduits. Each connector undergoes rigorous testing to ensure mechanical stability. The male-to-female configuration allows for easy integration into existing cable runs. Data integrity remains stable across the entire length. The repeaters manage timing and synchronization to prevent latency issues. High-speed peripherals like external hard drives or high-resolution webcams maintain consistent throughput. This cable provides a cost-effective alternative to USB-over-Ethernet extenders for distances up to 20 meters. It simplifies the physical layer by eliminating the need for intermediate hubs or power injectors.

The internal wiring uses 28 AWG for data lines and 24 AWG for power lines. This gauge selection minimizes resistance and power loss over the extended distance. The cable supports plug-and-play functionality for hot-swappable devices. It operates efficiently within standard industrial temperature ranges. The active repeater units are strategically placed to balance signal strength. This prevents the attenuation often found in lower-quality long-distance cables.

Specifications

What’s in the Box

• 1 x OEM 20m USB 2.0 Active Extension Cable

Why Choose 20m USB Extension

• Eliminates signal drop-off over long distances using internal amplification chipsets.

• Provides a simple plug-and-play deployment for remote IT peripherals.

• Reduces infrastructure costs by avoiding expensive USB-over-IP hardware.
