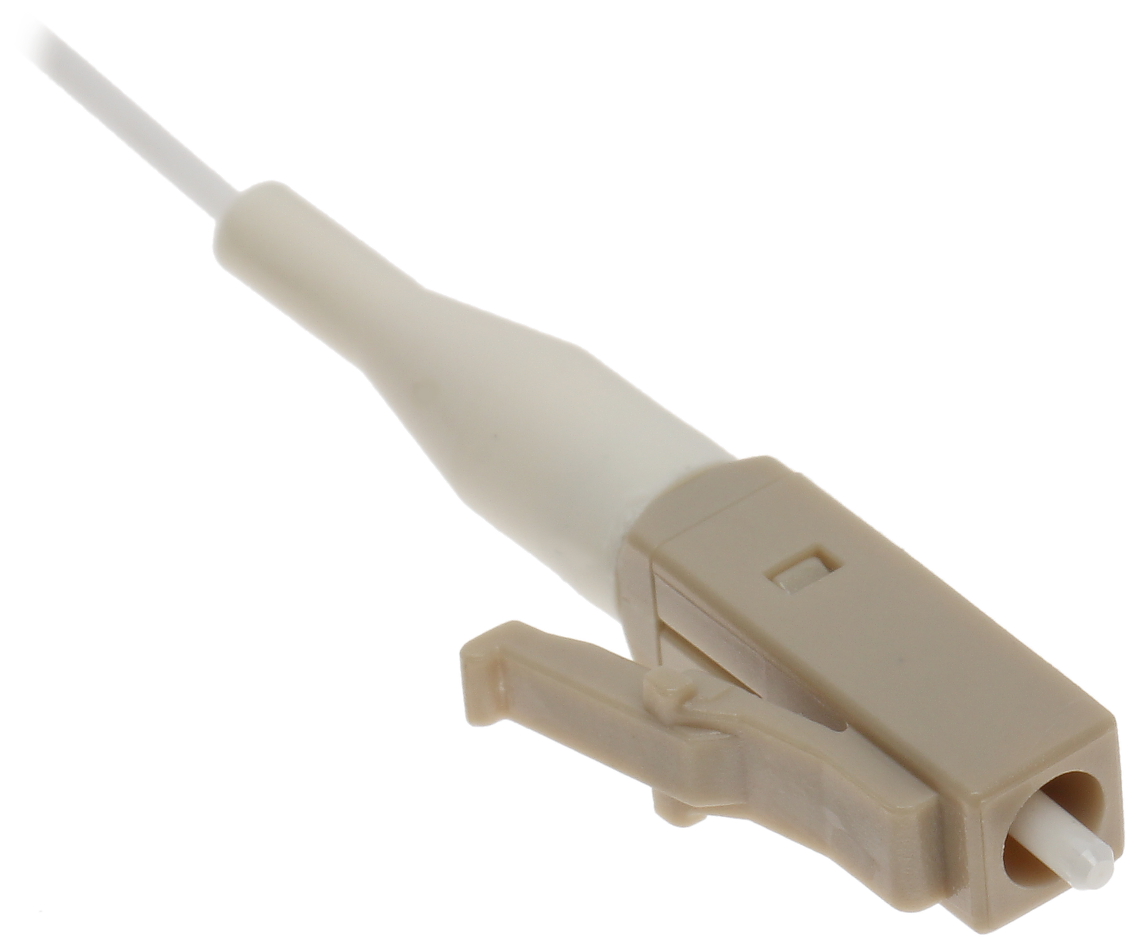

OEM LC Multimode 50/125µm 1m Pigtail

OEM LC 50/125µm Pigtail

The OEM LC Multimode Pigtail simplifies fiber termination in high-density networking environments. This 1-meter assembly features a factory-polished LC connector for consistent optical performance. It utilizes a 50/125µm multimode fiber core suitable for backbone and horizontal cabling. The 0.9mm tight-buffer jacket allows for efficient routing within splice trays and patch panels. Network engineers rely on these components for fusion splicing onto incoming multi-fiber cables. This method ensures a stable and low-loss connection between the fiber infrastructure and active hardware. Each unit undergoes rigorous testing to meet industry standards for insertion and return loss.

Key Features

• Optical Core Properties

  • The 50-micron core supports Gigabit Ethernet applications over short to medium distances.
  • A 125-micron cladding layer provides the necessary refractive index for signal containment.
  • OM2 performance grade ensures compatibility with legacy and modern multimode systems.

• Connector Engineering

  • The 1.25mm zirconia ceramic ferrule maintains axial alignment to minimize signal attenuation.
  • Small form factor LC housing increases port density in congested rack spaces.
  • Factory-polished PC finish reduces back-reflections for improved link stability.

• Jacket and Buffer Design

  • The 0.9mm outer diameter facilitates high-density management inside splice enclosures.
  • Low Smoke Zero Halogen materials meet strict safety requirements for indoor infrastructure.
  • However, the 0.9mm buffer requires careful handling during the stripping process to prevent fiber breakage.

• Mechanical Reliability

  • Pull strength ratings comply with Telcordia GR-326-CORE requirements.
  • Internal aramid yarn provides tensile strength during installation and routing.
  • Operating temperature range spans from -40°C to +75°C for diverse environmental conditions.

Specifications

What’s in the Box

• 1 x LC Multimode 50/125µm 0.9mm 1m Fiber Pigtail

• Individual Test Result Documentation

Why Choose OEM LC 50/125µm Pigtail

• Precision factory termination eliminates the performance variability associated with field-installed connectors.

• The small form factor LC design effectively doubles the fiber density in standard 1U patch panels.

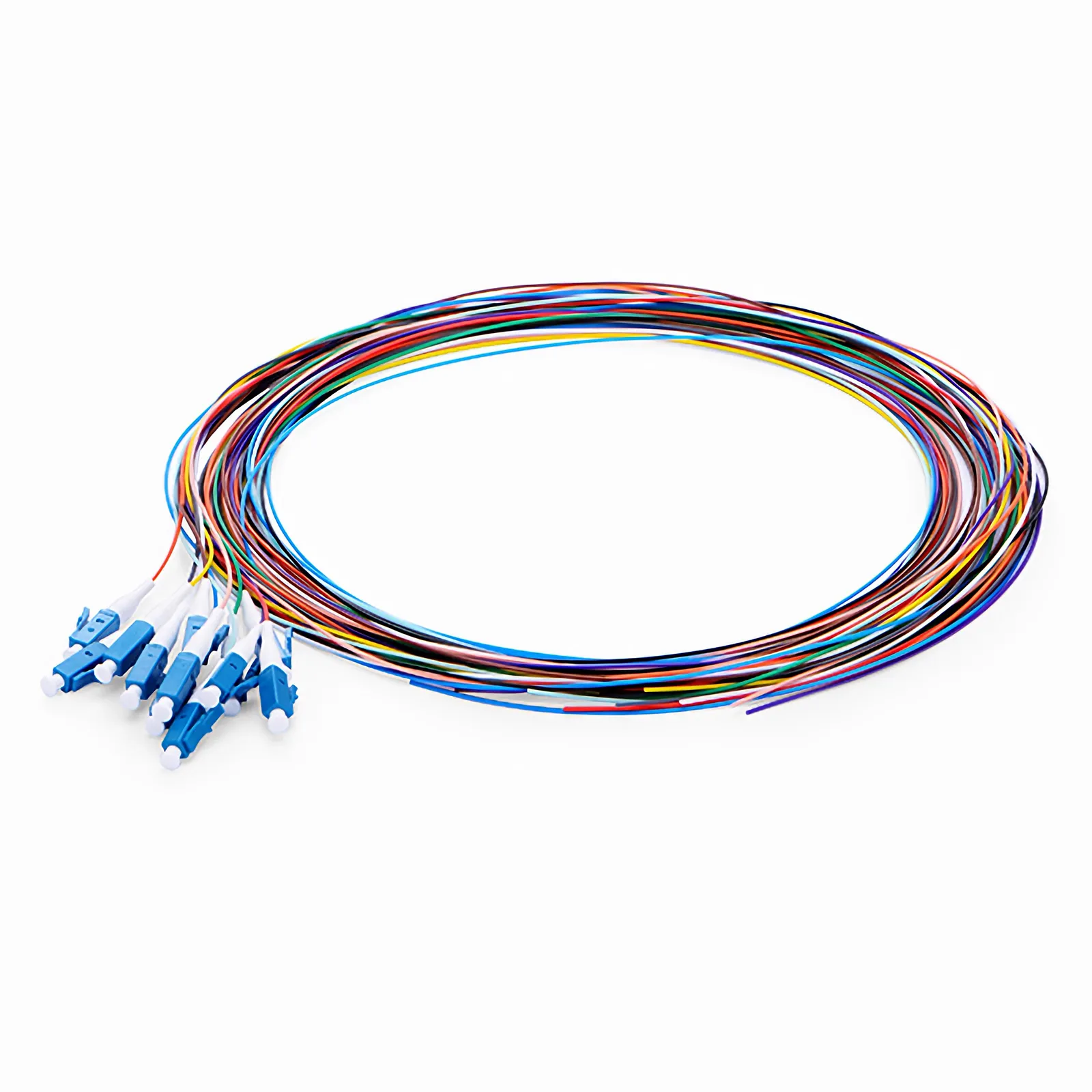

• Color-coded 0.9mm buffers simplify fiber identification and organization during complex fusion splicing tasks.

• LSZH jacket construction ensures compliance with modern fire safety regulations for commercial building installations.
