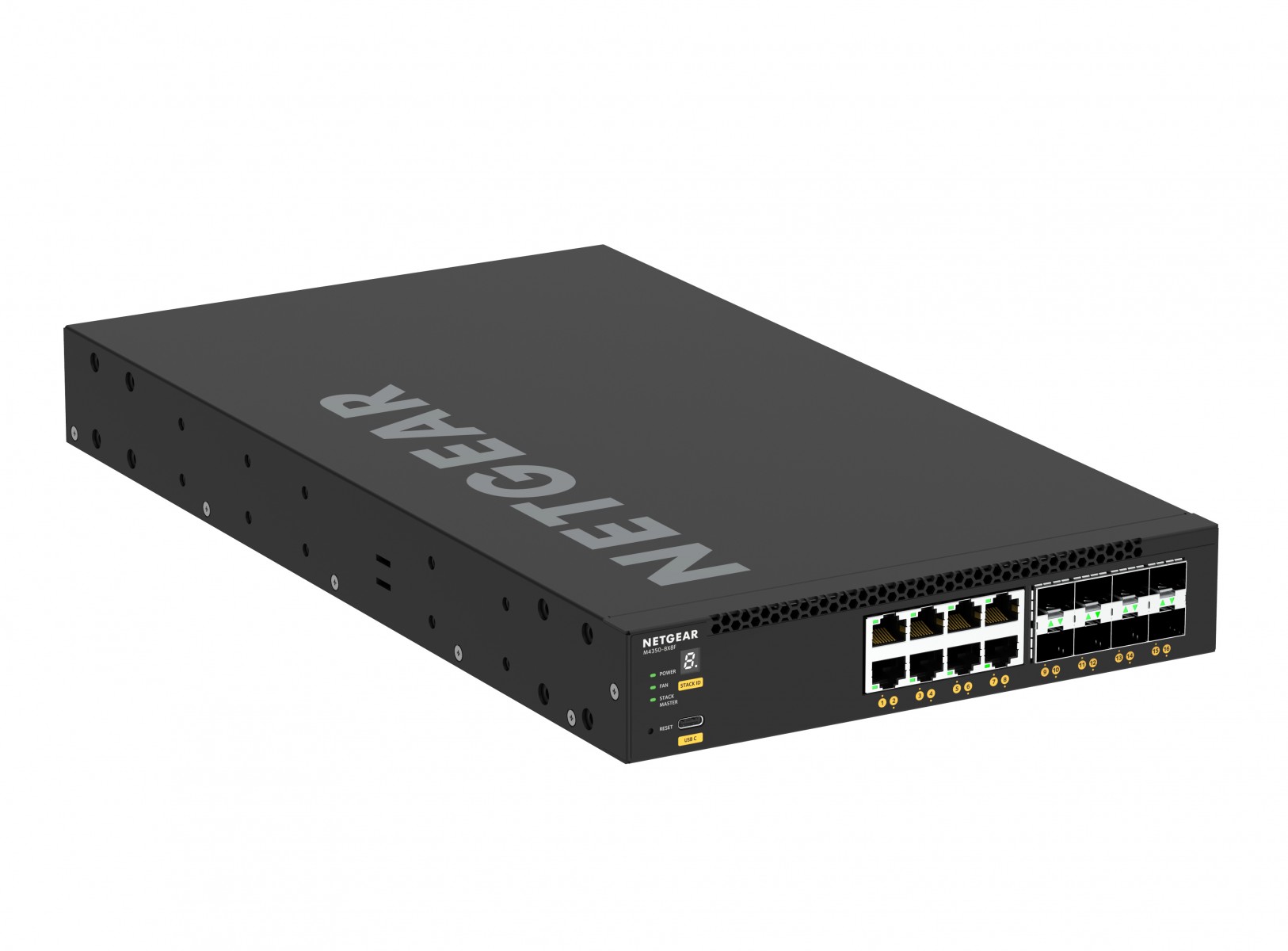

NETGEAR XSM4316-100NES M4350-8X8F MANAGED SWITCH
The NETGEAR M4350-8X8F (XSM4316-100NES) is a high-performance, AV-over-IP optimized Layer 3 Managed Switch engineered for enterprise networks, professional AV deployments, data centers, and high-density distribution environments. Featuring 8 Multi-Gig/10GBASE-T ports and 8 10GBASE-X SFP+ uplinks, the M4350 series delivers exceptional throughput, non-stop forwarding, and seamless failover through Virtual Chassis stacking.
Key Features
-
16× 10G Ports (8× Multi-Gig RJ45 + 8× SFP+)
Supports 10GBASE-T (100/1000/2.5G/5G/10G) and 10GBASE-X SFP+ fiber uplinks. -
High-Performance Switching Fabric
320 Gbps switching capacity and 238 Mpps forwarding rate for demanding enterprise workloads. -
Advanced Layer 3 Routing
Supports static routing, policy-based routing, OSPF, RIP v1/v2, and OSPFv3 for IPv6. -
Virtual Chassis Stacking
Enables non-stop forwarding (NSF) and hitless failover for mission-critical uptime. -
Optimized for Pro AV
NETGEAR IGMP Plus™, AV UI, and Engage Controller greatly simplify AV-over-IP installations. -
Robust Security Architecture
DHCP snooping, DoS protection, ACLs, MAC filtering, IEEE 802.1X authentication, and radius/TACACS+. -
Flexible Deployment Design
Half-width, 1U rackmount form factor with front-to-back airflow and redundant layout options. -
High-Capacity Internal Power Supply
240W integrated PSU ensuring reliable continuous operation. -
Fully Managed Enterprise Features
QoS, VLANs (up to 4093), link aggregation, MLD snooping, GVRP, and advanced multicast control.
Specifications
| Feature | Specification |
|---|---|
| Model | NETGEAR M4350-8X8F (XSM4316-100NES) |
| Switch Type | Fully Managed |
| Layer | Layer 3 |
| RJ45 Ports | 8 × 10G (100/1000/2.5G/5G/10G) |
| SFP+ Ports | 8 × 10GBASE-X |
| Stacking Support | Yes (Virtual Chassis) |
| Switching Capacity | 320 Gbps |
| Forwarding Rate | 238.08 Mpps |
| MAC Table | 16,000 entries |
| Packet Buffer | 32 MB |
| Jumbo Frame Support | 12,000 bytes |
| Routing Protocols | RIP v1/v2, OSPF, OSPFv2, OSPFv3 |
| Management Protocols | SNMP v1/v2/v3, Web UI, Engage Controller |
| QoS | Yes (SPQ, WRED) |
| VLAN Support | Up to 4093 VLANs (Voice VLAN, MAC-based VLAN, Private VLAN) |
| Security | 802.1X, ACLs, DHCP Snooping, DoS Protection, BPDU Guard |
| Multicast Features | IGMP, IGMP snooping, MLD snooping |
| Memory | 2 GB DDR4 + 512 MB Flash |
| Processor | ARM Cortex-A57 @ 1.8 GHz |
| Airflow | Front-to-back |
| Power Supply | Internal 240W PSU |
| Power Consumption | 81 W (typical) |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 220 × 400 × 43.2 mm |
| Weight | 4.05 kg |
| Compliance | BSMI, CCC, CE, FCC, LVD |
| Mounting | 1U Rackmount (Half-Width), Kit Included |
What’s in the Box
-
1 × NETGEAR M4350-8X8F Managed Switch (XSM4316-100NES)
-
1 × Rack Mount Kit
-
1 × AC Power Cable
-
1 × USB Type-C Cable
-
Quick Start Guide
-
Regional Power Plugs (EU, UK, NA)
Why Choose NETGEAR M4350-8X8F
-
Purpose-built for Pro AV-over-IP, enterprise networks, and high-density distribution.
-
Combines 10G Multi-Gig copper and 10G SFP+ uplinks for maximum flexibility.
-
Ultra-reliable with non-stop forwarding, stacking, and redundant deployment capabilities.
-
High-end Layer 3 features including dynamic routing for scalable enterprise architectures.
-
AV User Interface + Controller support significantly reduces installation time.
-
Designed for modern data centers and AV racks with front-to-back cooling.
