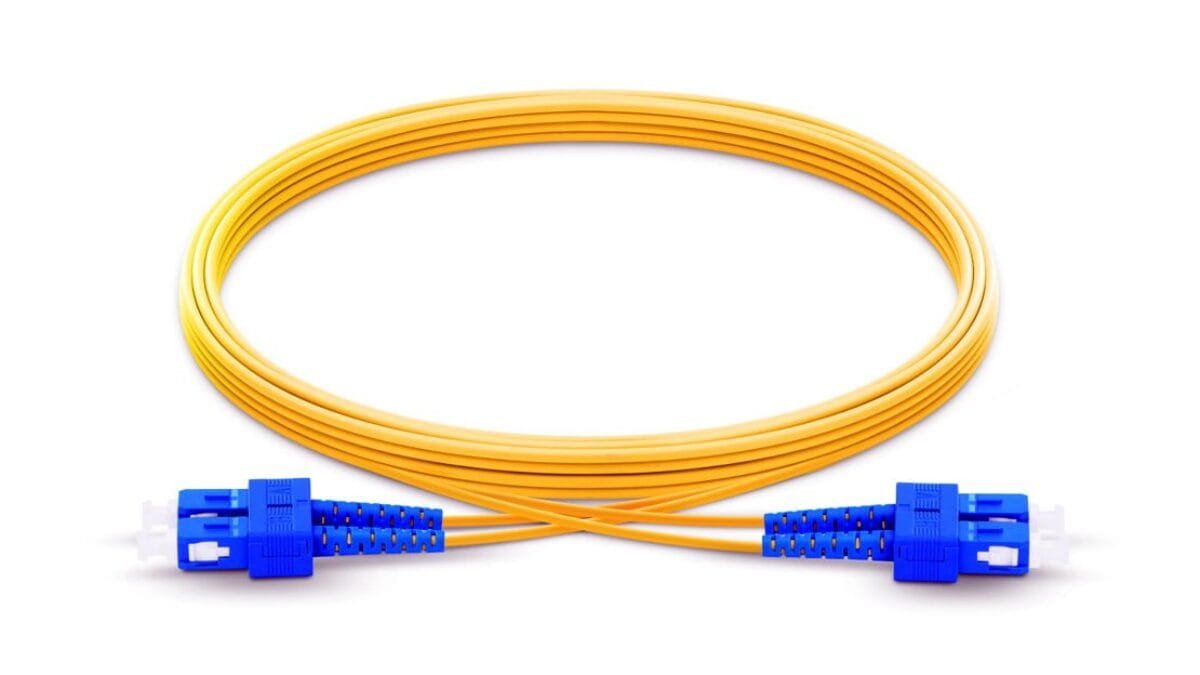

Lightwave SC UPC Fiber Patch Cord Single Mode Duplex 3M

Lightwave SC UPC Duplex Cable

The Lightwave SC UPC Patch Cord (LW-PC-SCU-SCU-DX-SM-3M) facilitates high-speed data transmission in enterprise networking and telecommunications infrastructure. This single-mode optical fiber assembly utilizes OS2 9/125μm glass to ensure reliable connectivity over long distances. The duplex configuration allows for simultaneous bi-directional communication between network nodes. Consequently, this leads to efficient throughput in high-density data center environments. The cable features a Low Smoke Zero Halogen (LSZH) jacket to meet stringent fire safety requirements in commercial buildings.

Key Features

• Low Insertion Loss
  The high-quality ceramic ferrules ensure precise core alignment to maintain signal integrity and minimize power loss across the link.

• LSZH Safety Jacket

  • Emits limited smoke and no halogen when exposed to high heat sources.
  • Suitable for installation in plenums and poorly ventilated areas.

• UPC Polish Connectors
  Ultra Physical Contact polishing reduces back-reflection to improve return loss performance in sensitive optical equipment.

Specifications

What’s in the Box

• 1 x Lightwave 3M SC UPC to SC UPC Duplex Single Mode Fiber Patch Cord
• Test Result Certification

Why Choose This Optical Solution

• The push-pull coupling mechanism of the SC connector allows for rapid deployment in high-density rack environments.
• Each assembly undergoes rigorous factory testing for insertion loss and return loss to ensure out-of-the-box reliability.
• Single-mode fiber supports significantly higher bandwidth over longer distances compared to multi-mode alternatives.
• The 3-meter length provides sufficient slack for cross-connects within standard 19-inch server cabinets.
• Therefore, network engineers can maintain stable optical budgets across the entire network fabric.
