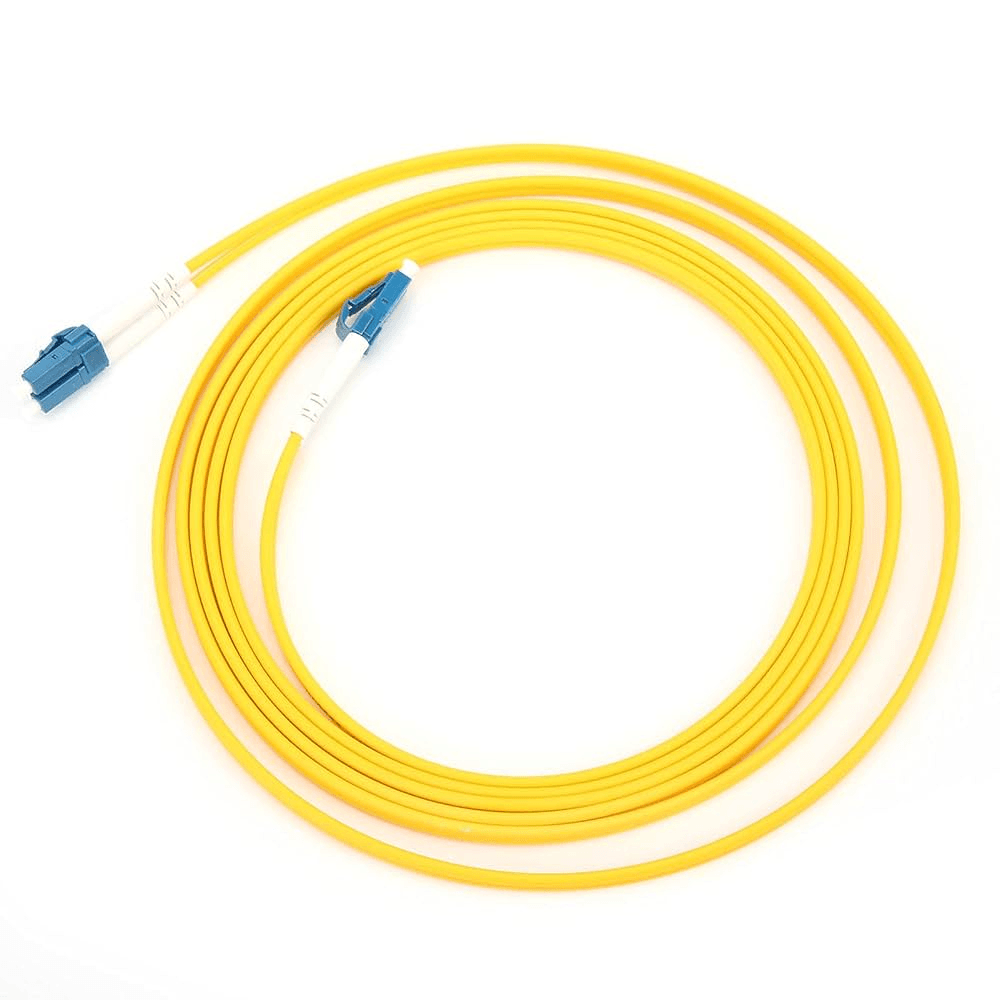

Lightwave OM2 Duplex Patch Cord
The Lightwave LC-LC Fiber Patch cord serves as a critical interconnect for high-speed data transmission within enterprise network environments. This optical assembly features LC UPC to LC UPC connectors on a 1-meter multimode fiber strand. It utilizes OM2 50/125 micrometer glass core architecture to maintain signal integrity over short and medium distances. The duplex configuration enables simultaneous bidirectional communication required for modern switch-to-server uplinks. Consequently, this component integrates seamlessly into high-density patch panels and optical distribution frames.
Key Features
-
Precision LC-UPC Connectors
The 1.25mm ceramic ferrules provide low insertion loss and high return loss for stable optical performance. -
OM2 Multimode Core
The 50/125µm fiber core supports 1 Gigabit Ethernet applications up to 550 meters at 850nm wavelengths. -
LSZH Safety Jacket
Low Smoke Zero Halogen construction minimizes toxic gas emission during combustion in poorly ventilated areas. -
Duplex Configuration
- Zip-cord design allows for easy separation of fiber strands.
- Polarity management is simplified through standard clip connectors.
Specifications
| Feature | Specification |
|---|---|
| Connector Type | LC UPC to LC UPC |
| Fiber Mode | Multimode OM2 50/125µm |
| Cable Length | 1 Meter |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Operating Temp | -20°C to +70°C |
What’s in the Box
-
1 x Lightwave LC-LC OM2 Duplex Fiber Patch Cord (1m)
-
Factory Test Report and Protective Dust Caps
Why Choose This Cable
-
The small form factor LC connectors increase port density by 50% compared to traditional SC connectors. Additionally, the latching mechanism prevents accidental disconnects in vibrating environments.
-
OM2 glass provides a cost-effective solution for legacy 1Gbps infrastructure. Therefore, procurement managers can maintain high throughput without the premium cost of OM4 optics for short runs.
-
Compliance with LSZH standards ensures the safety of personnel and equipment in the event of a fire. Furthermore, the 1-meter length minimizes cable slack, which improves airflow and thermal management within server cabinets.
