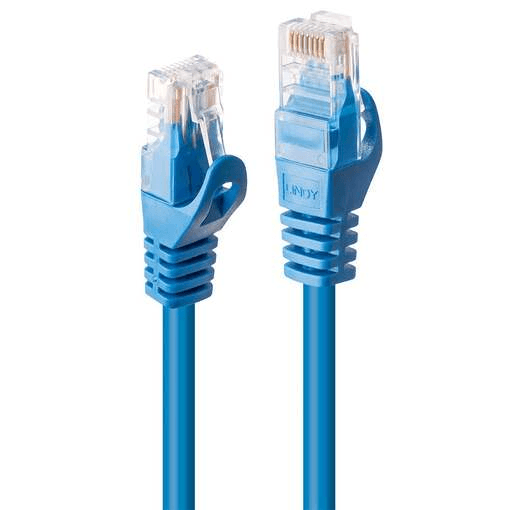

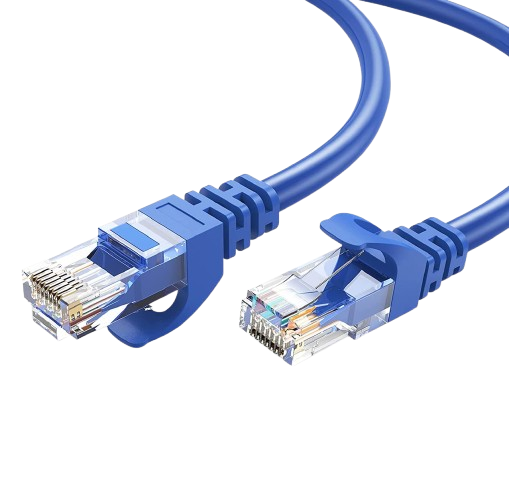

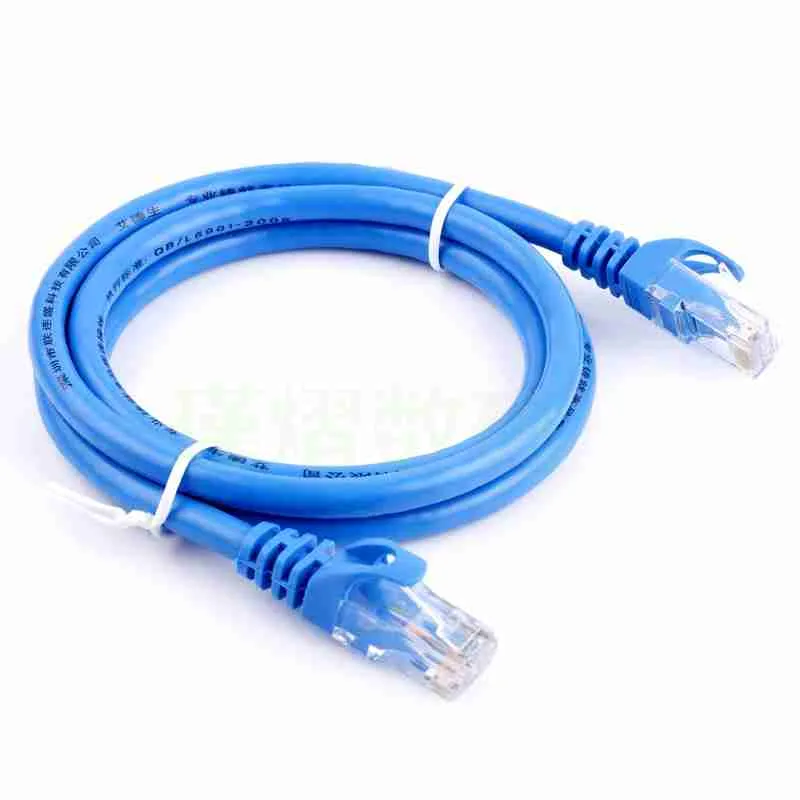

Easenet Cat6 UTP 1M RJ45 Patch Cord

Easenet 1M Patch Cord

The Easenet Cat6 Patch Cord serves as a critical component in high-density networking environments. This one-meter Ethernet jumper facilitates seamless connections between active hardware and structured cabling systems. It operates at frequencies up to 250 MHz to support 1000BASE-T applications. The construction utilizes high-grade materials to ensure signal integrity across the entire link. Each unit undergoes rigorous testing to meet industry-standard performance benchmarks. Network engineers rely on this specific length for efficient rack management and reduced cable clutter.

Key Features

• High-Performance Conductors
  The cable features 24 AWG stranded bare copper wires to provide maximum conductivity and flexibility.

• Signal Integrity Optimization

  • Internal PE cross-separator reduces Near-End Crosstalk (NEXT).
  • Twisted pair geometry remains consistent throughout the cable length.
  • Unshielded design eliminates the need for complex grounding in standard environments.

• Mechanical Durability
  Molded snagless boots protect the RJ45 locking tabs from damage during frequent insertion and removal cycles.

• Connector Engineering

  • 50-micron gold-plated contacts prevent oxidation and maintain low contact resistance.
  • Polycarbonate housing provides high impact resistance for the RJ45 termination.
  • Integrated strain relief prevents wire fatigue at the connector junction.

This Category 6 interconnect complies with ANSI/TIA-568.2-D and ISO/IEC 11801 standards. These specifications define the electrical performance requirements for twisted-pair telecommunications cabling. Additionally, the PVC jacket meets RoHS environmental safety requirements for indoor installations. The cable supports Power over Ethernet (PoE) applications including IEEE 802.3af and 802.3at. This allows the transmission of both data and power to compatible devices like VoIP phones or wireless access points. However, users should verify total power budget constraints when deploying high-density PoE configurations. The 1-meter length minimizes insertion loss compared to longer horizontal cabling runs. This makes it an efficient choice for cross-connects in telecommunications rooms. The jacket material remains pliable in temperatures ranging from -20°C to +60°C. This thermal stability ensures consistent performance in climate-controlled server rooms.

Specifications

What’s in the Box

• 1 x Easenet 1M Cat6 UTP Patch Cord

Why Choose Easenet 1M Patch Cord

• Superior copper purity ensures minimal packet loss during high-speed data transfers.

• The snagless design reduces downtime caused by broken connector clips in dense racks.

• Compliance with global networking standards guarantees interoperability with all RJ45-compliant hardware.

• Optimized 1-meter length prevents excessive slack that restricts airflow in server cabinets.
