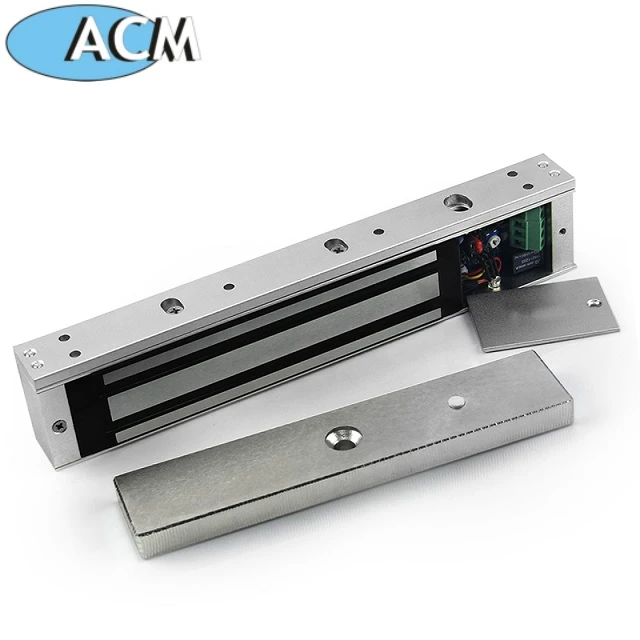

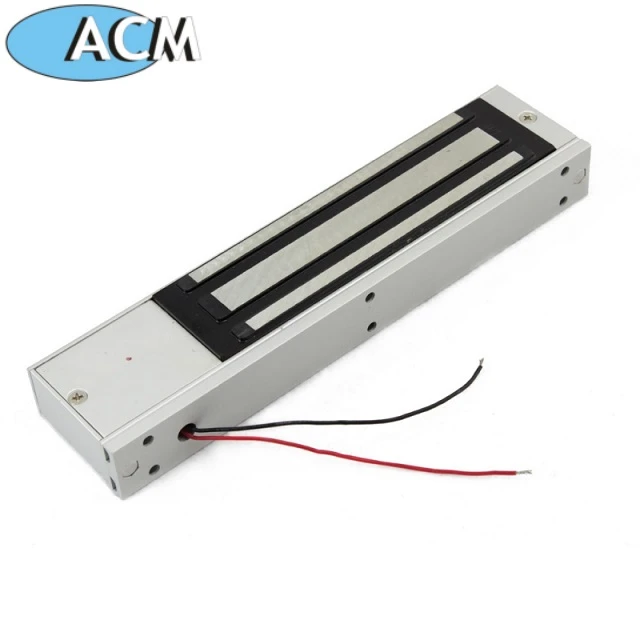

ACM-Y280S 280kg Magnetic Lock MAGLOCK

ACM-Y280S Magnetic Lock

The ACM-Y280S Magnetic Lock provides a consistent 280kg (600lbs) holding force for high-security access control environments. This electromagnetic device operates on the principle of electromagnetic induction to secure doors without any moving mechanical components. Consequently, this design significantly reduces mechanical wear and enhances the long-term reliability of the security system. This hardware functions as a fail-safe device, meaning it requires continuous power to remain locked. Therefore, it ensures that doors unlock automatically during power outages or fire alarm triggers to facilitate emergency egress.

Key Features

• High Holding Force
  The electromagnetic coil generates a powerful bond capable of resisting up to 280kg of physical pressure.

• Electrical Protection Mechanism

  • Built-in Metal Oxide Varistor (MOV) prevents back-EMF damage.
  • Reverse current protection shields the access controller circuitry.

• Dual Voltage Support
  The internal circuitry supports both 12VDC and 24VDC power inputs for installation flexibility.

Specifications

What’s in the Box

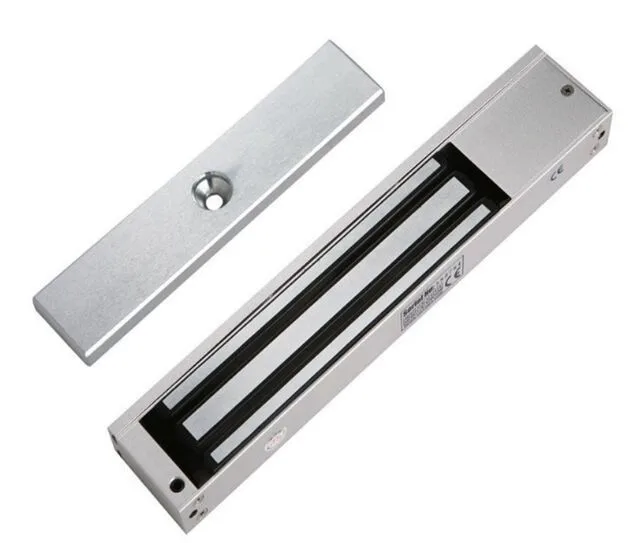

• Electromagnetic Lock Body
• Armature Plate
• Mounting Hardware Kit (Screws and Allen Key)
• Drilling Template

Why Choose This Magnetic Lock

• The anodized aluminum housing provides superior corrosion resistance for long-term deployment in various climates.
• Zero residual magnetism ensures the armature plate releases instantly when the controller cuts power to the unit.
• Integration with biometric readers and exit buttons remains seamless due to standard dry contact signal outputs.
• The absence of moving parts eliminates the need for periodic lubrication or mechanical maintenance schedules.
