Vention KPFH0 M.2 NGFF SSD Enclosure USB 3.1 Gen 2 Type-C

Vention M.2 Enclosure

The Vention M.2 NGFF Enclosure provides a robust solution for converting internal SATA-based M.2 SSDs into portable external storage units. It utilizes a USB 3.1 Gen 2 Type-C interface to ensure high-speed data transmission between the drive and the host machine. This device supports B-Key and B+M Key NGFF SSDs. However, it does not support NVMe (PCIe) protocols. The aluminum alloy construction facilitates efficient thermal dissipation during heavy read and write operations. Consequently, the drive maintains optimal performance temperatures even under sustained load.

Key Features

• High-Speed Data Transfer
  The internal bridge chip supports transfer rates up to 5Gbps via the USB 3.1 Gen 2 Type-C interface.

• Advanced Thermal Management

  • The aluminum alloy housing acts as a passive heatsink for the internal drive.
  • Ventilation pathways ensure consistent airflow to prevent thermal throttling during large file transfers.

• Broad Drive Compatibility

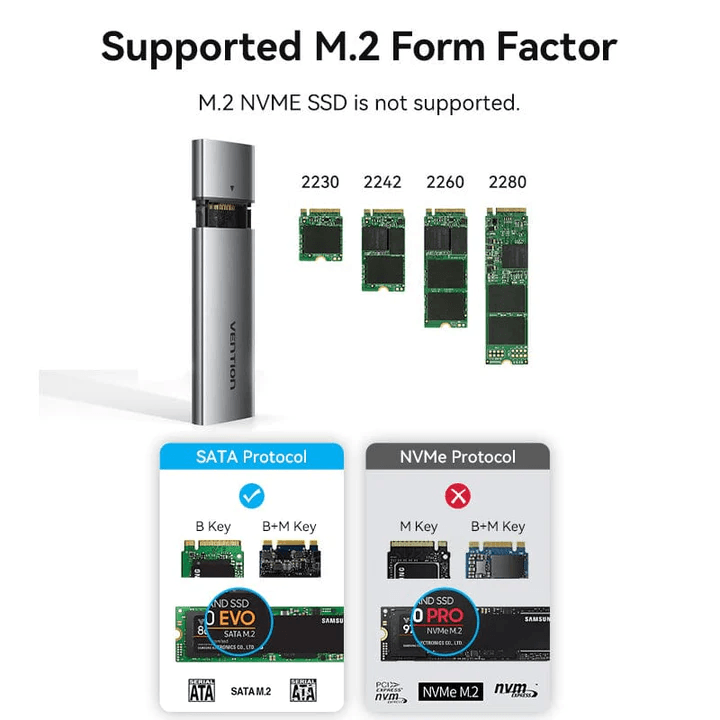

  • Supports four standard M.2 form factors including 2230, 2242, 2260, and 2280 sizes.
  • Compatible with B-Key and B+M Key SATA NGFF solid state drives for maximum flexibility.

Specifications

What’s in the Box

• Vention KPFH0 M.2 NGFF SSD Enclosure
• USB-C to USB-C Data Cable
• Screwdriver and Mounting Hardware
• User Documentation

Why Choose This Device

• The integrated chipset supports UASP and TRIM commands to optimize throughput and SSD longevity.
• A built-in LED indicator provides real-time visual feedback regarding power status and data activity.
• The unit features an auto-sleep function that activates after ten minutes of inactivity to conserve power.
• Bus-powered architecture eliminates the need for external power adapters during field operations.
• The compact footprint allows network engineers to carry essential diagnostic tools and backups easily.
