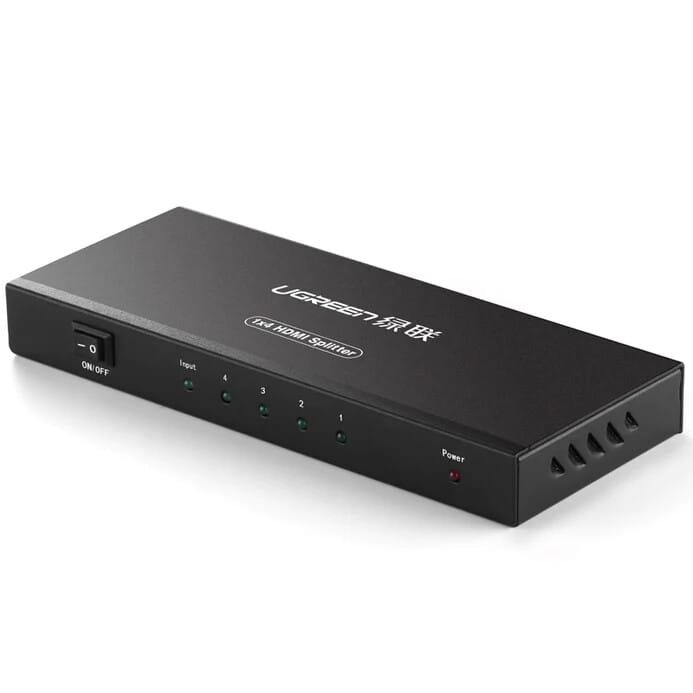

Ugreen UG-40202UK 1×4 HDMI Splitter 4K@30Hz

HDMI Splitter 1×4

The Ugreen 1×4 HDMI Splitter facilitates the distribution of a single HDMI video source to four simultaneous display outputs. This hardware solution maintains signal synchronization across all connected monitors without introducing latency. It utilizes the CM620 internal chipset to manage high-bandwidth data streams effectively. Therefore, it serves as a reliable interface for digital signage, surveillance monitoring, and commercial presentation environments. The device supports Ultra HD resolutions and standard 3D video formats. Consequently, it ensures high-fidelity visual output across multiple workstations or public displays.

Key Features

• High Resolution Support
  This hardware supports video resolutions up to 3840×2160 at a 30Hz refresh rate.

• Signal Amplification and Equalization

  • Internal booster extends transmission distances up to 30 meters total.
  • Input cable length supports up to 15 meters using AWG26 HDMI cables.
  • Output cable length supports up to 15 meters at 1080p resolution.

• HDCP Compliance
  The unit is fully HDCP 1.4 compliant for secure content playback across all ports.

• Advanced Audio Pass-through

  • Supports uncompressed LPCM 7.1 audio signals.
  • Compatible with compressed formats including DTS-HD and Dolby TrueHD.

Specifications

What’s in the Box

• Ugreen 40202 HDMI Splitter Unit
• DC 5V Power Adapter (UK Standard)
• User Manual

Why Choose This HDMI Distributor

• The zinc alloy housing provides superior heat dissipation for continuous 24/7 operation.
• Integrated EDID management ensures the source device recognizes the optimal resolution for all displays.
• Plug-and-play architecture requires no software installation or complex configuration for deployment.
• Gold-plated connectors reduce signal oxidation and maintain low contact resistance over time.
• LED indicators provide immediate visual confirmation of power status and active output links.
