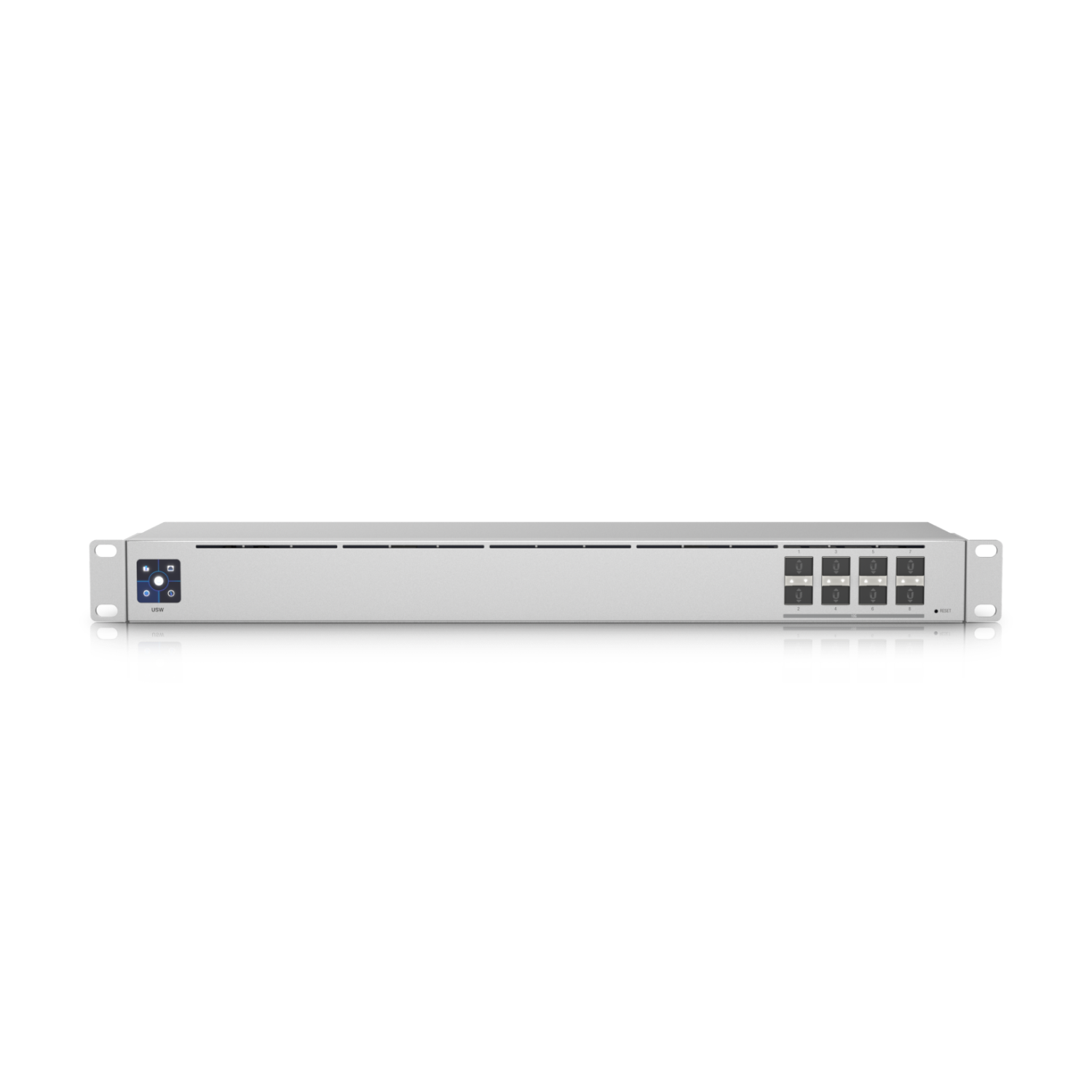

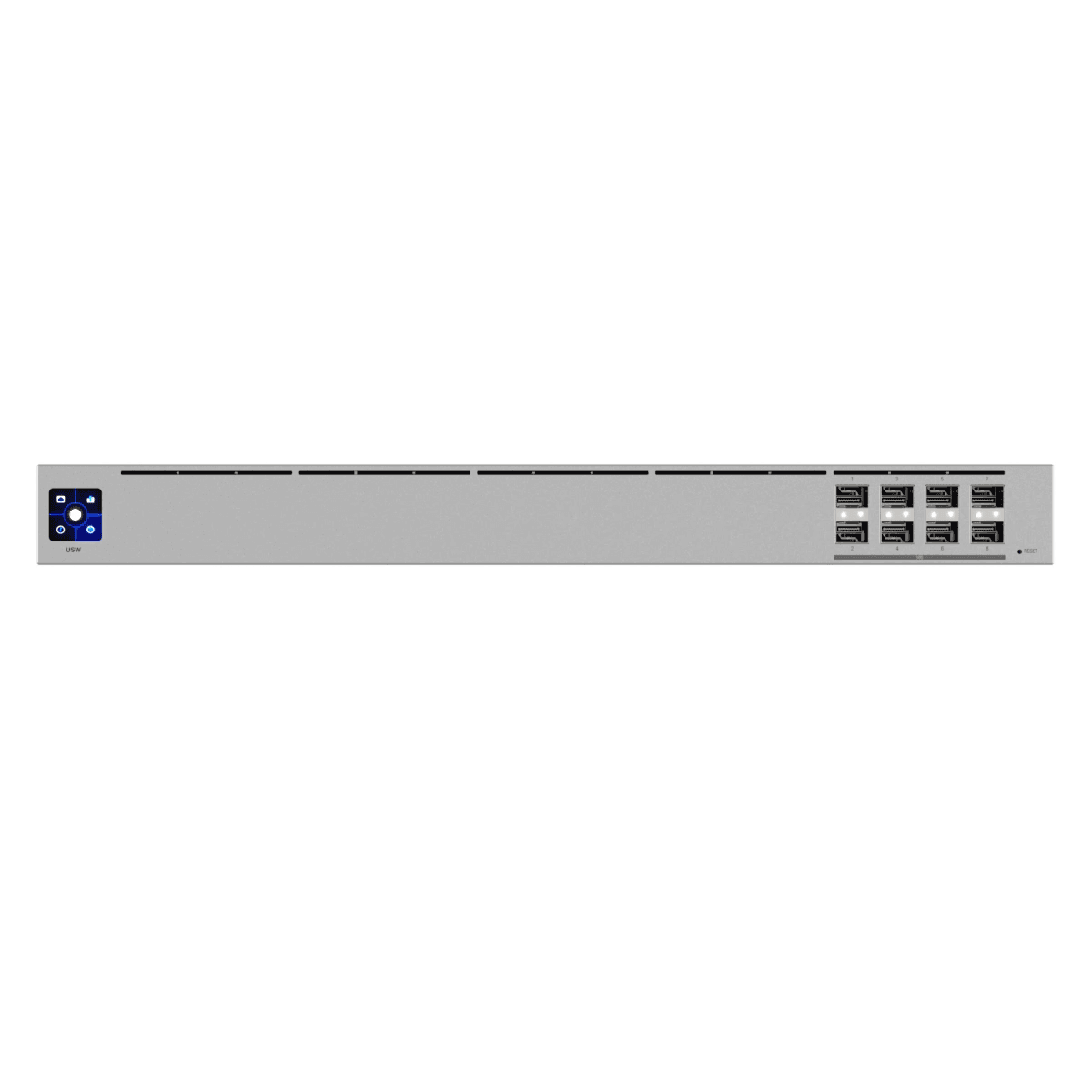

Ubiquiti UniFi Switch Aggregation USW-Aggregation
Enhance your enterprise network with the Ubiquiti USW-Aggregation, an 8-port Layer 2 aggregation switch engineered for high-speed 10G SFP+ connectivity. Ideal for enterprise campuses, data centers, and high-capacity networks, this compact rack-mountable switch provides 160 Gbps switching capacity and advanced Layer 2 features.
Key Features
-
High-Speed Aggregation
8 × 10G SFP+ ports designed for enterprise and data center uplinks. -
Enterprise Performance
160 Gbps switching capacity, 80 Gbps non-blocking throughput, and 119 Mpps forwarding rate. -
Advanced Layer 2 Features
Includes VLAN support, ACLs, LACP, QoS, IGMP snooping, DHCP snooping, and 802.1X control. -
Compact Rack-Mountable Design
1U form factor with durable SGCC steel chassis and integrated 1.3” touchscreen LCM display. -
Energy Efficient
Low maximum power consumption of only 36W, making it ideal for continuous operation.
Specifications
| Feature | Specification |
|---|---|
| Form Factor | Rack mount (1U) |
| Dimensions | 442 × 120 × 43.7 mm (17.4 × 4.7 × 1.7″) |
| Weight | 2.6 kg (5.8 lb) without brackets |
| Ports | 8 × 10G SFP+ |
| Switching Capacity | 160 Gbps |
| Non-Blocking Throughput | 80 Gbps |
| Forwarding Rate | 119 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| Packet Buffer Size | 1.5 MB |
| Max Power Consumption | 36W (with SFP modules) |
| Power Supply | Internal AC/DC, 36W |
| Power Input | 100–240V AC, 50/60 Hz |
| Operating Temperature | -5 to 40 °C (23 to 104 °F) |
| Operating Humidity | 10–90% non-condensing |
| Enclosure Material | SGCC steel |
| Management | UniFi Network (v5.14.12 and later) |
| Certifications | CE, FCC, IC, Anatel, NDAA compliant |
Why Choose Ubiquiti USW-Aggregation
-

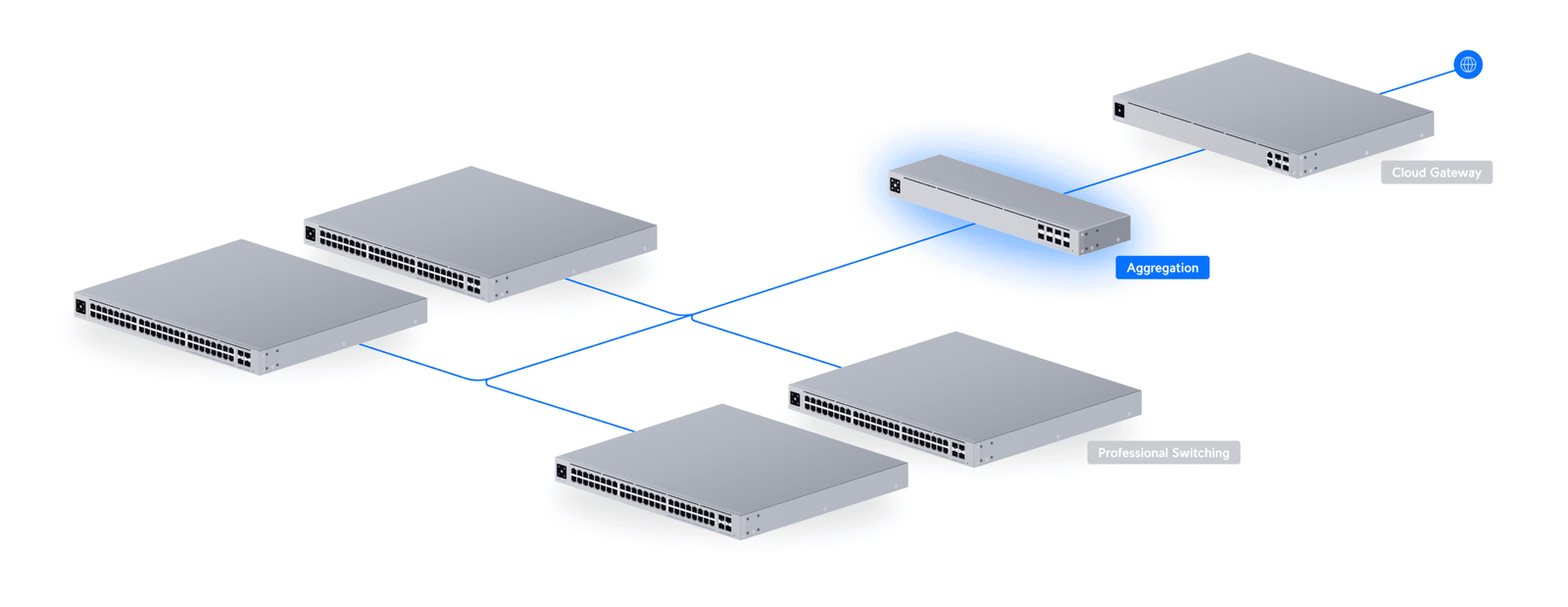

Designed for enterprise and campus aggregation
-
Supports high-speed 10G SFP+ networking
-
Compact 1U rack-mountable switch with touchscreen display
-
Advanced Layer 2 management features for security and efficiency
-
Energy-efficient with just 36W max power draw
