Ubiquiti UFiber OLT 8-Port GPON Optical Line Terminal
Original price was: KSh 130,000.00.KSh 122,000.00Current price is: KSh 122,000.00.
Ubiquiti UFiber OLT 8-Port GPON Optical Line Terminal
| GPON Ports | 8× SFP OLT Ports |
| Uplink | 1× 1G/10G SFP+ |
| Clients | Up to 1,024 (128 per port) |
| Power | 100–240VAC / 24VDC |
| Speed | 2.488 Gbps Down / 1.244 Gbps Up |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

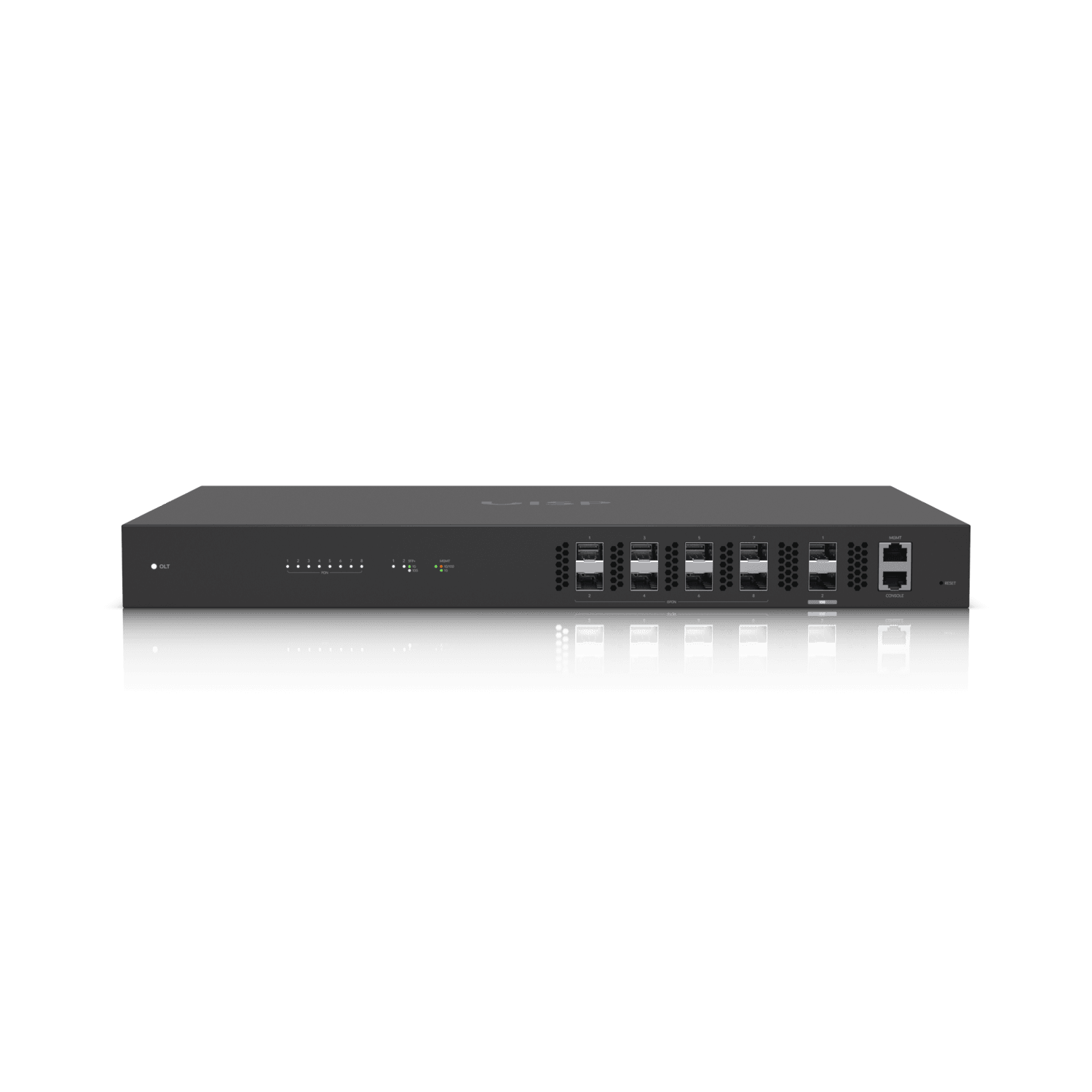

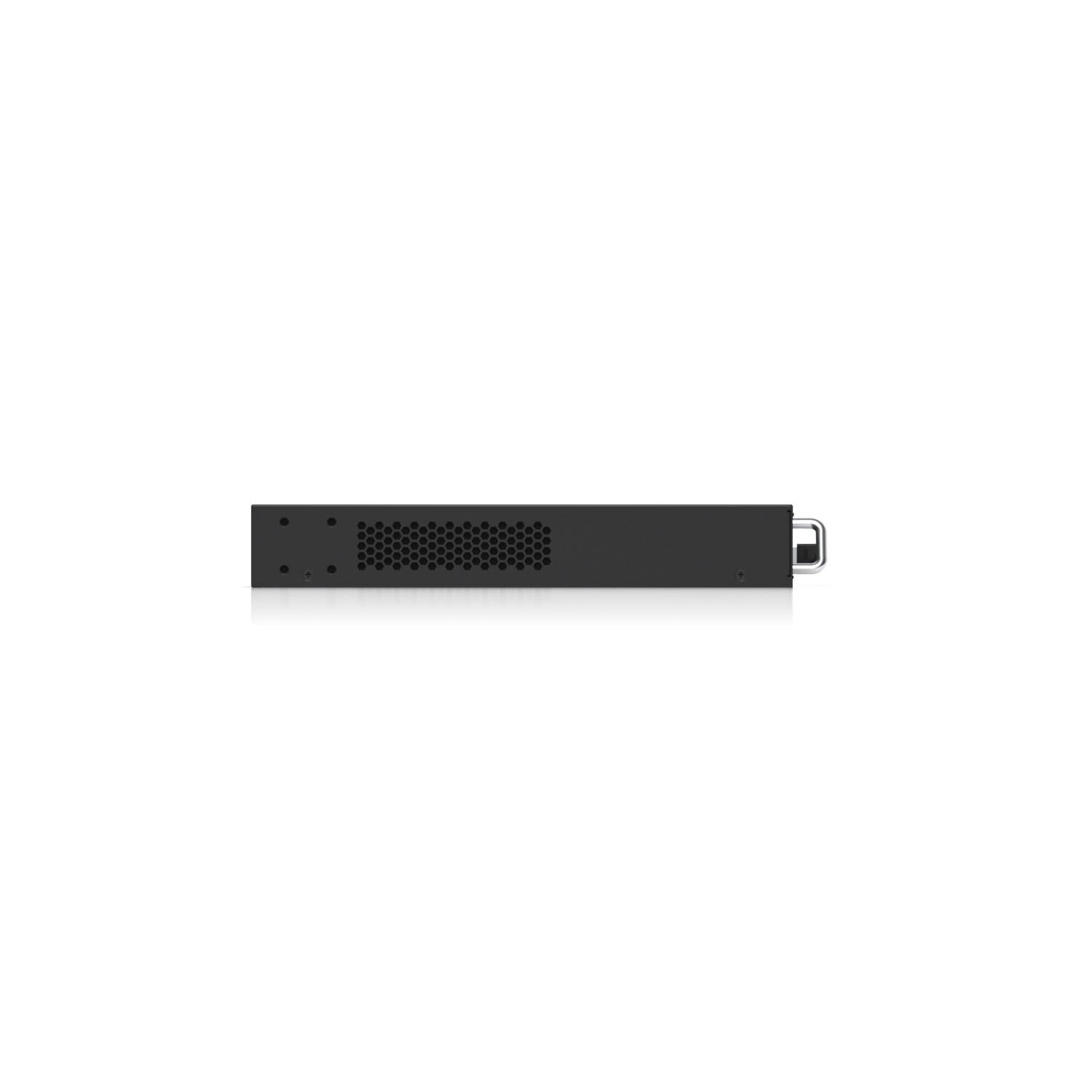

Ubiquiti UFiber OLT 8-Port GPON Optical Line Terminal
The Ubiquiti UFiber OLT 8-Port GPON Optical Line Terminal delivers high-capacity fiber network management for ISPs and enterprises. Featuring eight GPON ports, it supports up to 1,024 concurrent clients with Layer 2/3 management, 1G/10G uplink, and robust performance for scalable FTTH deployments.
Key Features
8-Port GPON OLT Design
Each port supports up to 128 ONUs/ONTs for a total of 1,024 clients.High-Speed Optical Transmission
Up to 2.488 Gbps downstream and 1.244 Gbps upstream per port.Flexible Network Management
Supports advanced Layer 2/3 management, QoS, and traffic prioritization.Versatile Connectivity Options
Includes 1G/10G SFP+ uplink and dedicated management interfaces.Reliable and Energy-Efficient Operation
Consumes just 35W (excluding SFPs) with universal power input.Built for Carrier-Grade Performance
Features MIPS 1004kc dual-core processor and 512MB DDR3 memory.
Specifications
| Feature | Specification |
|---|---|
| Model | UFiber OLT 8-Port GPON Optical Line Terminal |
| Dimensions | 299.8 × 258.95 × 42.55 mm (11.80 × 10.19 × 1.68″) |
| Weight | 1.93 kg (2.13 kg with brackets) |
| GPON Ports | 8× SFP GPON OLT ports |
| Concurrent Clients | Up to 1,024 ONUs/ONTs (128 per port) |
| Uplink Port | 1× 1G/10G SFP+ |
| Management Ports | 1× Ethernet (OOB), 1× RJ45 Console, 1× In-band uplink |
| GPON Speed | 2.488 Gbps Downstream / 1.244 Gbps Upstream |
| Optical Wavelengths | TX: 1490 nm, RX: 1310 nm |
| Optical Power Range | TX: 1.5–5 dBm, RX: -28 to -8 dBm |
| Maximum Fiber Distance | 20 km (dependent on design) |
| Power Method | 100–240VAC / 50–60 Hz or 24VDC |
| Power Supply | Internal 56W DC PSU |
| Max Power Consumption | 35W (excluding SFP modules) |
| Processor | MIPS 1004kc Dual-Core, 880 MHz |
| Memory | 512MB DDR3 + 512MB NAND |
| Operating Temperature | -10°C to 45°C |
| Humidity | 10–90% non-condensing |
| Certifications | CE, FCC, IC |
What’s in the Box
1 × UFiber OLT 8-Port GPON Optical Line Terminal
1 × Power Cable
1 × Mounting Bracket Kit
1 × Quick Start Guide
Why Choose UFiber OLT 8-Port
Supports up to 1,024 clients for large-scale FTTH deployment
Integrated Layer 2/3 management and QoS prioritization
Energy-efficient with only 35W consumption
Compatible with UFiber ONUs/ONTs and standard GPON optics
Reliable, scalable, and easy to configure for ISPs
