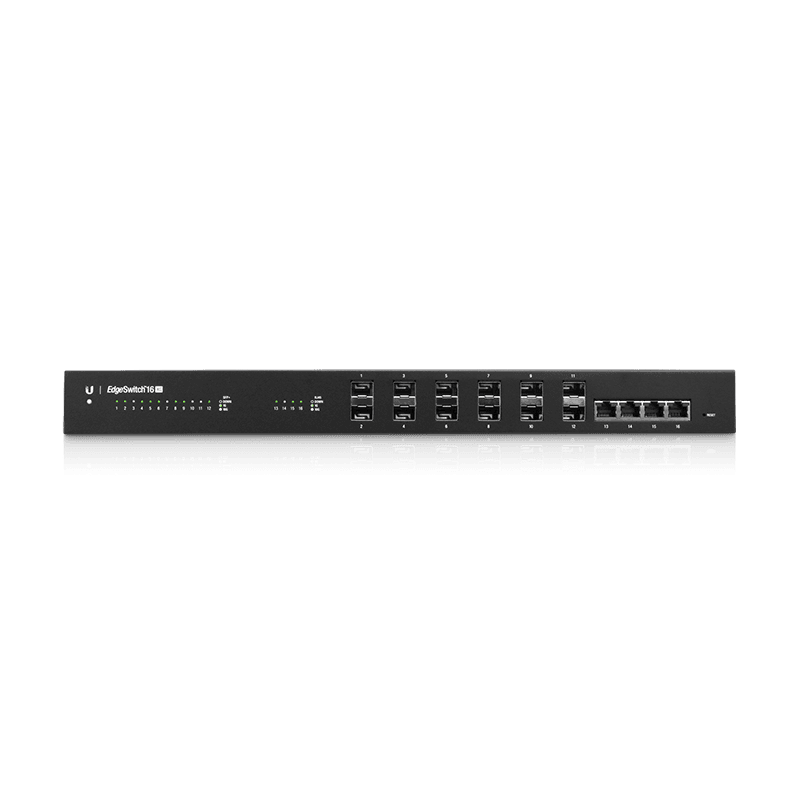

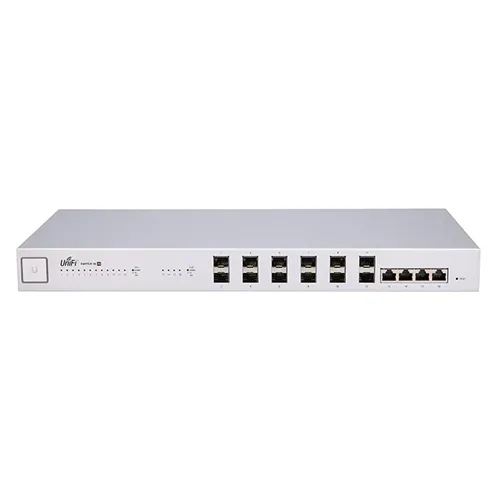

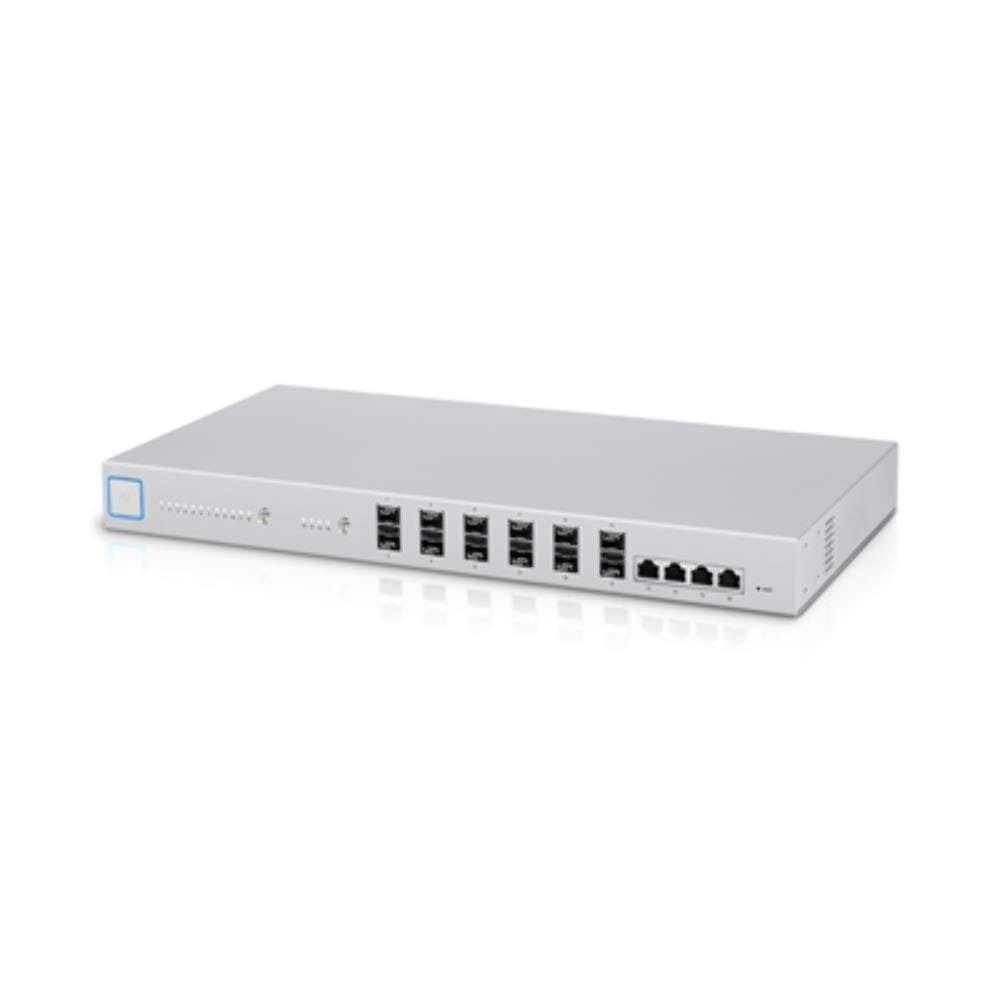

Ubiquiti Networks 10G 16-Port Aggregation Switch-(US-16-XG)
The Ubiquiti Networks 10G 16-Port Aggregation Switch-(US-16-XG) is a high-performance 10G managed aggregation switch designed for modern enterprise and data center networks. With 16 ports supporting both SFP+ and RJ45 interfaces, it delivers lightning-fast throughput of up to 160Gbps, flexible connectivity, and quiet, efficient operation — all managed seamlessly via the UniFi Controller.
Key Features
-
Powerful 10G Aggregation Performance
Provides non-blocking throughput up to 160Gbps and a switching capacity of 320Gbps, ensuring optimal performance in demanding environments. -
Flexible Port Configuration
Includes 12× 1/10G SFP+ ports and 4× 1/10G RJ45 ports for versatile fiber and copper connections. -
Rack-Mountable Design
Compact 1U form factor with included brackets for professional installation. -
Redundant Power Options
Supports both AC and DC input for stable, continuous operation. -
Advanced Management
Fully managed via UniFi Network Controller, allowing easy configuration, monitoring, and integration into existing Ubiquiti setups. -
High Reliability & Durability
Built with a steel SGCC enclosure, providing strength and heat resistance for long-term stability.
Specifications
| Feature | Specification |
|---|---|
| Dimensions | 443 × 221 × 43 mm (17.44 × 8.70 × 1.69″) |
| Weight | 2.62 kg (without brackets), 2.71 kg (with brackets) |
| Enclosure | SGCC Steel |
| Total Non-Blocking Throughput | 160 Gbps |
| Switching Capacity | 320 Gbps |
| Forwarding Rate | 238.10 Mpps |
| Max Power Consumption | 36W (Excludes SFP/SFP+ Modules) |
| Power Method | AC: 100–240VAC/50–60 Hz, DC: 57–20V Terminal Block |
| Power Supply | Internal AC/DC 56W |
| Ports | (12) 1/10G SFP+ |
| Management | (1) RJ45 Serial (Out-of-Band) |
| Rack Mount | Yes (1U High) |
| Sound Level | 1.0–12.8 dBr depending on fan level |
| ESD/EMP Protection | Air: ±24kV, Contact: ±24kV |
| Operating Temperature | -5°C to 40°C |
| Humidity | 5%–95% Non-condensing |
| Certifications | CE, FCC, IC |
What’s in the Box
-
Ubiquiti US-16-XG Switch
-
Power Cord
-
Rack Mount Brackets
-
Mounting Screws
-
Bracket Screws
Why Choose Ubiquiti US-16-XG
-
Enterprise-grade 10G backbone switch
-
Flexible fiber and copper connections
-
Advanced UniFi controller management
-
Quiet, efficient, rack-mountable build
-
Redundant power for network reliability
