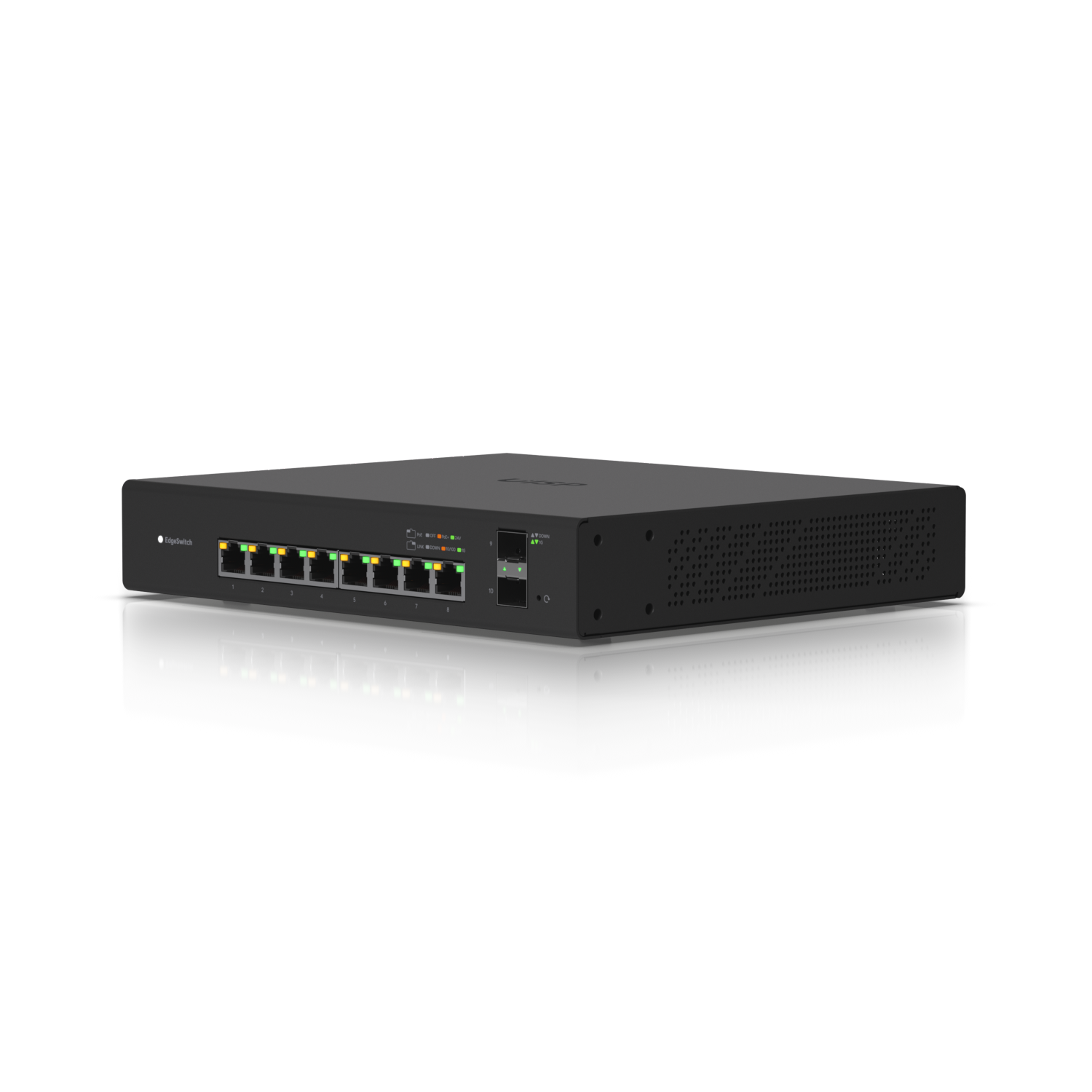

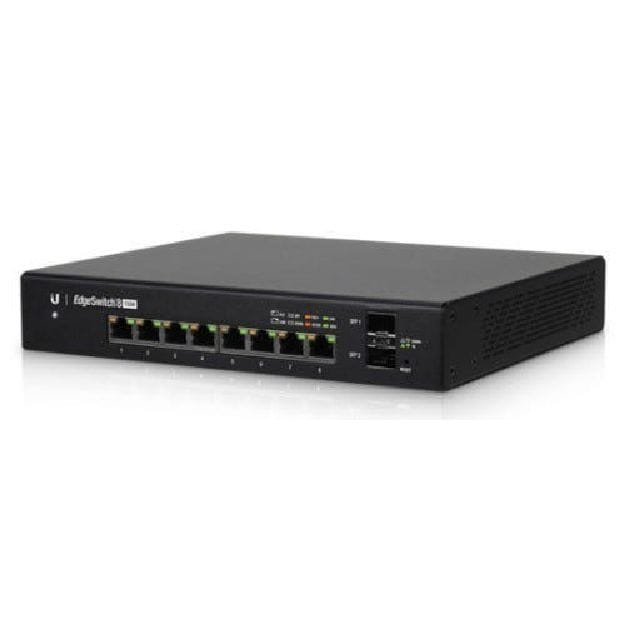

Ubiquiti EdgeSwitch 8 Ports 150W ES-8-150W
The Ubiquiti EdgeSwitch 8 PoE delivers enterprise-class performance with 8 Gigabit RJ45 ports and 2 SFP uplink ports. Supporting both 802.3af/at PoE+ and 24V passive PoE, it provides versatile powering options for APs, IP cameras, VoIP phones, and other PoE devices. With a switching capacity of 20 Gbps, robust power budget, and Layer 2 management, it’s a reliable choice for small businesses and edge networks.
Key Features
-

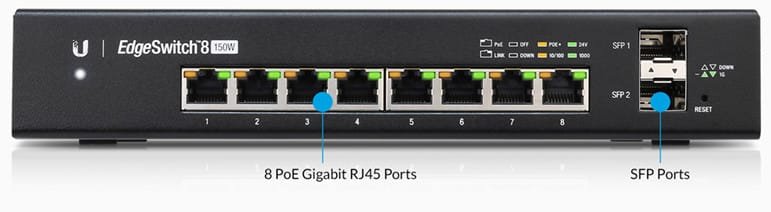

10 Ports in Total
– 8 × Gigabit RJ45 ports (PoE/PoE+ & Passive PoE)
– 2 × 1G SFP fiber uplinks -
Flexible PoE Support
– 802.3af/at PoE+ (up to 34.2W per port)
– 24V Passive PoE (up to 17W per port) -
Powerful Switching Performance
– 20 Gbps switching capacity
– 14.88 Mpps forwarding rate -
High PoE Budget
150W total PoE availability for multiple powered devices. -
Robust & Reliable
– Integrated AC/DC PSU with backup DC input
– ESD protection ± 24kV
– Wide operating temperature: -25 to 60 °C
Specifications
| Feature | Specification |
|---|---|
| Model | ES-8-150W |
| Ethernet Ports | 8 × Gigabit RJ45 (PoE/PoE+ & Passive PoE) |
| SFP Ports | 2 × 1G SFP uplinks |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Non-Blocking Throughput | 10 Gbps |
| PoE Standards | 802.3af/at (PoE+) / 24V Passive PoE |
| Max PoE per Port | 34.2W (PoE+), 17W (Passive PoE) |
| Total PoE Budget | 150W |
| PoE Voltage Range | 50–57V (PoE+), 20–27V (Passive PoE) |
| Power Supply | Internal AC/DC, 150W; external DC backup |
| Max Power Draw | 20W (excl. PoE) |
| Dimensions | 204 × 43 × 235 mm (8 × 1.7 × 9.3″) |
| Weight | 1.7 kg (3.8 lb) |
| Operating Temp | -25 to 60 °C (-13 to 140 °F) |
| Humidity | 5–95% non-condensing |
| ESD/EMP Protection | Air/Contact: ± 24kV |
| Compliance | CE, FCC, IC, NDAA Compliant |
| Enclosure | Durable metal housing |
| Management | In/Out-of-Band via RJ45 Serial/Ethernet |
| LEDs | System, PoE, Link/Speed/Activity |
| Reset Button | Yes (factory reset) |
Why Choose the EdgeSwitch 8 PoE (ES-8-150W)
-
Compact design with Gigabit + fiber uplinks
-
Dual PoE modes for flexible powering (PoE+/Passive)
-
Enterprise-grade throughput & switching
-
Built-in redundancy with dual power options
-
Rugged design with wide temperature tolerance
