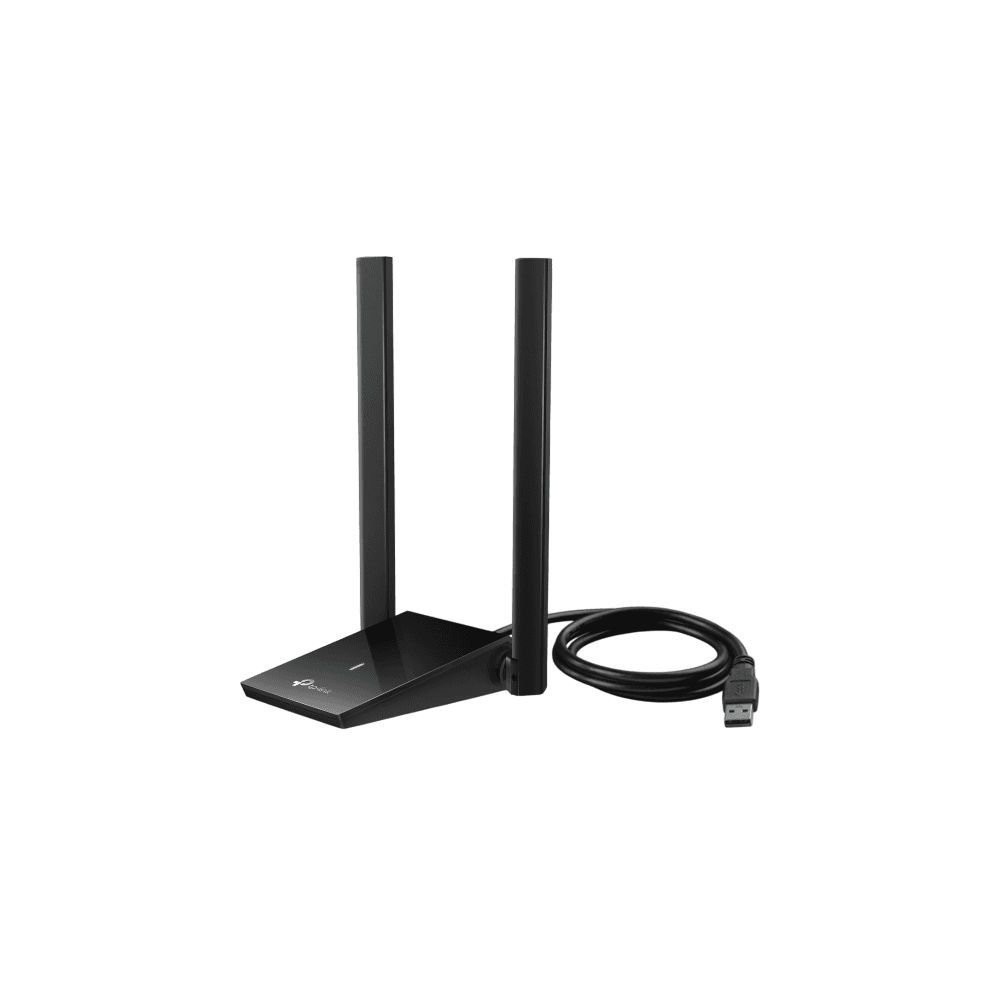

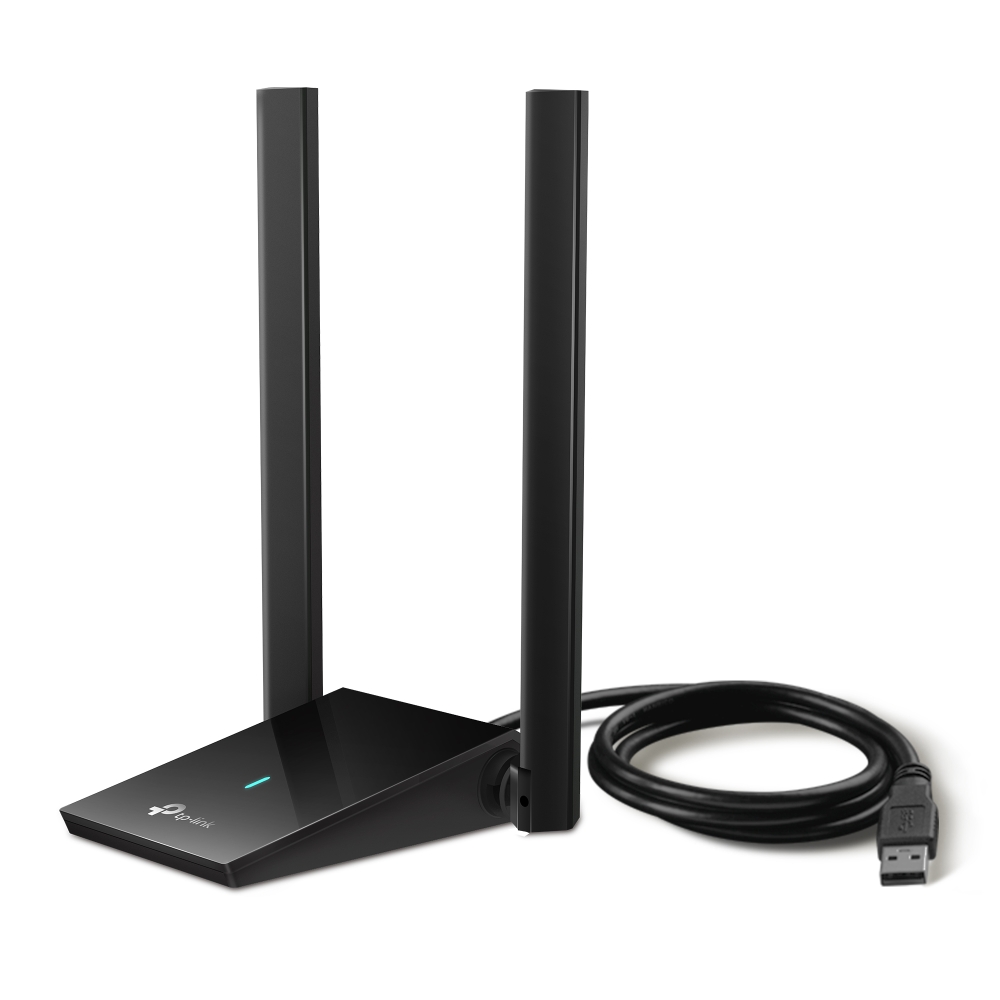

TP-Link Archer TX20U Plus AX1800 Dual Antennas High-Gain Wireless USB Adapter
The TP-Link Archer TX20U Plus AX1800 Dual Antennas High-Gain Wireless USB Adapter is an AX1800 WiFi 6 USB Adapter engineered to deliver next-generation wireless performance for desktops and laptops. Designed with dual high-gain adjustable antennas and MU-MIMO + OFDMA technologies, it ensures robust, high-speed connectivity even in congested wireless environments. Supporting dual-band transmission (1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz), this adapter offers superior reliability for streaming, online gaming, video conferencing, and heavy file transfers.
Key Features
-
Next-Gen WiFi 6 Speeds (AX1800)
Supports wireless speeds up to 1800 Mbps (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) for high-bandwidth applications. -
Dual-Band Flexibility
Automatically selects the best frequency band to ensure stable, interference-free connections. -
Dual High-Gain Antennas
Provides extended range and enhanced signal reception for distant routers or access points. -
MU-MIMO & OFDMA Technologies
Ensures simultaneous, lag-free data streams for multiple devices and ultra-low latency performance. -
USB 3.0 Interface
Enables up to 10× faster transfer speeds compared to USB 2.0, eliminating bottlenecks for full 10 Gbps utilization. -
Beamforming Technology
Concentrates wireless signals directly toward your router for improved stability and coverage. -
WPA3 Encryption
Offers enhanced wireless security and protection against brute-force attacks. -
Plug-and-Play Setup
Preloaded drivers allow automatic installation—just plug in and connect. -
Adjustable Antenna Design
180° rotatable dual antennas for optimal signal positioning and maximum coverage.
Specifications
| Feature | Specification |
|---|---|
| Model | TP-Link Archer TX20U Plus |
| Wireless Standard | IEEE 802.11ax/ac/n/a/g/b |
| WiFi Speed | AX1800 (1201 Mbps @ 5 GHz + 574 Mbps @ 2.4 GHz) |
| Frequency Band | Dual Band (2.4 GHz / 5 GHz) |
| Interface | USB 3.0 |
| Antenna Type | Dual external high-gain adjustable antennas |
| Modulation Technology | OFDMA, 1024-QAM |
| Beamforming | Supported |
| MU-MIMO | Supported |
| Encryption | WPA3, WPA2, WPA |
| Operating System Support | Windows 11 / 10 (32/64-bit) |
| Dimensions | 84.8 × 65.8 × 19.5 mm |
| Cable Length | 1 meter USB extension cable |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Certifications | CE, FCC, RoHS |
| Warranty | 3 Years (Limited) |
What’s in the Box
-
1 × TP-Link Archer TX20U Plus USB Adapter
-
1 × USB 3.0 Extension Cable (1 m)
-
Quick Installation Guide
Why Choose TP-Link Archer TX20U Plus
-
Instant WiFi 6 upgrade for any desktop or laptop.
-
Dual high-gain antennas for superior range and stability.
-
MU-MIMO and OFDMA ensure high performance in multi-device environments.
-
Built-in driver for effortless installation.
-
Enhanced WPA3 encryption for next-level wireless security.
-
Compact, adjustable, and optimized for modern workspaces.
