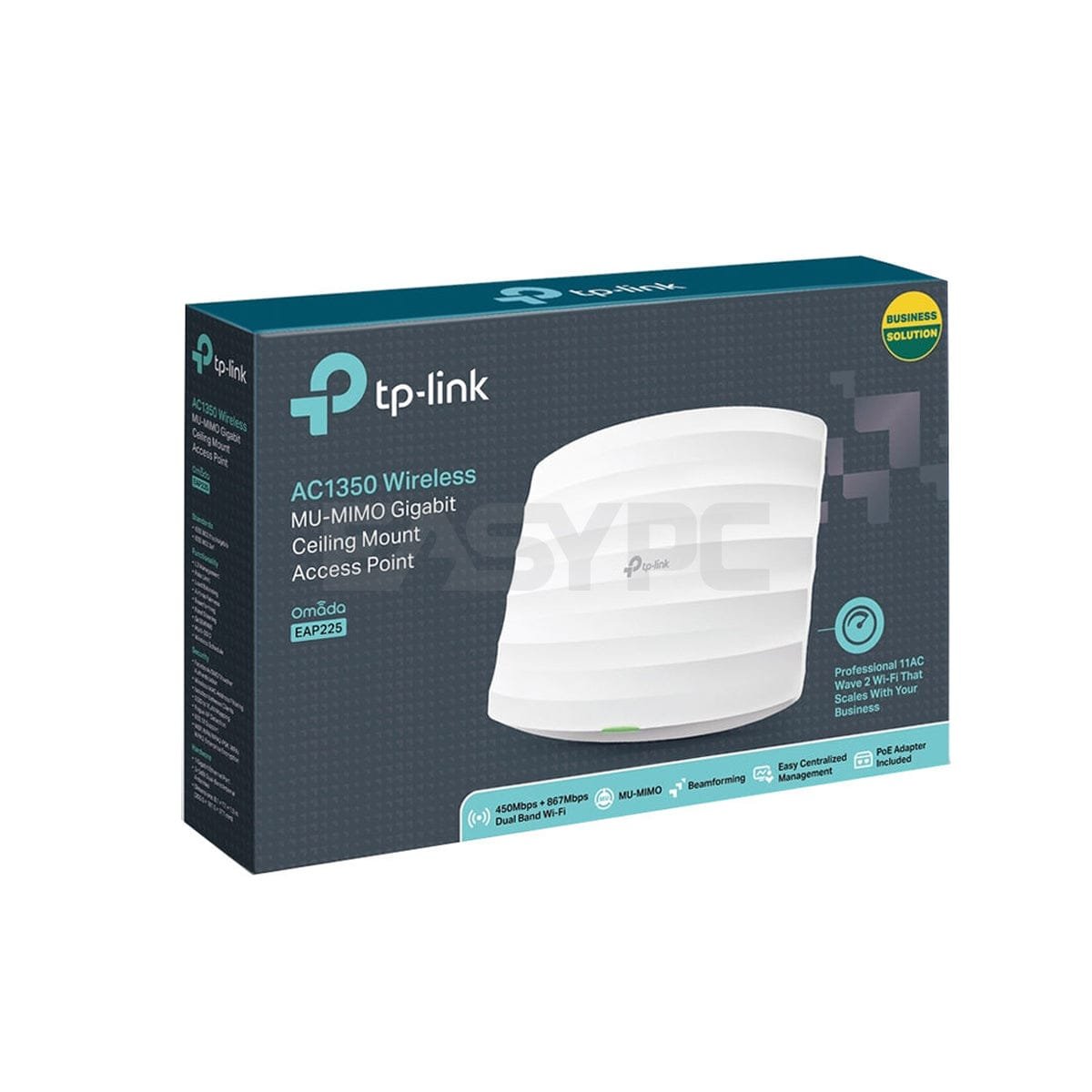

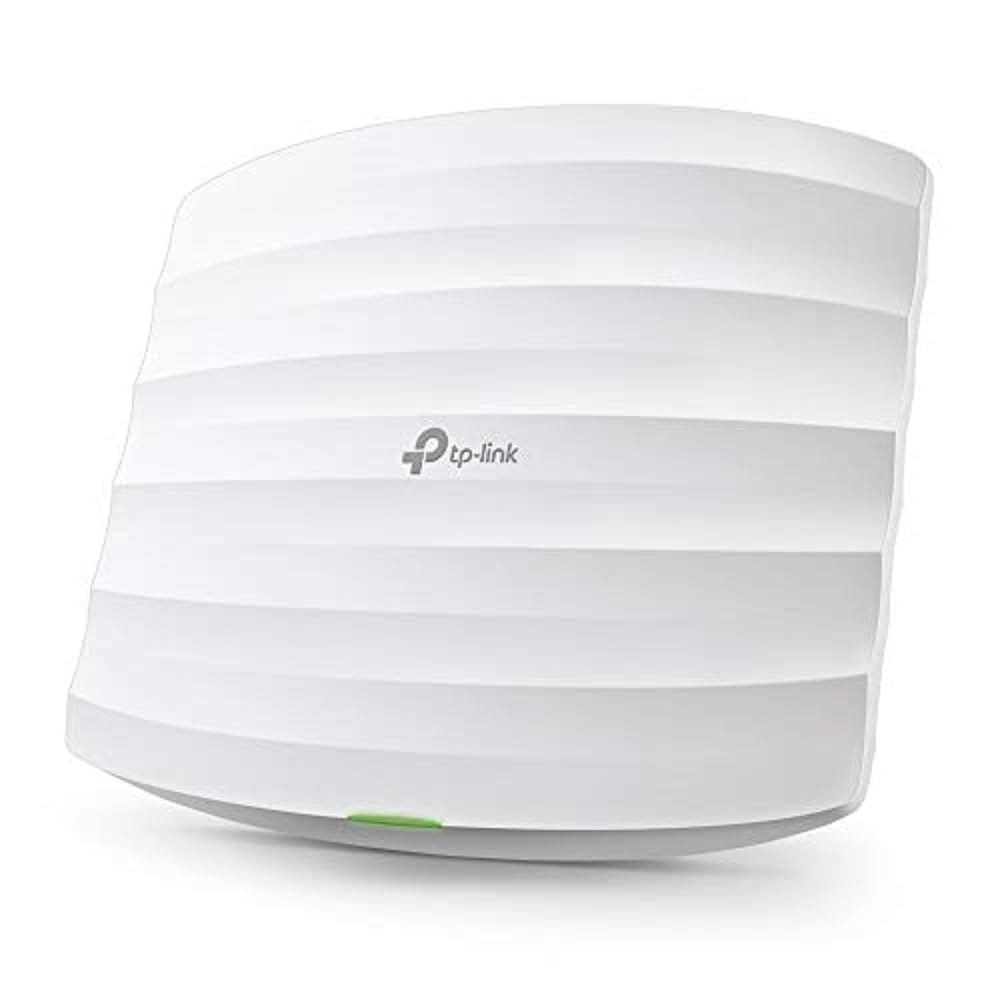

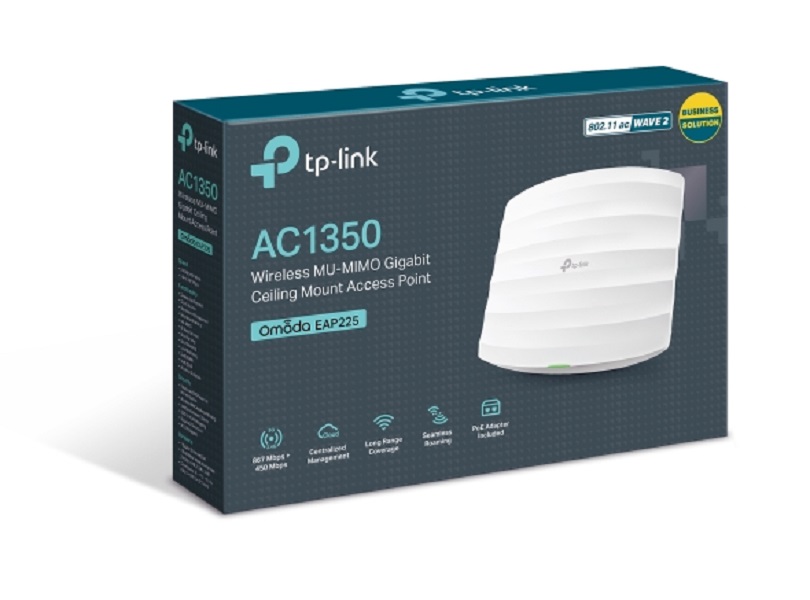

Tp-Link AC1350 Wireless Access Point – TL-EAP225
Experience seamless, high-speed dual-band connectivity with the TP-Link TL-EAP225, designed for business-class Wi-Fi performance. Integrated with Omada SDN Cloud Management, it delivers centralized control, secure guest access, and superior wireless coverage—ideal for offices, hotels, schools, and retail spaces.
Key Features
-
Fast Dual-Band Wi-Fi
Achieve total speeds up to 1317 Mbps—450 Mbps on 2.4GHz and 867 Mbps on 5GHz. -
Omada SDN Integration
Supports Zero-Touch Provisioning (ZTP), cloud access, and intelligent monitoring for streamlined management. -
Seamless Roaming
Maintain uninterrupted voice and video calls as users move across APs. -
Advanced Wireless Technologies
Equipped with MU-MIMO, Beamforming, Band Steering, and Airtime Fairness for optimized performance. -
Flexible PoE Support
Compatible with 802.3af/at PoE and 24V Passive PoE (adapter included) for effortless installation. -
Secure Guest Network
Multiple authentication methods including SMS, Facebook Wi-Fi, and Voucher login, ensuring safe and controlled access.
Specifications
| Feature | Specification |
|---|---|
| Interface | 1 × Gigabit Ethernet (RJ-45) Port (802.3af PoE & Passive PoE) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/at PoE or 24V Passive PoE (PoE Adapter Included) |
| Power Consumption | EU: 10.5 W / US: 12.6 W |
| Dimensions | 205.5 × 181.5 × 37.1 mm (8.1 × 7.1 × 1.5 in) |
| Antenna Type | 3 Internal Omni Antennas (2.4GHz: 4dBi, 5GHz: 5dBi) |
| Mounting | Ceiling / Wall (Kits Included) |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4 GHz & 5 GHz |
| Signal Rate | 2.4GHz: Up to 450 Mbps / 5GHz: Up to 867 Mbps |
| Wireless Functions | MU-MIMO, Beamforming, Seamless Roaming, Load Balance, QoS (WMM), Multiple SSIDs (Up to 16), Band Steering, Airtime Fairness, Omada Mesh |
| Wireless Security | Captive Portal, WPA2, Access Control, MAC Filtering, SSID-to-VLAN Mapping, Rogue AP Detection, 802.1X Support |
| Transmission Power | CE: ≤20 dBm (2.4GHz), ≤23 dBm (5GHz) / FCC: ≤24 dBm (2.4GHz), ≤22 dBm (5GHz) |
What’s in the Box
-
1 × TP-Link TL-EAP225 Access Point
-
1 × 24V Passive PoE Adapter
-
Ceiling/Wall Mounting Kits
-
Quick Installation Guide
Why Choose the TL-EAP225
-
Dual-band AC1350 speed for high-demand environments
-
Supports Omada Cloud for centralized remote management
-
Easy installation via PoE or Passive PoE
-
Enterprise-grade security for guests and staff
-
Perfect for hotels, offices, schools, and restaurants
