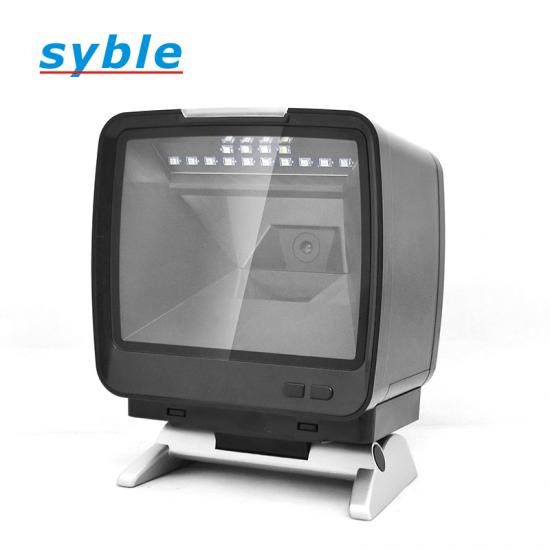

Syble XB-8809H Desktop Imager
The Syble XB-8809H Barcode Scanner provides high-speed omnidirectional data capture for high-throughput retail and logistics environments. This unit utilizes a 640×480 pixel CMOS sensor to decode complex 1D and 2D symbologies from various media. Additionally, the integrated metal base provides necessary ballast for stationary use in point-of-sale configurations. Therefore, the hardware remains stable during rapid scanning operations involving large items. The architecture supports reading from both printed labels and backlit mobile screens. Consequently, it facilitates digital couponing and mobile payment workflows without requiring secondary devices. This scanner operates as a plug-and-play USB peripheral, reducing deployment time for IT departments.
Key Features
-
Advanced CMOS Imaging Engine
The 640×480 resolution sensor captures barcodes at 30 frames per second for rapid data entry. -
Industrial Build Quality
- Weighted metal base prevents tipping during high-volume scanning cycles.
- Drop-resistant housing protects internal optics from accidental impacts.
-
Broad Symbology Support
Native firmware decodes QR Codes, Data Matrix, PDF417, and all standard GS1 linear barcodes. -
Operational Flexibility
- Supports USB-HID and USB-COM interface modes for legacy software compatibility.
- Automatic sensing mode activates the LED array only when a barcode is detected.
Specifications
| Feature | Specification |
|---|---|
| Light Source | 617nm Red LED (Aiming), 6500K White LED (Illumination) |
| Scan Speed | 30 fps |
| Field of View | 48° Horizontal, 30° Vertical |
| Minimum Contrast | 25% |
| Input Voltage | 5V DC ± 5% |
| Operating Temp | -20°C to 50°C |
| Dimensions | 150mm x 100mm x 110mm |
What’s in the Box
- Syble XB-8809H Scanning Unit
- Integrated Metal Stand/Base
- USB Type-A Interface Cable
- Technical User Manual
Why Choose This Scanning Solution
- The high-speed decoding engine reduces transaction latency in high-traffic retail environments.
- The weighted base ensures the optical alignment remains consistent during hands-free operation.
- Firmware-level optimization improves the first-pass read rate on damaged or poorly printed labels.
- Low power consumption via the USB bus reduces the thermal footprint in enclosed POS kiosks.
- Wide-angle lens geometry allows for a larger scanning sweet spot compared to handheld alternatives.
