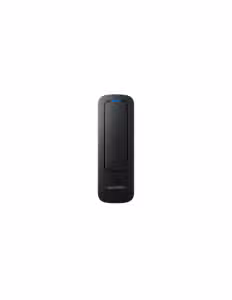

Suprema XP2-MDPB XPass 2 Outdoor RFID Reader Mullion-mount IP67 IK08

XPass 2 Outdoor Reader

The Suprema XP2-MDPB RFID Reader provides a highly durable and compact solution for enterprise-grade access control systems requiring mullion-mount installation. This hardware utilizes dual-frequency RFID technology to support a broad spectrum of credential types across 125kHz and 13.56MHz bands. Consequently, it allows organizations to manage legacy proximity cards while transitioning toward high-security encrypted smart cards. The device features a ruggedized exterior designed for harsh environments, meeting international standards for ingress and impact protection.

Key Features

• Dual-Frequency Credential Support
  This unit reads both low-frequency (125kHz) and high-frequency (13.56MHz) signals to ensure compatibility with EM, MIFARE, and DESFire standards.

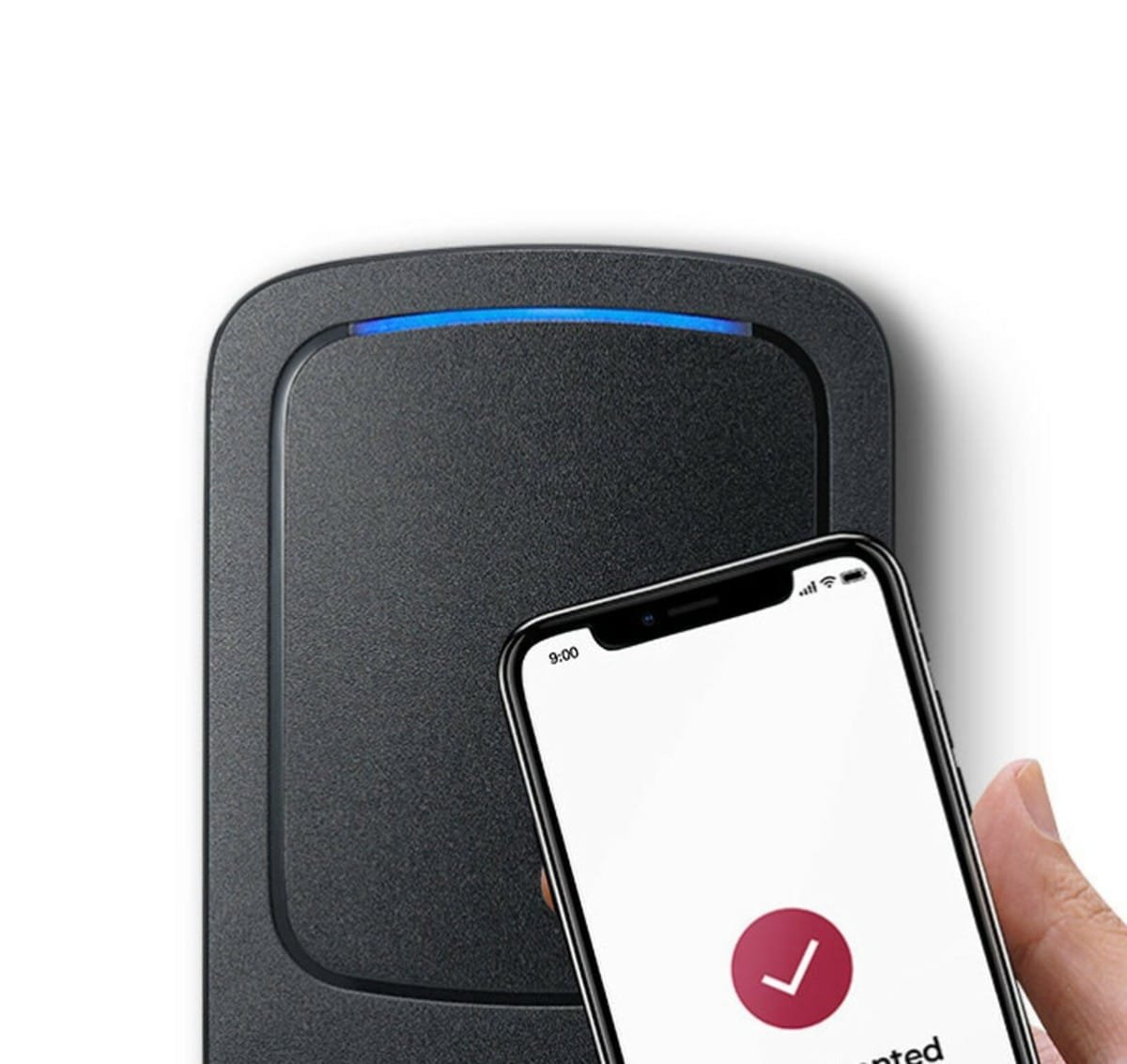

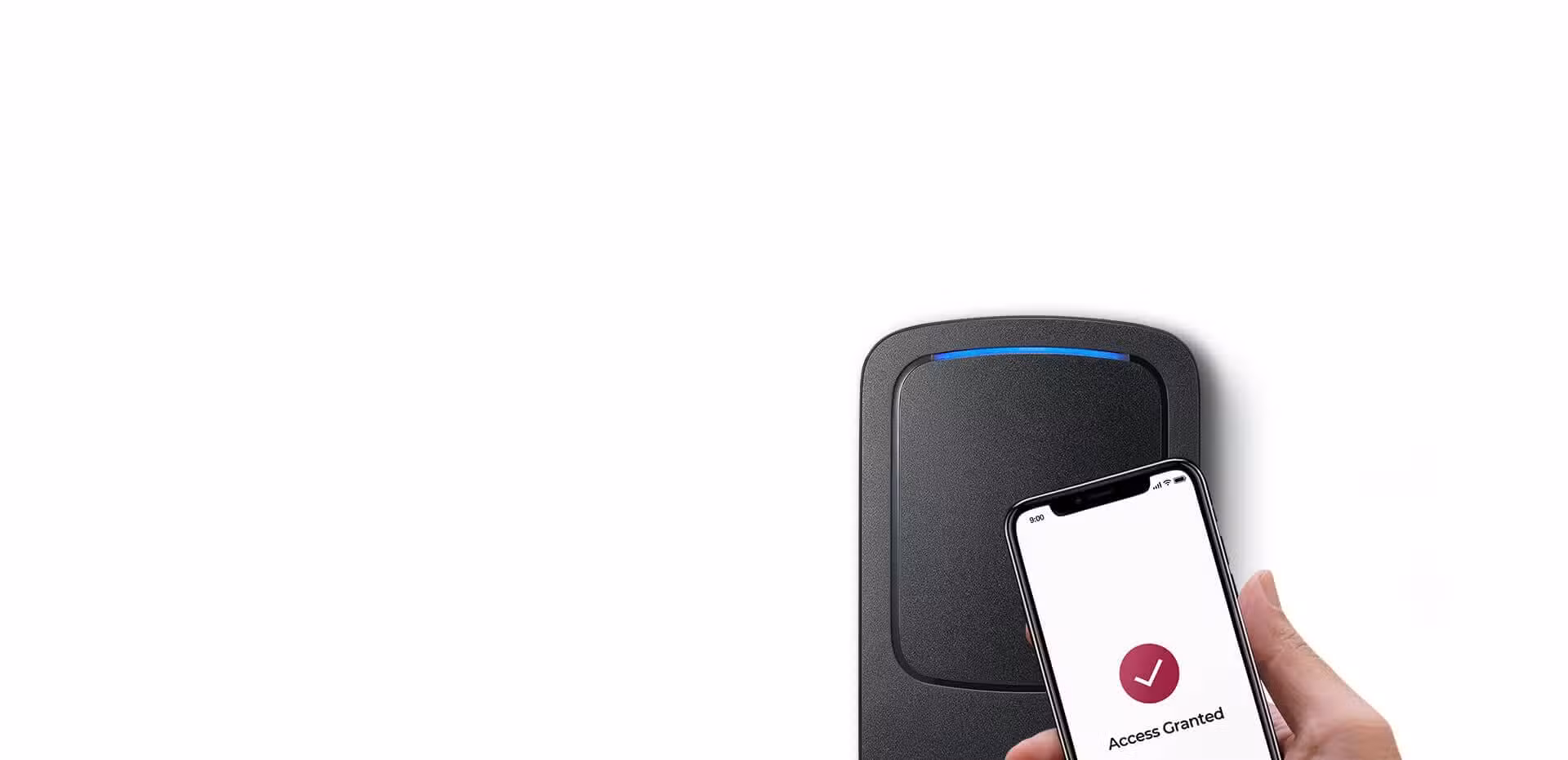

• Mobile Authentication Capability

  • Supports Bluetooth Low Energy (BLE) for long-range smartphone detection.
  • Utilizes Near Field Communication (NFC) for proximity-based mobile access.

• Environmental and Physical Resilience

  • IP67 rating ensures protection against dust and water immersion up to one meter.
  • IK08 impact resistance protects the internal circuitry from mechanical vandalism.

Specifications

What’s in the Box

• Suprema XPass 2 (XP2-MDPB) Reader Unit
• Wall Mounting Bracket and Screws
• Ferrite Core for Cable Management
• Quick Start Installation Guide

Why Choose This Reader

• The mullion-mount form factor measures only 48mm in width, allowing for seamless installation on narrow door frames or aluminum profiles. Furthermore, the slim profile does not compromise the internal antenna performance or reading range.
• Integration with BioStar 2 software enables centralized management of users and access logs. Therefore, security administrators can deploy firmware updates and configuration changes across the network simultaneously.
• Advanced security protocols, including Open Supervised Device Protocol (OSDP), secure the communication between the reader and the controller. This prevents signal interception and enhances overall system integrity compared to traditional Wiegand wiring.
• The device operates reliably in extreme temperatures ranging from -35°C to 65°C. Consequently, it is an optimal choice for industrial facilities or outdoor gates in diverse geographic locations.
