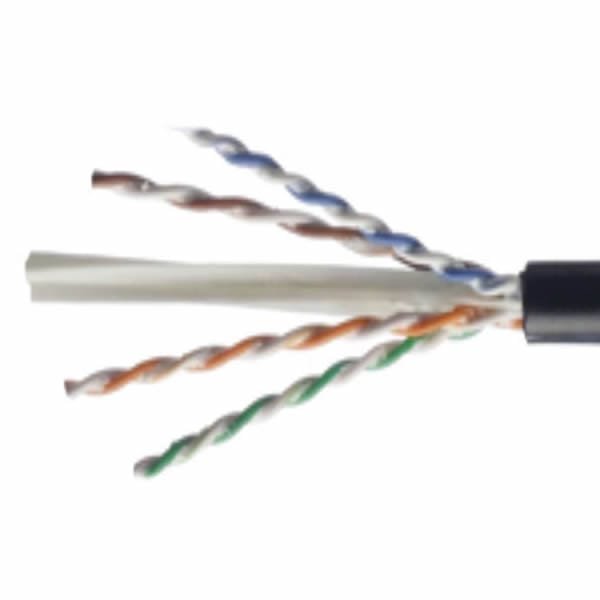

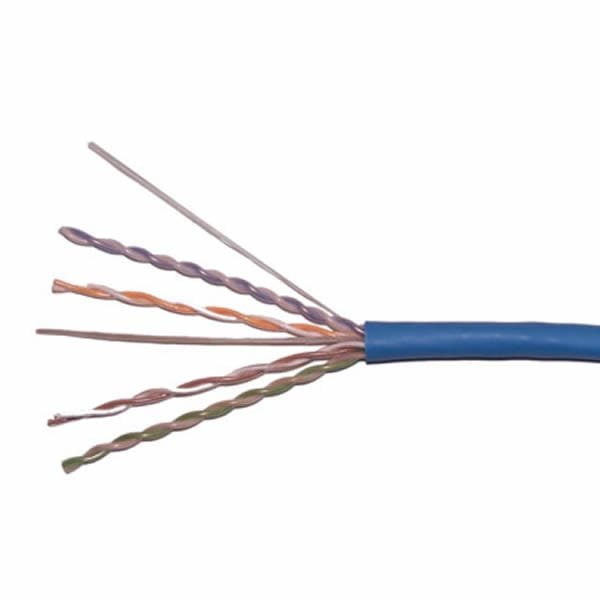

Siemon Category 6 UTP Medium
The Siemon Cat 6 Cable provides a high-performance foundation for modern structured cabling environments. This professional-grade copper medium exceeds all TIA/EIA and ISO/IEC performance requirements for Category 6. It supports high-speed data applications including Gigabit Ethernet and 1000BASE-T. The architecture utilizes 23 AWG solid bare copper conductors. Consequently, this design ensures superior DC resistance performance for Power over Ethernet (PoE) applications.
Key Features
-
Internal Cross-Isolator
A central polyethylene separator maintains pair geometry and significantly reduces Near-End Crosstalk (NEXT) during high-frequency transmissions. -
Optimized Transmission Parameters
- Verified performance up to 250 MHz frequency.
- Minimal insertion loss for longer horizontal link distances.
- Enhanced PowerSum Alien Crosstalk (PSANEXT) suppression.
-
Reelex Packaging Technology

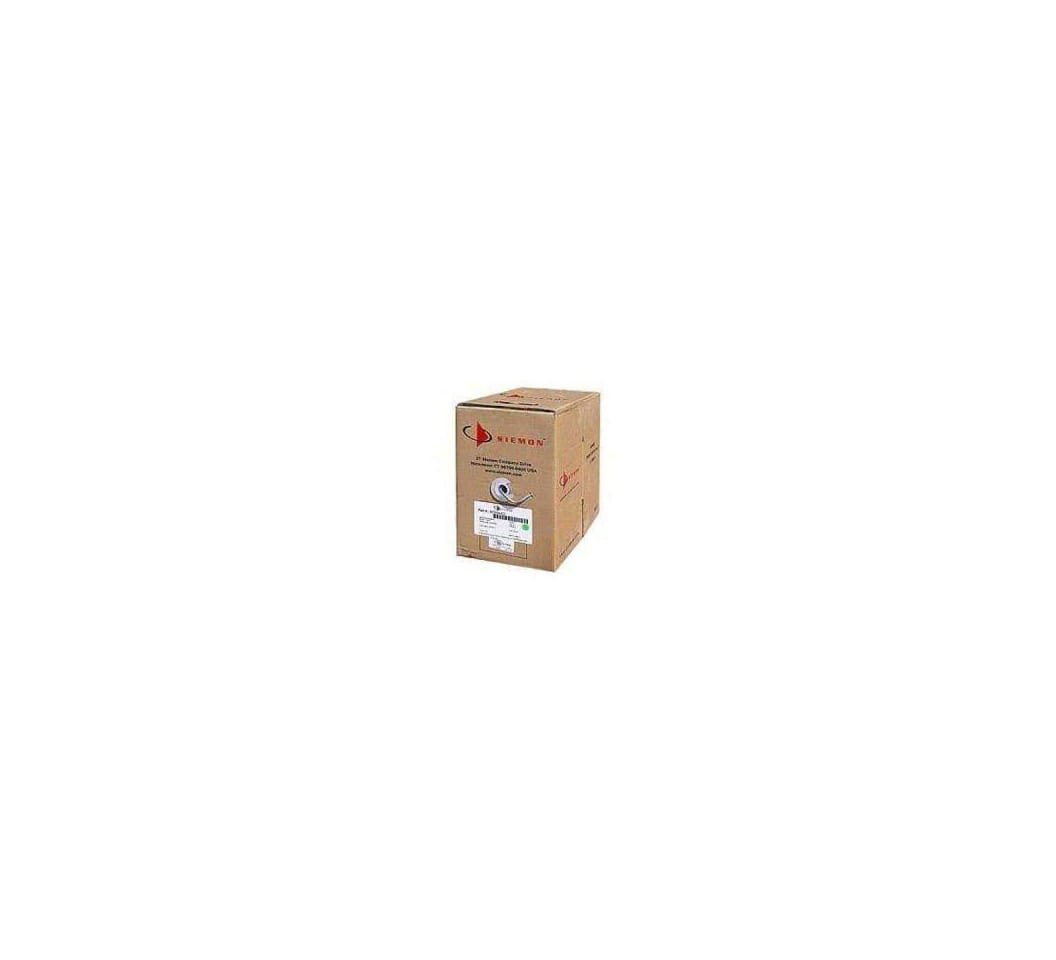

The 305-meter roll arrives in a specialized payout box to prevent kinking or snagging during the pull process.
Specifications
| Feature | Specification |
|---|---|
| Conductor Type | 23 AWG Solid Bare Copper |
| Insulation Material | High-Density Polyethylene |
| Jacket Rating | CM/CMR Flame Retardant PVC |
| Nominal Diameter | 5.3 mm (0.21 in.) |
| Operating Temp | -20°C to 60°C |
| Standard Length | 305 Meters (1000 Feet) |
What’s in the Box
-
1 x 305m Roll of Siemon Category 6 UTP Cable
-
Technical Compliance Documentation
Why Choose Siemon Infrastructure
-
This cabling solution provides substantial headroom above industry standards to ensure network longevity.
-
Additionally, the 23 AWG copper construction facilitates efficient heat dissipation for high-wattage PoE+ and PoE++ devices.
-
Therefore, engineers can rely on consistent impedance matching across the entire frequency range.
-
The jacket material withstands high pulling tension without compromising the internal twisted pair integrity.
-
Consequently, this product remains a standard choice for enterprise data centers and telecommunications rooms globally.
