Professional RG59 Cable With Power, 300M, 75 Ohm Siamese Coaxial

RG59 Siamese Coaxial Cable

The RG59 Cable With Power provides a unified solution for video transmission and DC power delivery in professional surveillance environments. This Siamese-style cabling combines a 75-ohm coaxial core with two 18-gauge power conductors under a single outer jacket. Consequently, technicians can execute single-run pulls for each camera, significantly reducing labor time during infrastructure deployment. The architecture supports traditional analog signals alongside modern high-definition formats including AHD, HD-CVI, and HD-TVI. Therefore, this medium is suitable for both legacy maintenance and new digital installations.

Key Features

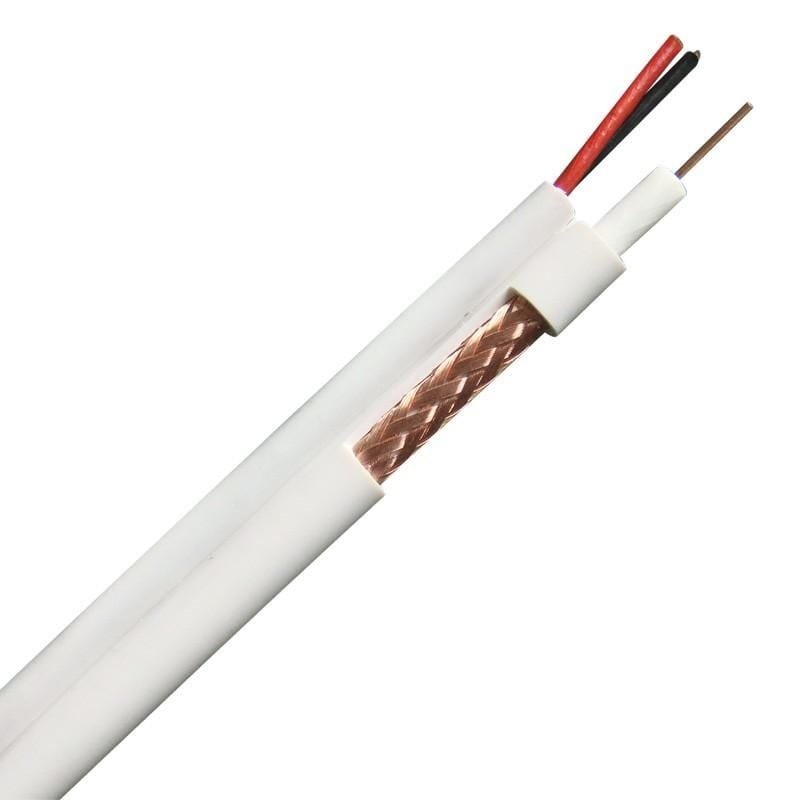

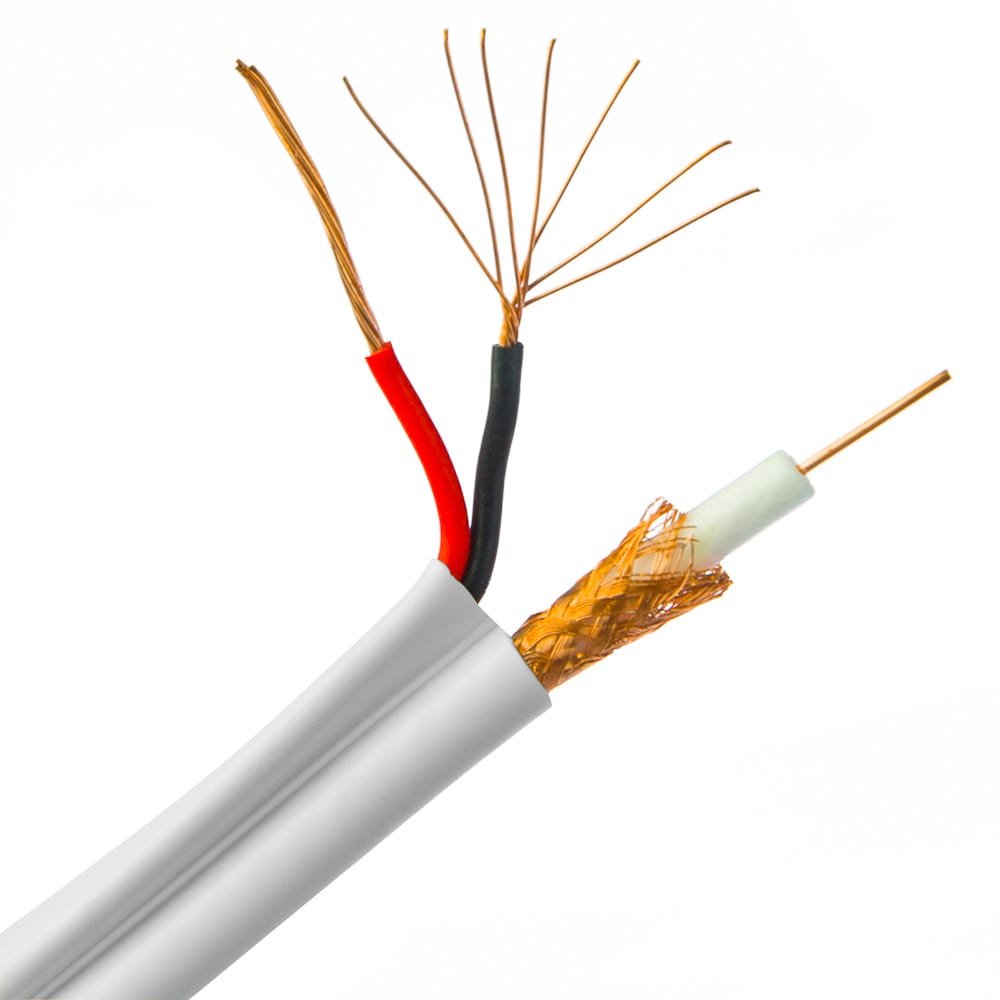

• Dual-Conductor Siamese Design
  Combines RG59 video signal and 18/2 AWG power wires in one jacket to simplify cable management during installation.

• Advanced Shielding Architecture

  • 95% coverage braid protects against Electromagnetic Interference (EMI).
  • Radio Frequency Interference (RFI) mitigation ensures signal clarity over 300 meters.

• Environmental Resilience
  The heavy-duty PVC jacket resists abrasion and facilitates smooth pulling through conduits or tight plenum spaces.

Specifications

What’s in the Box

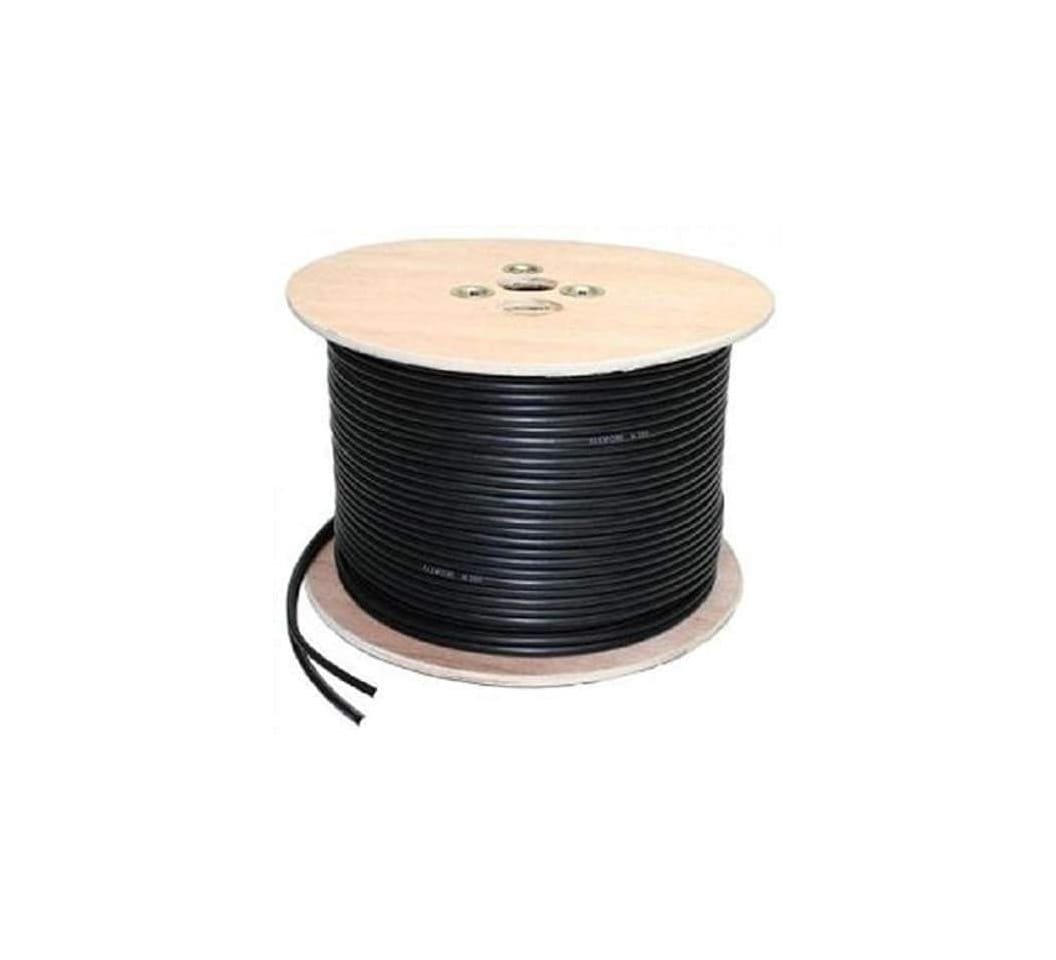

• 1 x 300M Roll of Siamese RG59 Coaxial Cable with Power

Why Choose Siamese Cabling

• Integrated power conductors eliminate the requirement for separate power supply proximity at the camera mounting point.
• High-purity dielectric insulation maintains consistent impedance, which prevents ghosting and signal reflection in video feeds.
• Sequential foot markers on the outer jacket allow for accurate inventory tracking and precise measurement during site deployment.
• Additionally, the 75-ohm specification ensures compatibility with standard BNC compression or crimp-on connectors.
