Office Point CAT6 UTP Keystone Jack 50U Gold Plated

Office Point CAT6 UTP Jack

The Office Point Keystone Jack provides a high-performance termination point for Category 6 unshielded twisted pair (UTP) cabling systems. This component facilitates reliable data transmission within structured cabling environments by maintaining signal integrity across the physical layer. It adheres to the TIA/EIA 568-C.2 standard, ensuring compatibility with 1000Base-T Gigabit Ethernet applications. The internal architecture utilizes a specialized PCB design to minimize Near-End Crosstalk (NEXT) and Far-End Crosstalk (FEXT), providing the necessary headroom for high-frequency data traffic up to 250 MHz.

Key Features

• 50-Micron Gold Plating
  The contact pins feature heavy-duty gold plating to prevent oxidation and ensure low contact resistance over long-term deployments.

• Universal Wiring Compatibility

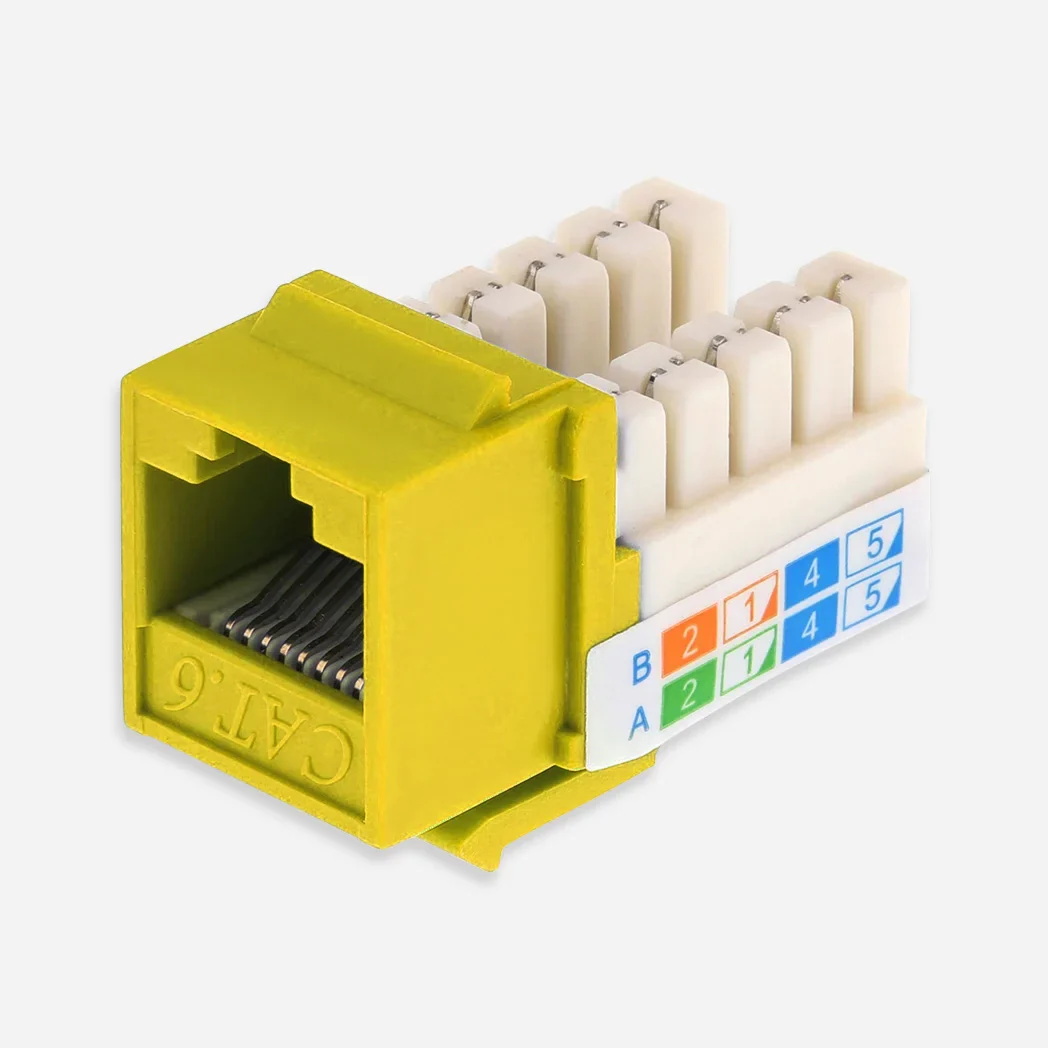

  • Supports both T568A and T568B wiring configurations via integrated color-coded labels.
  • Compatible with standard 110 and Krone impact punch-down tools for secure conductor termination.

• Mechanical Durability

  • Engineered to withstand at least 750 insertion cycles for RJ45 plugs.
  • Constructed from high-impact, flame-retardant thermoplastic (UL 94V-0) for enhanced safety in plenum spaces.

Network engineers utilize this module for high-density patch panels and wall plate installations. Consequently, the compact form factor allows for efficient port density in standard faceplates. The IDC (Insulation Displacement Connector) towers are designed to accept 22-26 AWG solid copper conductors. Additionally, the pointed tower design simplifies the separation of twisted pairs during the termination process. Therefore, installation time is reduced while maintaining the required twist ratio as close to the termination point as possible. However, installers must ensure proper cable strain relief to avoid physical stress on the IDC contacts.

Specifications

What’s in the Box

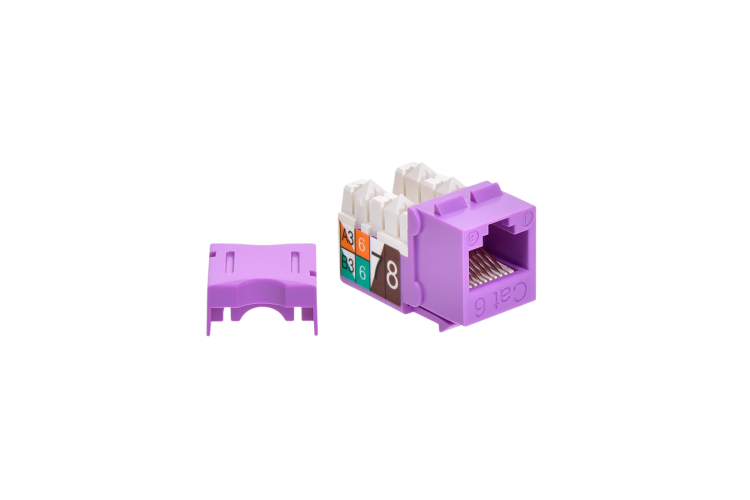

• Office Point CAT6 UTP Keystone Jack (50U)

• Clear Plastic Dust Cap / Strain Relief Cover

Why Choose This RJ45 Module

• Enhanced signal conductivity through industrial-grade 50-micron gold plating on all eight contact positions.

• Simplified deployment across varied environments due to the universal keystone footprint compatible with most third-party faceplates.

• Reliable performance in Gigabit Ethernet setups by maintaining strict Category 6 crosstalk and return loss parameters.

• Robust physical construction ensures long-term stability in commercial networking racks and office wall outlets.
