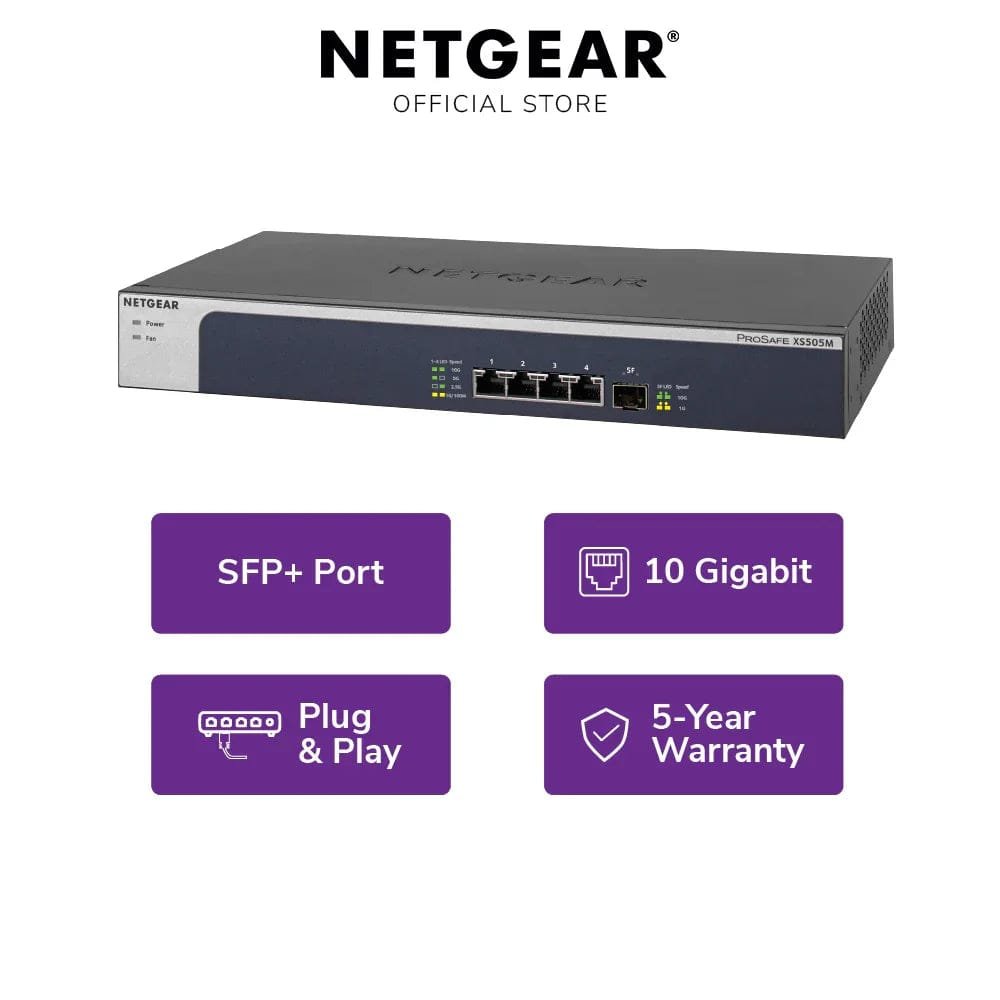

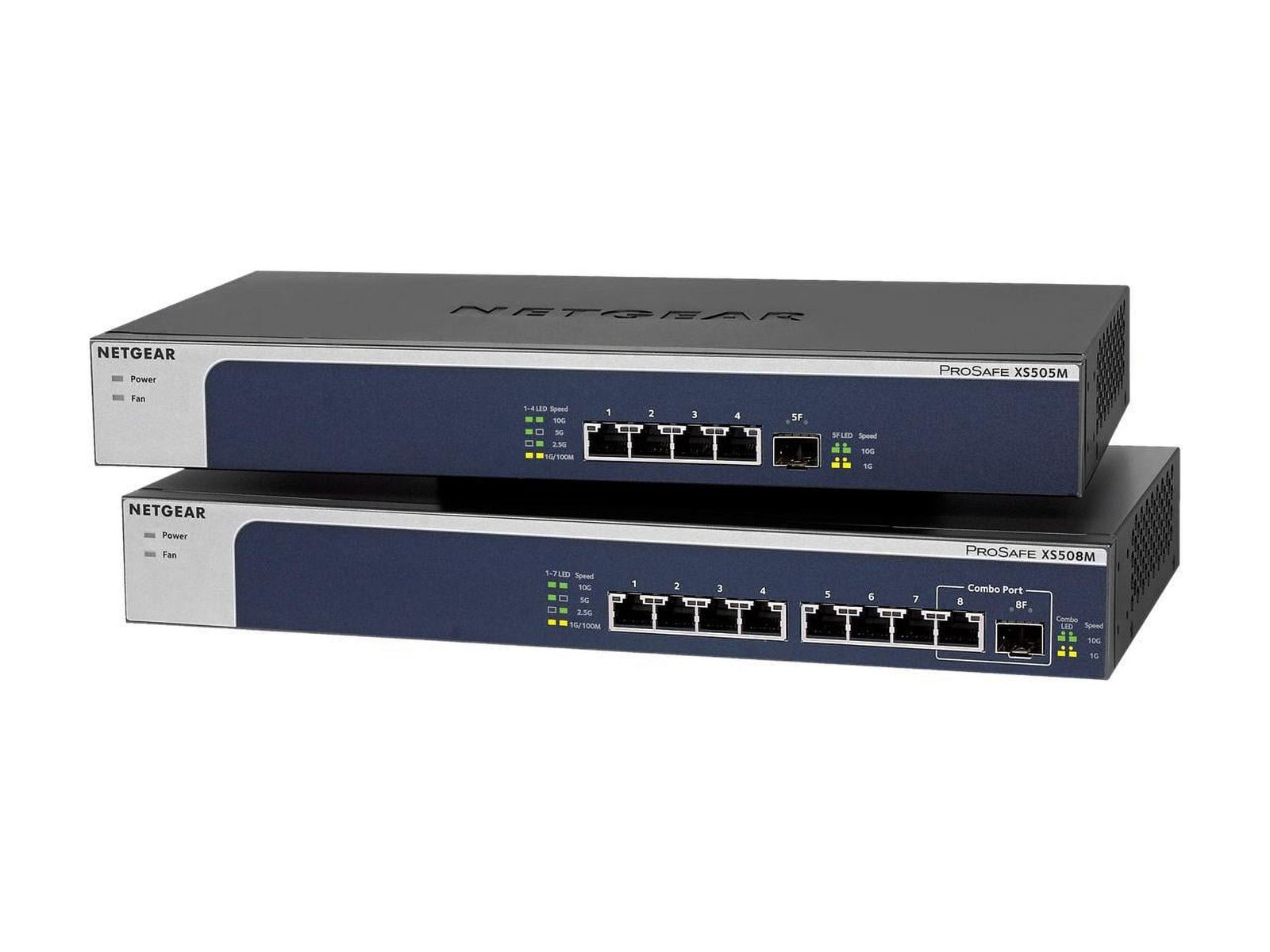

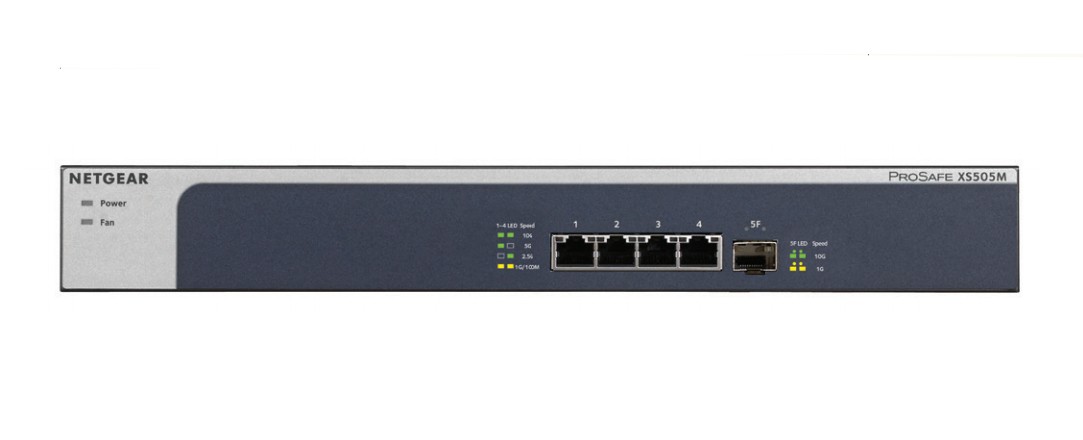

NETGEAR XS505M-100EUS 5-Port 10G / Multi-Gigabit Unmanaged Switch
The NETGEAR XS505M-100EUS is a high-performance 5-port 10-Gigabit/Multi-Gigabit unmanaged switch, engineered to deliver ultra-fast connectivity for modern business networks, server rooms, and performance-critical workspaces. Designed with advanced 10GBASE-T and Multi-Gigabit (100M/1G/2.5G/5G/10G) Ethernet interfaces, this switch enables seamless integration of next-generation Wi-Fi 6/6E access points, high-bandwidth storage devices, high-resolution media systems, and workstation clusters.
Key Features
-
5 Multi-Gigabit / 10G Ethernet Ports
Includes 4 × 10G/5G/2.5G/1G/100M RJ45 ports + 1 × 10G SFP+/SFP slot for fiber uplinks. -
Ultra-High 100 Gbps Switching Capacity
Ensures non-blocking throughput across all interfaces. -
Unmanaged Plug-and-Play Operation
Zero configuration—ideal for SMBs, studios, and enterprise satellite deployments. -
IEEE 802.1p QoS Support
Prioritizes time-sensitive traffic such as voice, video, and real-time data services. -
Jumbo Frame Support (9,000 bytes)
Boosts efficiency in large file transfers and virtualization environments. -
Enterprise-Grade Build Quality
Metal enclosure, rack-mountable, with efficient thermal performance. -
Compliance & Safety Certifications
Fully certified for global standards including FCC, CE, UL, VCCI, and CISPR.
Specifications
| Feature | Specification |
|---|---|
| Model | NETGEAR XS505M-100EUS |
| Switch Type | Unmanaged |
| Switching Layer | Layer 2 |
| Ports | 4 × 10G/5G/2.5G/1G RJ45 |
| SFP+ / SFP Slots | 1 × 10G SFP+ |
| Switching Capacity | 100 Gbps |
| MAC Address Table | 2,000 entries |
| Jumbo Frame Size | 9,000 bytes |
| Buffer Memory | 128 MB |
| Full Duplex Support | Yes |
| Flow Control | IEEE 802.3x |
| QoS Support | IEEE 802.1p |
| Power Consumption (Max) | 22.5 W |
| Power Consumption (Typical) | 12.25 W |
| Power Input | 100–240V AC, 50/60 Hz |
| Input Current | 1.5A |
| Heat Dissipation | 85.3 BTU/hr |
| Operating Temperature | 0°C – 50°C |
| Storage Temperature | -20°C – 70°C |
| Operating Humidity | 0–95% |
| Mounting | Rack-mountable |
| Chassis Color | Gray / Silver |
| Dimensions (W × D × H) | 328 × 169 × 43.2 mm |
| Weight | 1.38 kg |
| Certifications | FCC, ICES, CE, UL, VCCI, EN55032, EN55024, CISPR 32, AS/NZS |
| MTBF | 1,093,237 hours |
| HS Code | 85176990 |
What’s in the Box
-
1 × NETGEAR XS505M-100EUS Multi-Gigabit Switch
-
1 × Power Cable
-
Rack Mounting Accessories
-
Quick Start Guide
Why Choose NETGEAR XS505M-100EUS
-
Ultra-fast 10G and Multi-Gigabit connectivity for growing business needs
-
Ideal for Wi-Fi 6/6E APs, NAS servers, media production, and high-speed workstations
-
No configuration—true plug-and-play deployment
-
100 Gbps switching ensures maximum performance with zero bottlenecks
-
Enterprise-certified for safety, durability, and long-term network reliability
-
Flexible copper and fiber uplink options (RJ45 + SFP+)
