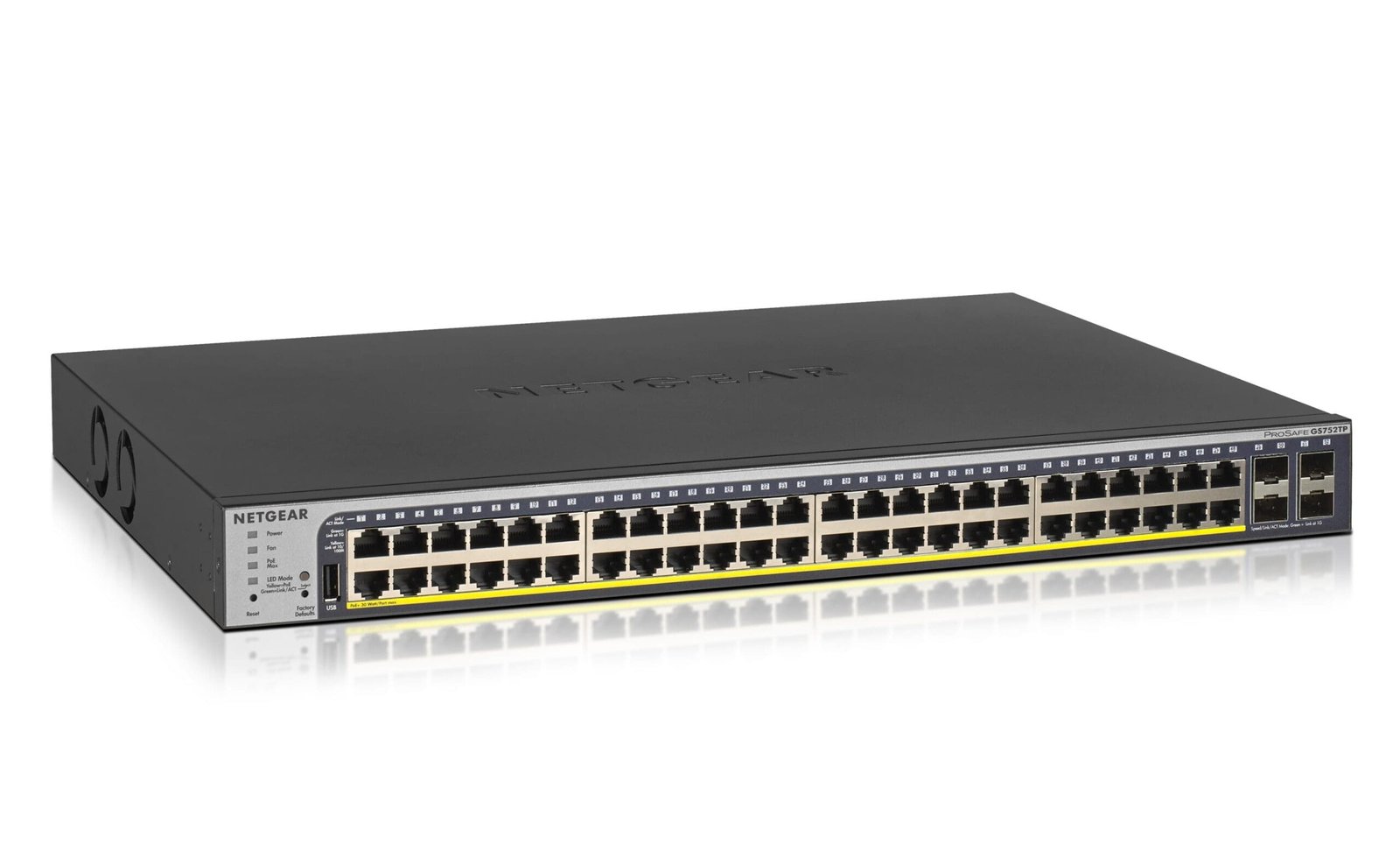

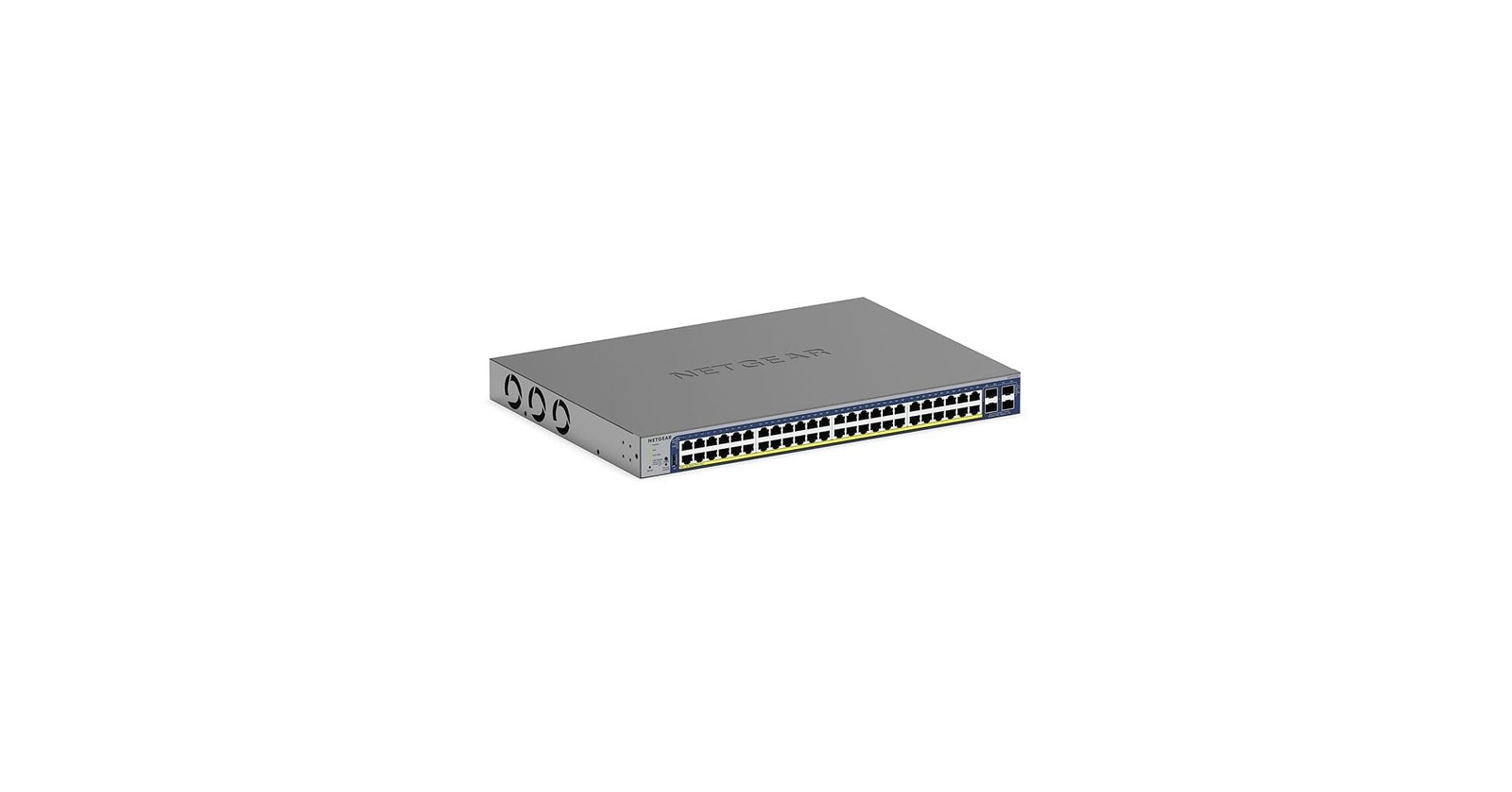

NETGEAR GS752TPP-300EUS 52-Port Gigabit PoE+ Smart Switch
The NETGEAR GS752TPP-300EUS 52Port Gigabit PoE+Smart Switch is a high-performance, smart-managed switch designed for medium to large enterprise networks requiring reliable Power over Ethernet (PoE+) and advanced traffic management. This 52-port Gigabit Ethernet switch supports Layer 2/3/4 functionalities, providing robust network segmentation, multicast management, and VLAN support for optimized traffic flow. With 4 SFP module slots for fiber uplinks, the GS752TPP integrates seamlessly into modern high-speed network infrastructures.
Key Features
-
Smart-Managed Switching
Layer 2/3/4 support with VLANs, ACLs, multicast filtering, and DHCP snooping for efficient network traffic control. -
PoE+ Capabilities
48 PoE+ ports deliver up to 760W to power devices such as IP phones, access points, and cameras. -
Fiber Uplink Flexibility
Includes 4 SFP slots for high-speed fiber connectivity to backbone networks. -
High Performance & Reliability
104 Gbps switching capacity with 16,000 MAC address entries and 1.5 MB packet buffer memory. -
Stackable & Rack-Mountable Design
Supports redundant fans and scalable deployment with a robust gray chassis. -
Advanced Security & Management
IEEE 802.1D/Q/s/w, 802.3ad link aggregation, ACL support, and multicast group filtering. -
Environmental Adaptability
Operates at 0–50°C with 0–90% humidity and stores safely at -20–70°C.
Specifications
| Feature | Specification |
|---|---|
| Model | NETGEAR GS752TPP-300EUS |
| Switch Type | Managed |
| Switch Layer | L2/L3/L4 |
| Ports | 48 × Gigabit Ethernet (10/100/1000) PoE+, 4 × SFP, 1 × USB Type-A |
| PoE/PoE+ Power | 48 ports, 760 W total |
| Switching Capacity | 104 Gbps |
| MAC Address Table | 16,000 entries |
| Packet Buffer Memory | 1.5 MB |
| Latency | 4.411 µs (1 Gbps), 9.617 µs (10–100 Mbps) |
| VLAN Support | Yes, up to 256 VLANs |
| Multicast Groups | 512 filtered |
| Processor | ARM Cortex-A55, 800 MHz, 512 MB memory, 64 MB flash |
| Noise Level | 39.3 dB |
| Stackable | Yes |
| Redundant Fans | Yes, 3 fans |
| Rack Mountable | Yes |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–70°C |
| Operating Humidity | 0–90% |
| Storage Humidity | 0–95% |
| Certifications | CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA |
| Power Consumption | Typical: 49 W, Max: 861 W |
| Color | Gray |
| Weight | 5.03 kg |
| Dimensions | 440 × 310 × 432 mm (W × D × H) |
What’s in the Box
-
1 × NETGEAR GS752TPP-300EUS Managed Switch
-
Rack Mounting Kit
-
Power Cord
-
Quick Start Guide / User Manual
Why Choose NETGEAR GS752TPP-300EUS
-
Delivers reliable gigabit connectivity for PoE-powered devices.
-
Supports advanced network management for business-critical applications.
-
Stackable and rack-mountable for scalable network growth.
-
Robust hardware with redundant fans ensures uninterrupted operation.
-
Compatible with cloud-managed solutions for remote monitoring and configuration.
