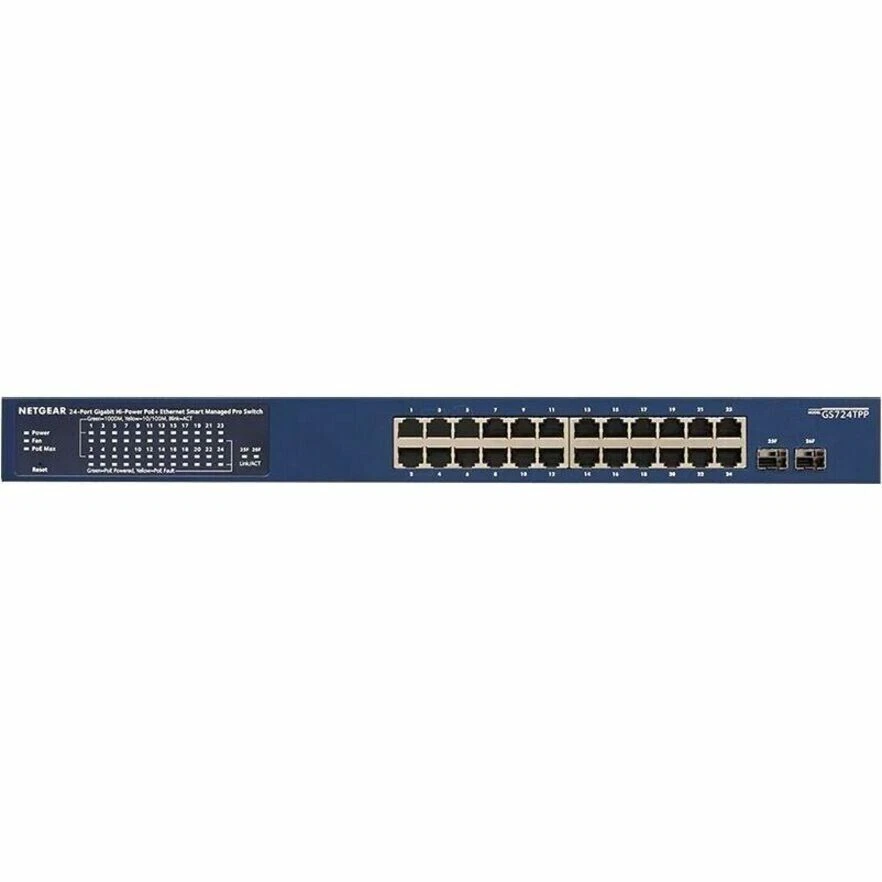

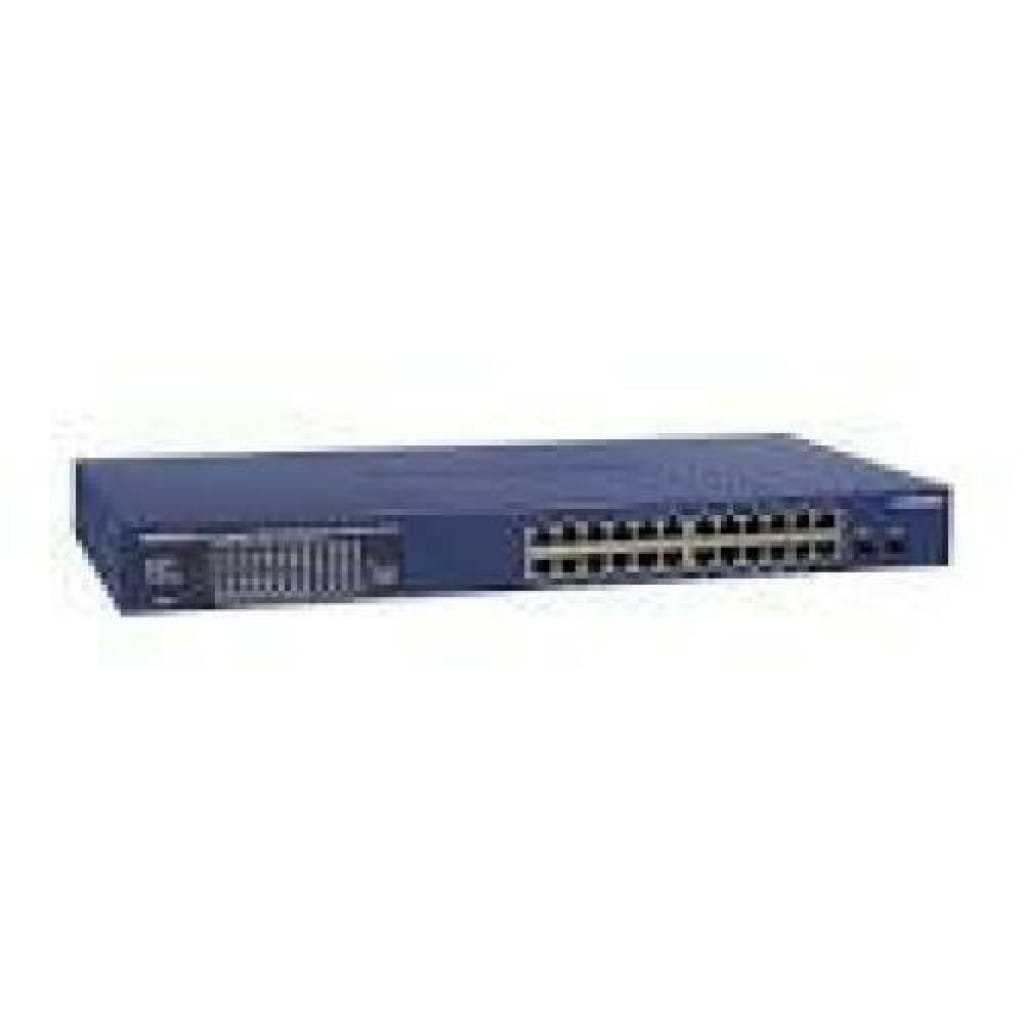

NETGEAR GS724TPP-300EUS 24P GE POE+ SMART SWITCH
The NETGEAR GS724TPP-300EUS 24P GE POE+ SMART SWITCH is a next-generation 24-Port Gigabit Smart Managed Pro Switch engineered for high-density Power over Ethernet (PoE+) deployments in modern SMB, enterprise branch, and surveillance environments. Featuring a robust 231W total PoE budget, dual dedicated SFP uplinks, and advanced Layer 2 switching capabilities, the GS724TPP enables seamless integration of data, voice, and video networks while ensuring uncompromising performance and security.
Key Features
-
24× Gigabit PoE+ Ports (802.3at)
Deliver up to 190W per port with a total 231W PoE power budget, ideal for IP surveillance, VoIP, and WiFi 6/6E access points. -
2× SFP Fiber Uplinks
Ensures reliable high-speed distribution and backbone connectivity. -
Smart Managed Layer 2 Switching
Supports VLANs, link aggregation, spanning tree, traffic prioritization, and loop prevention for optimized network segmentation. -
Cloud-Manageable Architecture
Fully compatible with NETGEAR Insight for remote monitoring, configuration, and alerts. -
Advanced Network Security
Includes ACLs, DHCP Snooping, IGMP Snooping, and 802.1X-based access control. -
Quiet, Efficient Cooling System
Features redundant dual-fan architecture for continuous and stable operation. -
High Performance Hardware
Powered by an ARM Cortex-A55 CPU with 512 MB RAM and 64 MB flash memory. -
Rack-Mountable Metal Chassis
1U standard rack form factor suitable for professional network installations.
Specifications
| Feature | Specification |
|---|---|
| Model | NETGEAR GS724TPP-300EUS |
| Switch Type | Smart Managed |
| Switching Layer | Layer 2 |
| Ethernet Ports | 24 × Gigabit RJ-45 (10/100/1000) |
| PoE Support | PoE+ (802.3at) |
| PoE Budget | 231.07 W Total |
| PoE Power Per Port | Up to 190 W |
| SFP Uplink Ports | 2 × SFP |
| SFP Slots Qty | 2 |
| Processor | ARM Cortex-A55 800 MHz |
| Internal Memory | 512 MB |
| Flash Memory | 64 MB |
| Packet Buffer | 1.5 MB |
| Switching Capacity | 52 Gbps |
| MTBF | 1,784,610 hours |
| VLAN Support | Yes (Up to 256 VLANs) |
| ACL Support | Yes (100 IPv4 ACL entries) |
| IGMP Snooping | Yes |
| Cloud Management | Supported |
| LED Indicators | Activity, Link, Speed, PoE, Power |
| Fans | 2 × Redundant Cooling Fans |
| Operating Temperature | 0°C – 50°C |
| Storage Temperature | -20°C – 70°C |
| Operating Humidity | 0–95% RH |
| Power Consumption (Max) | 20.69 W |
| Power Consumption (Typical) | 11.3 W |
| Power Supply | Included |
| Dimensions | 440 × 257 × 43.2 mm |
| Weight | 3.15 kg |
| Color | Gray |
| Rack Mounting | Yes (1U) |
| Noise Level | 26.1 dB |
| Product Code (SKU) | 1721823 |
What’s in the Box
-
1 × NETGEAR GS724TPP-300EUS Smart Managed PoE+ Switch
-
Rack-Mount Kit
-
Power Cable
-
Quick Installation Guide
-
Documentation Package
Why Choose NETGEAR GS724TPP
-
Optimized for SMB environments needing high-power PoE for access points and surveillance.
-
Cloud-manageable for remote deployment and troubleshooting.
-
Enterprise-grade security and multicast support.
-
Rugged and reliable with dual fans and high MTBF rating.
-
Future-proof Layer 2 features for converged voice, video, and data networks.
-
Energy-efficient and quiet for office, server room, or IDF deployment.
