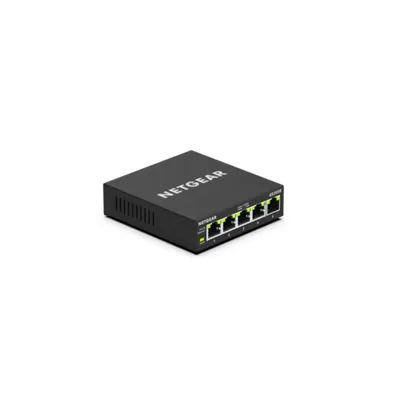

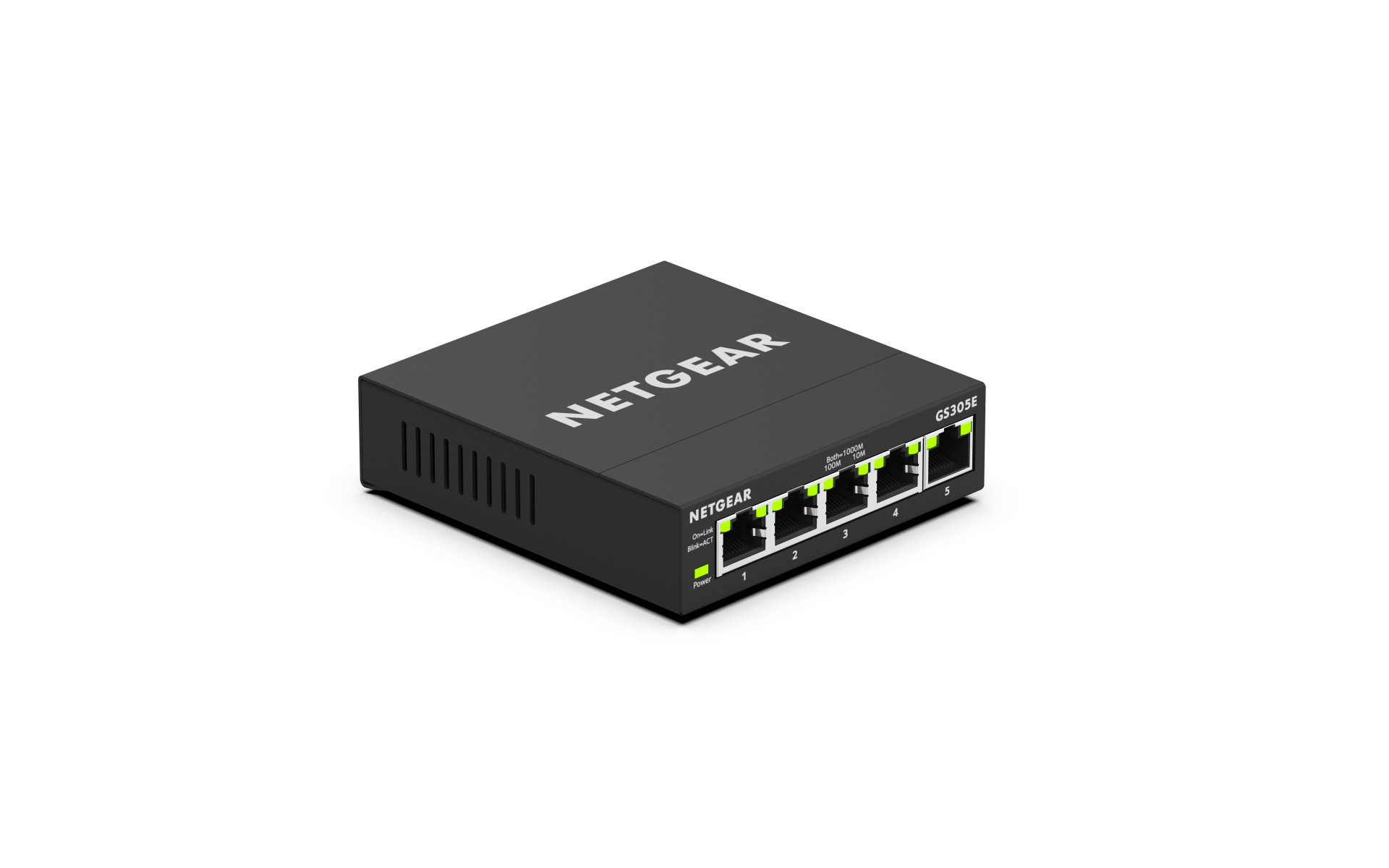

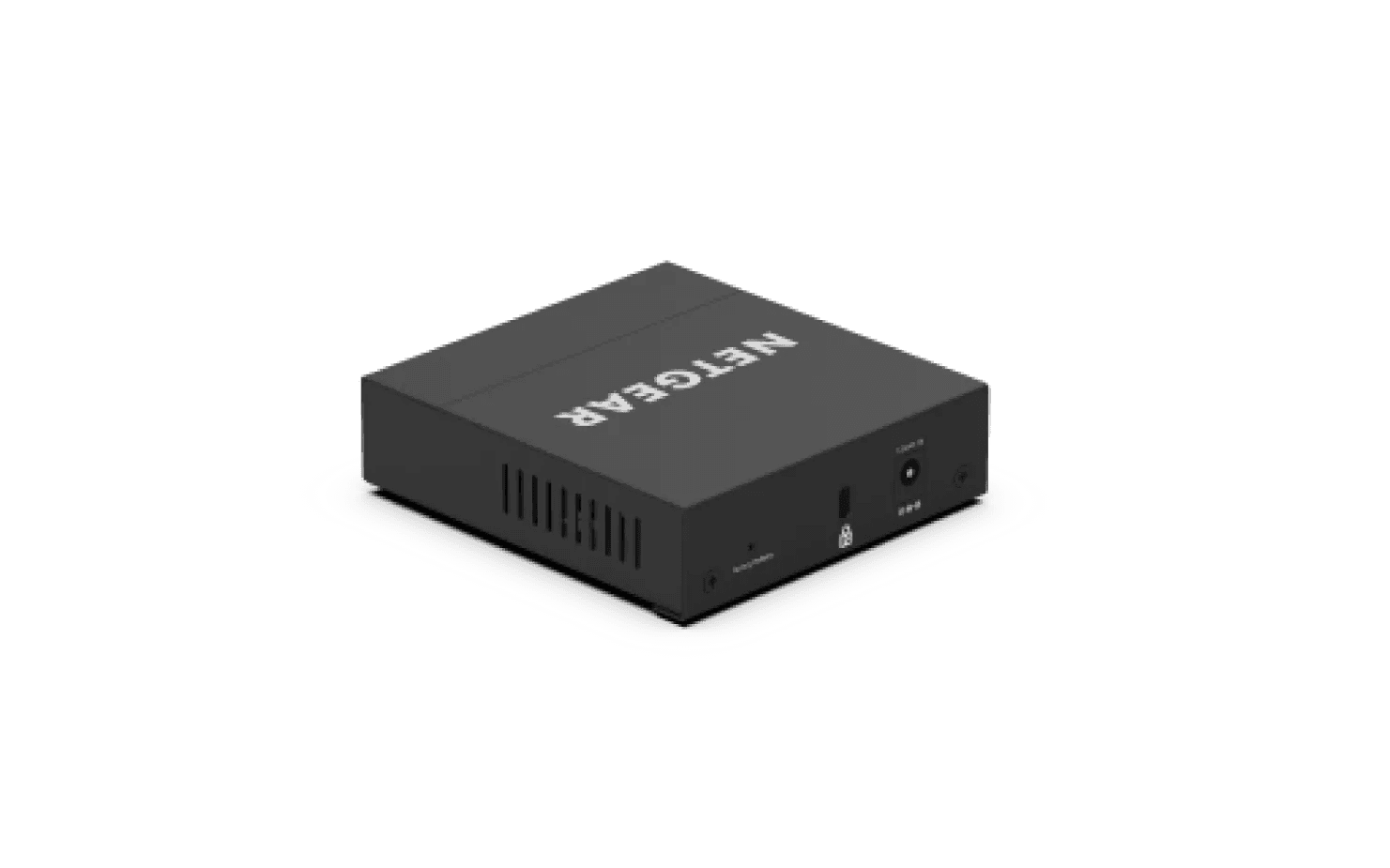

NETGEAR GS305E-100PES 5-Port Gigabit Smart Plus Switch
The NETGEAR GS305E-100PES is a compact, high-performance 5-Port Gigabit Smart Managed Plus Switch engineered to enhance small office, home office (SOHO), and small business networks. Delivering advanced Layer 2 traffic management features such as VLANs, QoS prioritization, rate limiting, DoS protection, and port mirroring—this switch elevates basic unmanaged networking to a more secure and optimized environment.
Key Features
-
5 × Gigabit Ethernet Ports
Provides 10/100/1000 Mbps auto-negotiating ports for high-speed wired connections. -
Smart Managed Plus Functionality
Adds essential manageability features beyond unmanaged switches, without increasing complexity. -
VLAN Support (Port-Based & Tagged)
Enables traffic segmentation across up to 64 VLANs for improved network organization and security. -
Quality of Service (QoS)
Prioritizes critical traffic, including voice, video, and latency-sensitive data. -
Auto DoS Protection
Automatically detects and mitigates denial-of-service attacks. -
Virtual Cable Test (VCT)
Troubleshoots cabling faults remotely to reduce downtime. -
Port Mirroring
Allows detailed network monitoring and diagnostics. -
Rate Limiting & Broadcast Storm Control
Maintains bandwidth efficiency and prevents network congestion. -
Fanless, Silent Operation
Ideal for desktops, office spaces, and quiet environments.
Specifications
| Feature | Specification |
|---|---|
| Model | NETGEAR GS305E-100PES |
| Switch Type | Smart Managed Plus |
| Layer | Layer 2 (L2) |
| Ports | 5 × Gigabit RJ45 (10/100/1000 Mbps) |
| SFP Slots | None |
| Switching Capacity | 10 Gbps |
| MAC Address Table | 8,000 entries |
| Buffer Size | 128 KB |
| VLAN Support | Up to 64 VLANs (Port-based, Tagged) |
| QoS Support | Yes |
| Rate Limiting | Yes |
| Port Mirroring | Yes |
| Flow Control | IEEE 802.3x |
| DoS Protection | Yes |
| Loop Detection | Yes |
| Virtual Cable Test | Yes |
| Jumbo Frames | Up to 9000 bytes |
| LED Indicators | Power, Link/Activity, Speed |
| Rack Mountable | No (Desktop design) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 0% – 90% RH |
| Altitude | 0–3000 m |
| Noise Level | 0 dB (Fanless) |
| Dimensions | 94 × 100 × 27 mm |
| Weight | 250 g |
| MTBF | 2,531,294 hours |
| Package Dimensions | 153 × 237 × 61 mm |
| Package Weight | 600 g |
| Compliance Standards | IEEE 802.1Q, 802.1p, 802.3, 802.3u, 802.3ab, 802.3x, 802.3az |
| HS Code | 85176990 |
What’s in the Box
-
1 × NETGEAR GS305E-100PES Switch
-
Power Adapter
-
Installation Guide
-
Safety Documentation
Why Choose the NETGEAR GS305E-100PES
-
Enterprise-grade features at an unmanaged-switch price
-
VLAN and QoS capabilities improve security and traffic control
-
Easy management via web GUI or NETGEAR Utility
-
Zero-noise fanless operation
-
Ideal for SOHO networks, IP cameras, IP phones, and small business deployments
-
High reliability with over 2.5 million hours MTBF
-
Compact, durable metal housing perfect for desktops
