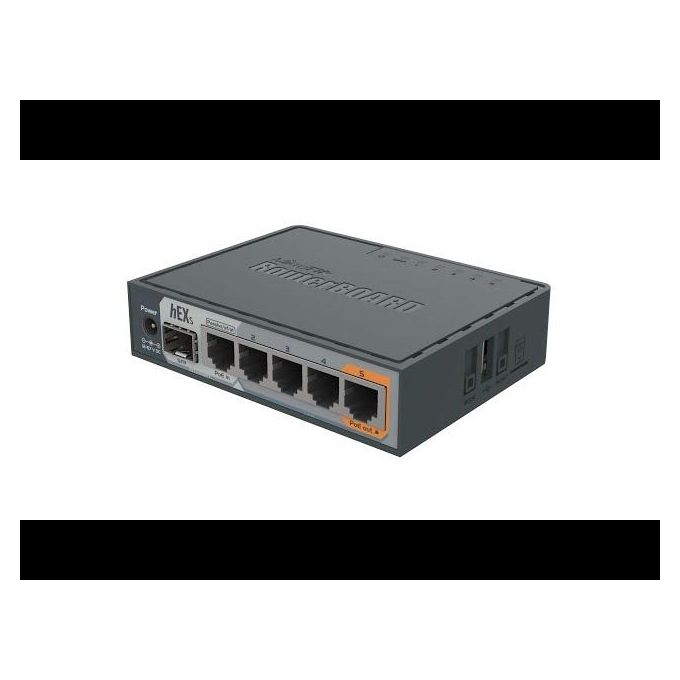

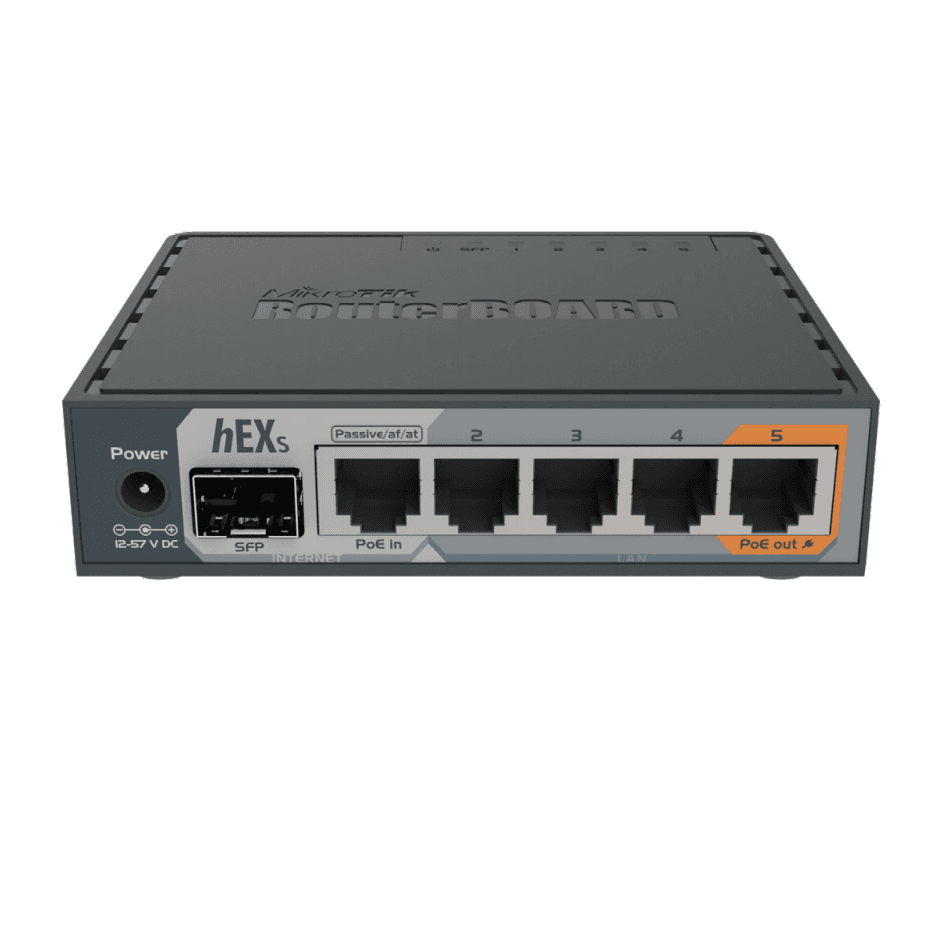

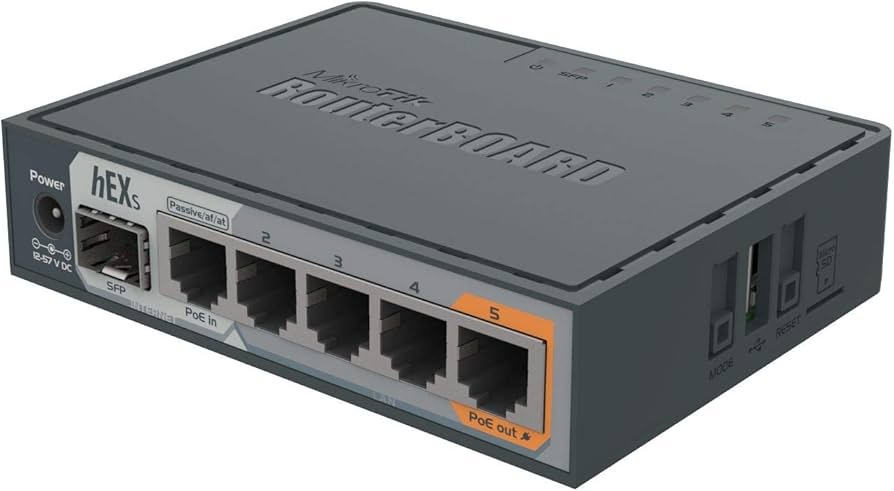

Mikrotik RB760iGS hEX S 5x Gigabit Ethernet Router
The MikroTik hEX S is a powerful, compact 5-port Gigabit Ethernet router with SFP support, PoE output, and a dual-core 880 MHz CPU. Designed for locations where wireless connectivity is not required, it delivers advanced RouterOS features, IPsec hardware encryption, and supports The Dude server package for network monitoring. Ideal for small offices, network enthusiasts, and professional setups.
Key Features
-
High-Performance Dual-Core CPU
880 MHz MT7621A CPU with 2 cores and 4 threads, paired with 256 MB RAM, for fast and reliable routing. -
Five Gigabit Ethernet Ports + SFP Port
Supports high-speed wired connections; last port offers PoE output for powering other passive PoE devices. -
IPsec Hardware Encryption
Provides secure VPN connections with low CPU overhead. -
Advanced RouterOS L4
Full feature set including firewall, QoS, VLANs, and advanced routing. -
Flexible Storage & USB Support
16 MB flash storage, microSD slot for fast read/write, and USB Type-A port with reset/power capability. -
Energy-Efficient & Compact
Passive cooling, low power consumption (6–24 W), compact dimensions (113 × 89 × 28 mm).
Specifications
| Feature | Specification |
|---|---|
| Product Code | RB760iGS |
| Architecture | MMIPS |
| CPU Model | MT7621A Dual Core 880 MHz |
| RAM | 256 MB |
| Storage | 16 MB Flash |
| SFP Port | 1 × 1.25 Gbit/s |
| Ethernet Ports | 5 × Gigabit |
| PoE Out | Port 5, Passive PoE up to 57V, 500 mA |
| USB Ports | 1 × USB 2.0 |
| microSD Slot | 1 × microSD |
| RouterOS License | Level 4 |
| MTBF | ~100,000 hours at 25°C |
| Operating Temp | -40°C to 70°C |
| Certifications | CE, EAC, RoHS |
| Dimensions | 113 × 89 × 28 mm |
| Weight | 0.3 kg (approx.) |
| Power Input | 12–57 V (DC jack or PoE-IN 802.3af/at) |
| Max Power Consumption | 24 W |
Included in the Box
-
1 × MikroTik hEX S Router (RB760iGS)
-
1 × 24V 1.2A Power Adapter
-
Mounting Accessories (if applicable)
-
Preinstalled RouterOS L4 license
Why Choose MikroTik hEX S
-
Reliable, high-speed wired connectivity for offices and small networks
-
Supports advanced routing, firewall, and VPN features
-
PoE output to power other devices
-
Compact, passively cooled design
-
Ready to use with preinstalled RouterOS and free software updates
