JM-468 RJ45 RJ11 Network Cable Tester

JM-468 Network Tester

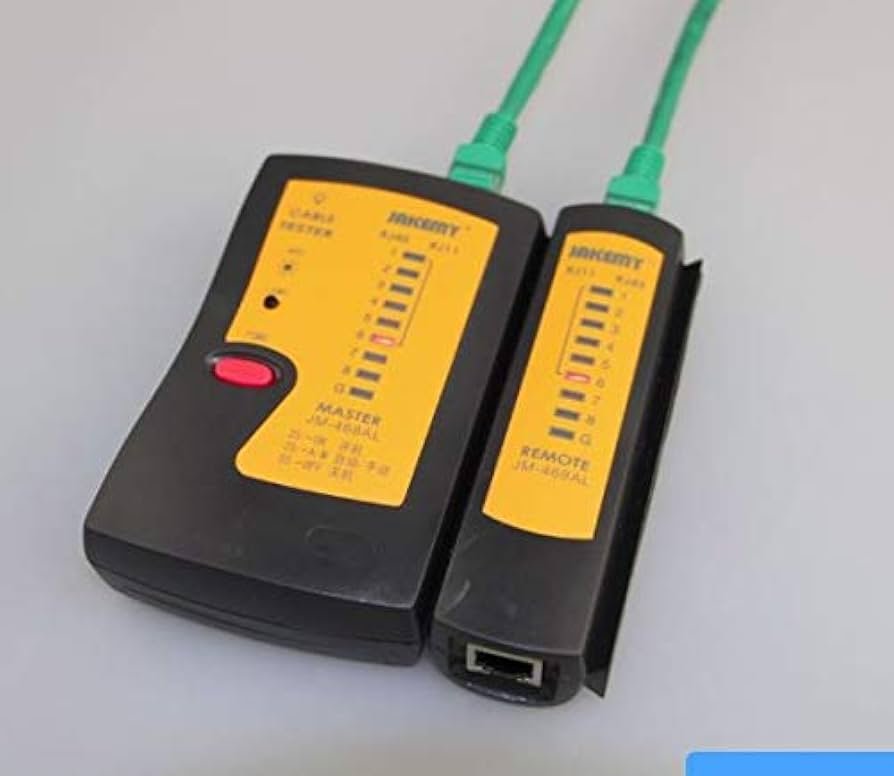

The JM-468 Cable Tester serves as a fundamental diagnostic tool for network engineers and IT professionals maintaining structured cabling systems. This device provides a reliable method for verifying the physical layer integrity of Ethernet and telephony connections. It supports multiple connector types including RJ45, RJ11, and RJ12, ensuring compatibility across various networking standards. The architecture consists of a master unit and a detachable remote module. This design allows for the testing of long-distance cable runs that span across different rooms or floor levels. The unit utilizes a sequential LED display to indicate the pin-to-pin wiring configuration of the cable under test.

Key Features

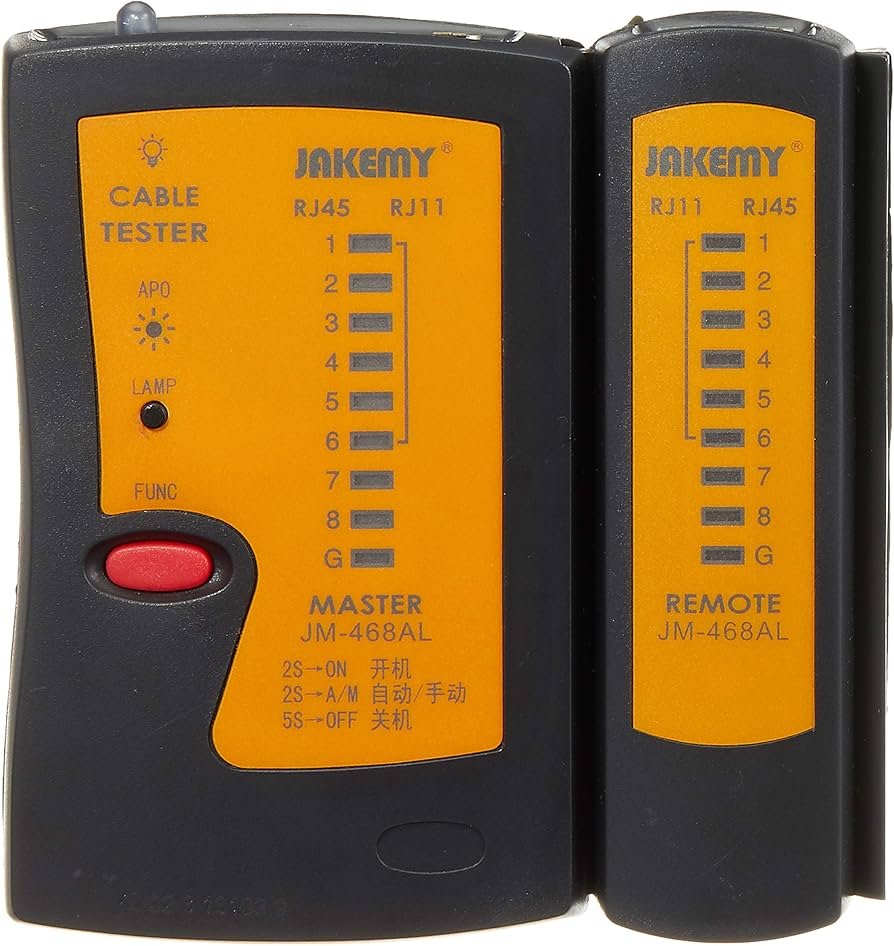

• Dual-Speed Scanning Modes
  The hardware includes a toggle switch to select between fast and slow scanning speeds for detailed pin-out observation.
• Detachable Remote Termination
  The remote unit slides off the main chassis to facilitate end-to-end testing of installed patch panels and wall outlets.
• Comprehensive Fault Detection
  The internal circuitry identifies critical wiring issues including open circuits, shorted pairs, and crossed-wire configurations.
• Multi-Interface Compatibility
  • RJ45 support for Cat5, Cat5e, Cat6, and Cat7 Ethernet cables
  • RJ11 and RJ12 support for standard telecommunication lines
  • Shielded (STP) and Unshielded (UTP) cable testing capabilities

Specifications

What’s in the Box

• Master Testing Unit
• Remote Testing Unit
• Synthetic Leather Carrying Case
• User Documentation

Why Choose This Diagnostic Tool

• This testing unit simplifies the troubleshooting process for complex network installations by providing immediate visual feedback on wiring continuity.
• The rugged ABS housing ensures the device withstands the rigors of field use in data centers and construction sites.
• The JM-468 system offers a cost-effective solution for rapid deployment verification without the need for expensive certification equipment.
