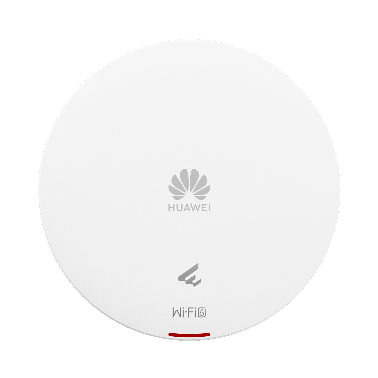

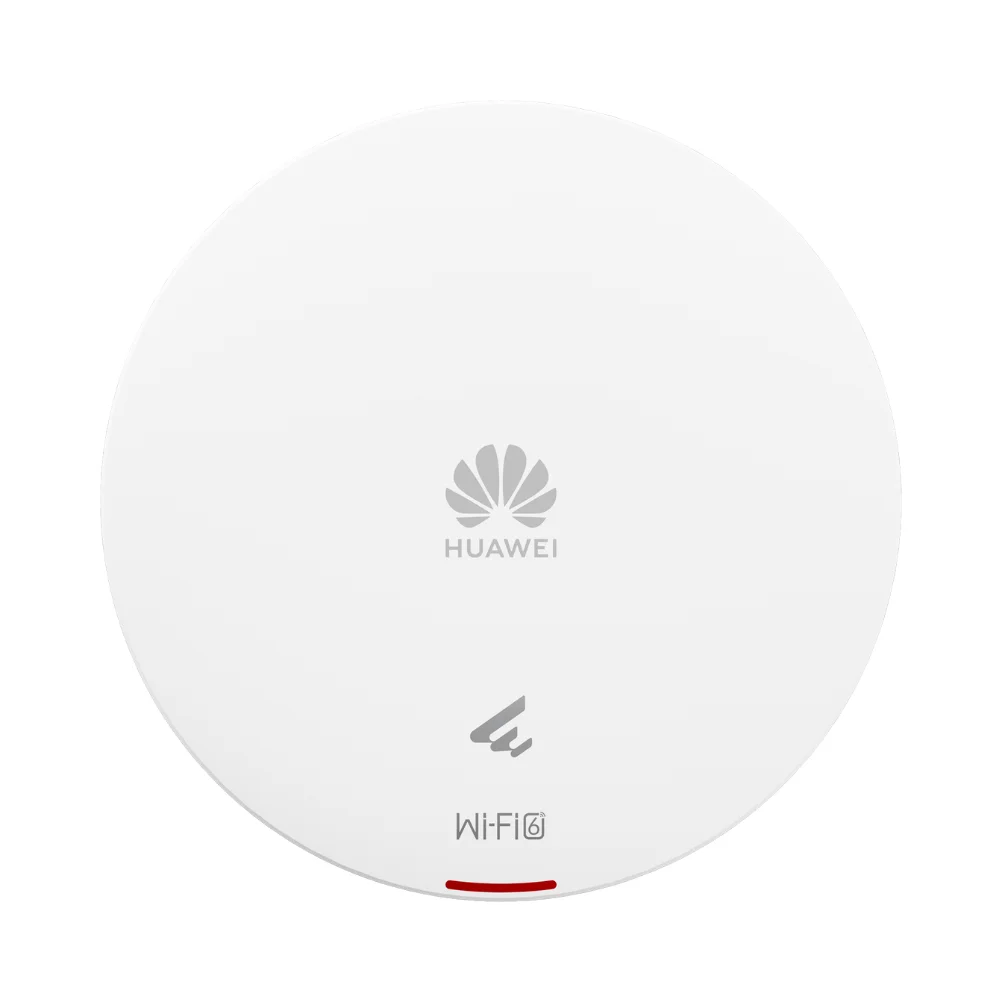

eKitEngine AP361 Wireless AP
The Huawei eKitEngine AP361 provides enterprise-grade Wi-Fi 6 (802.11ax) connectivity for small to medium business environments. This dual-radio indoor access point delivers a combined peak data rate of 1.775 Gbps. It utilizes the 2.4 GHz and 5 GHz bands simultaneously to maximize spectral efficiency. Consequently, network administrators can maintain stable connections for high-density client scenarios. The hardware architecture supports advanced spatial multiplexing and modulation techniques. It functions effectively in offices, retail spaces, and education facilities requiring reliable wireless throughput.
Key Features
-
Advanced Wi-Fi 6 Standard
The hardware supports 802.11ax protocols including OFDMA and MU-MIMO for improved multi-user efficiency. -
Dual-Band Radio Performance
- Provides 574 Mbps on the 2.4 GHz frequency band.
- Delivers 1.2 Gbps on the 5 GHz frequency band.
- Supports 2×2 MIMO spatial streams for both radios.
-
Flexible Power Options
This unit operates using standard 802.3af/at Power over Ethernet or a 12V DC input.
Specifications
| Feature | Specification |
|---|---|
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Max Throughput | 1.775 Gbps Aggregate |
| MIMO | 2×2:2 MU-MIMO |
| Ethernet Port | 1 x 10/100/1000M Base-T |
| Antenna Type | Built-in Smart Antennas |
What’s in the Box
-
Huawei eKitEngine AP361 Access Point
-
Mounting Bracket and Screws
-
Quick Start Guide
Why Choose This Access Point
-
High-density processing capabilities ensure the system handles multiple concurrent client sessions without packet loss.
-
Integrated Smart Antennas automatically adjust signal direction to bypass interference and extend coverage range.
-
Simplified management via the Huawei eKit mobile application allows for rapid deployment and remote troubleshooting.
-
Enhanced security protocols including WPA3 and rogue AP detection protect the internal network from unauthorized access.
