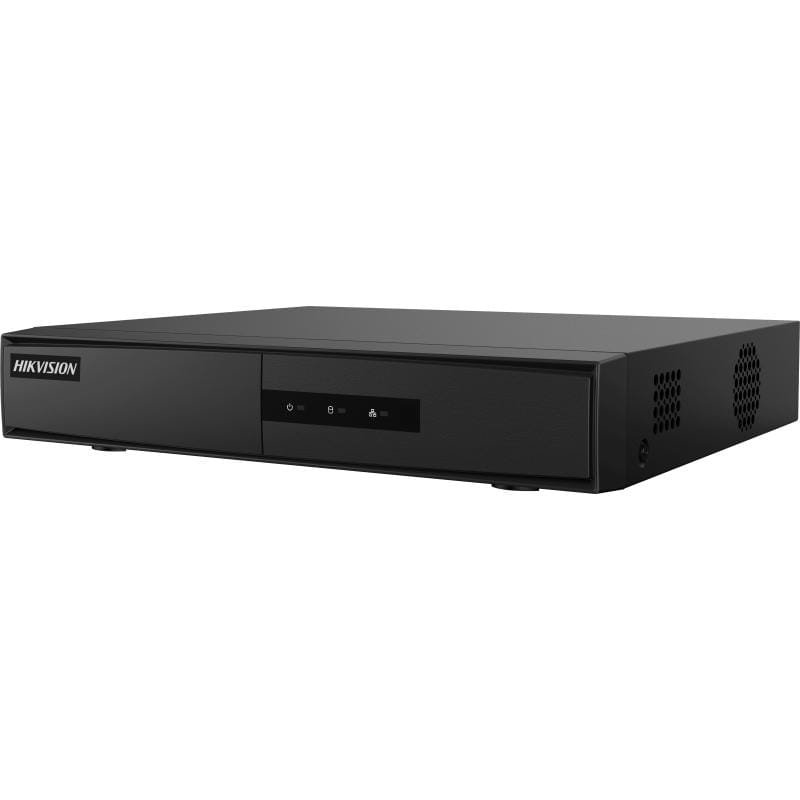

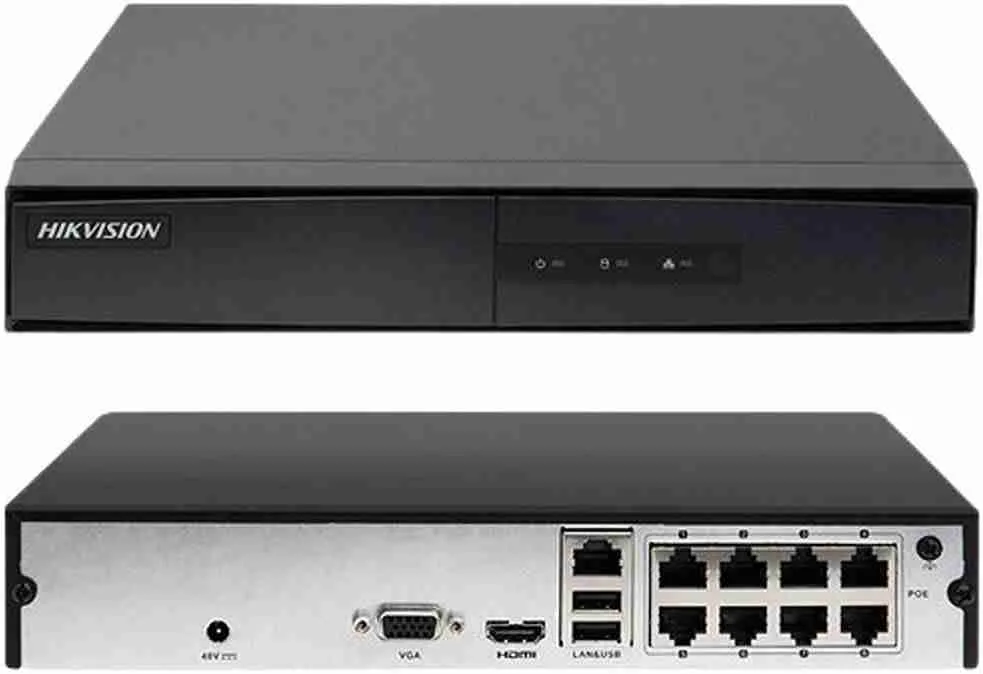

Hikvision DS-7108NI-Q1/8P/M Network Video Recorder
The Hikvision 8-Channel PoE NVR provides a robust centralized management solution for small to medium-scale IP surveillance deployments. This Q Series hardware supports up to eight independent IP camera inputs with a combined incoming bandwidth of 80 Mbps. Additionally, the integrated Power over Ethernet (PoE) switch simplifies infrastructure by delivering both data and power over a single Cat5e or Cat6 cable. Consequently, installers can reduce deployment time and cable management complexity in the server room or telecommunications closet. The system utilizes a standalone 1U metal chassis for improved thermal dissipation compared to plastic alternatives.
Key Features
-
Advanced Video Compression
The unit utilizes H.265+ smart codecs to optimize storage efficiency and reduce network bandwidth consumption by up to 75%. -
Integrated PoE Connectivity
- Eight independent 10/100 Mbps PoE network interfaces.
- Plug-and-play camera discovery for rapid system configuration.
-
Storage and Decoding
This recording device features one SATA interface supporting high-capacity hard drives for long-term video retention and archival.
Specifications
| Feature | Specification |
|---|---|
| IP Video Input | 8-Channel up to 4MP Resolution |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Video Compression | H.265/H.265+/H.264/H.264+ |
| PoE Interfaces | 8 x RJ-45 10/100 Mbps self-adaptive |
| SATA Interface | 1 SATA interface (Up to 6TB per disk) |
| Chassis Material | 1U Metal Case (315mm) |
| HDMI/VGA Output | 1-ch, 1920 × 1080p/60Hz |
What’s in the Box
-
Hikvision Q Series 8-Channel NVR Unit
-
Power Adapter and Cable
-
USB Mouse for Local Interface Control
-
SATA Data and Power Cables for HDD Installation
-
Quick Start Guide and Mounting Hardware
Why Choose This Recording System
-
High-efficiency H.265+ encoding reduces the total cost of ownership by lowering hard drive capacity requirements.
-
The 80Mbps throughput capacity ensures stable recording even when multiple high-resolution cameras operate simultaneously.
-
Integrated PoE ports eliminate the need for external midspan injectors or separate power supplies for each camera.
-
The metal chassis design provides superior durability and electromagnetic interference shielding in industrial environments.
-
Therefore, IT professionals can rely on this hardware for consistent 24/7 surveillance monitoring without performance degradation.
