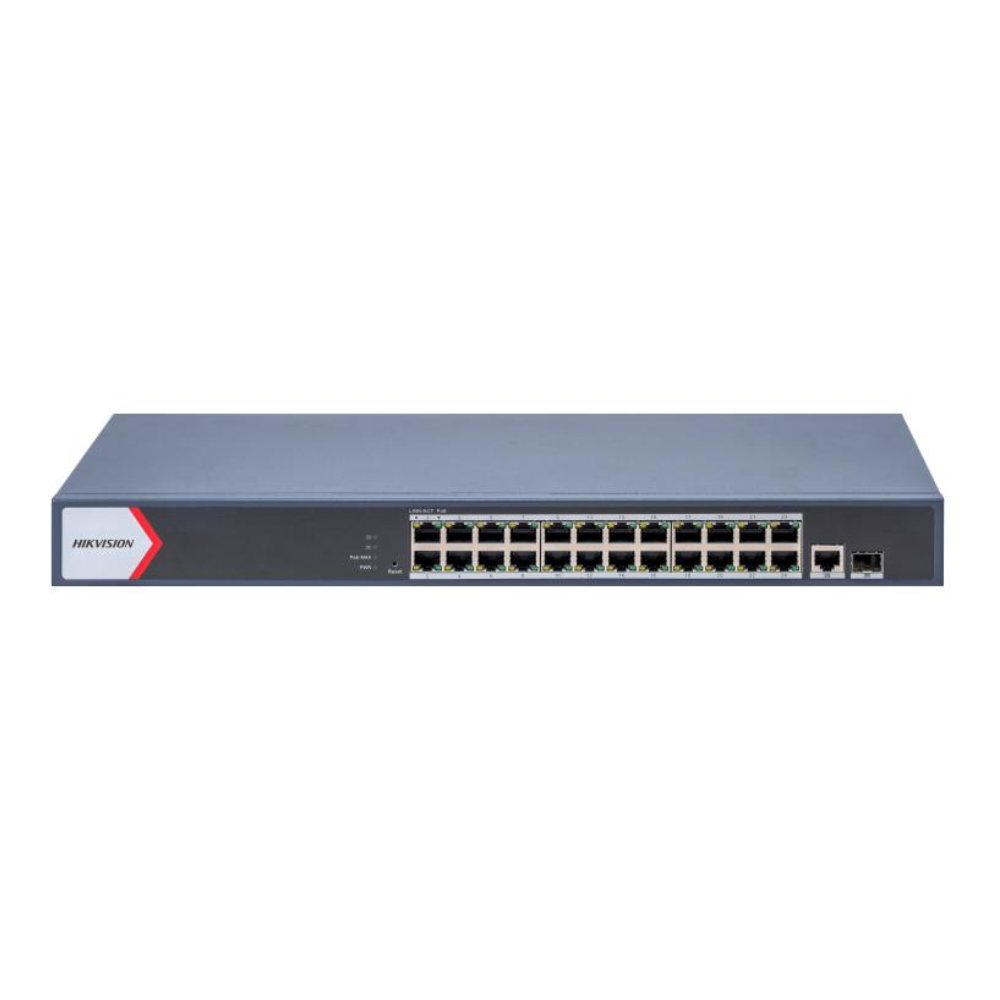

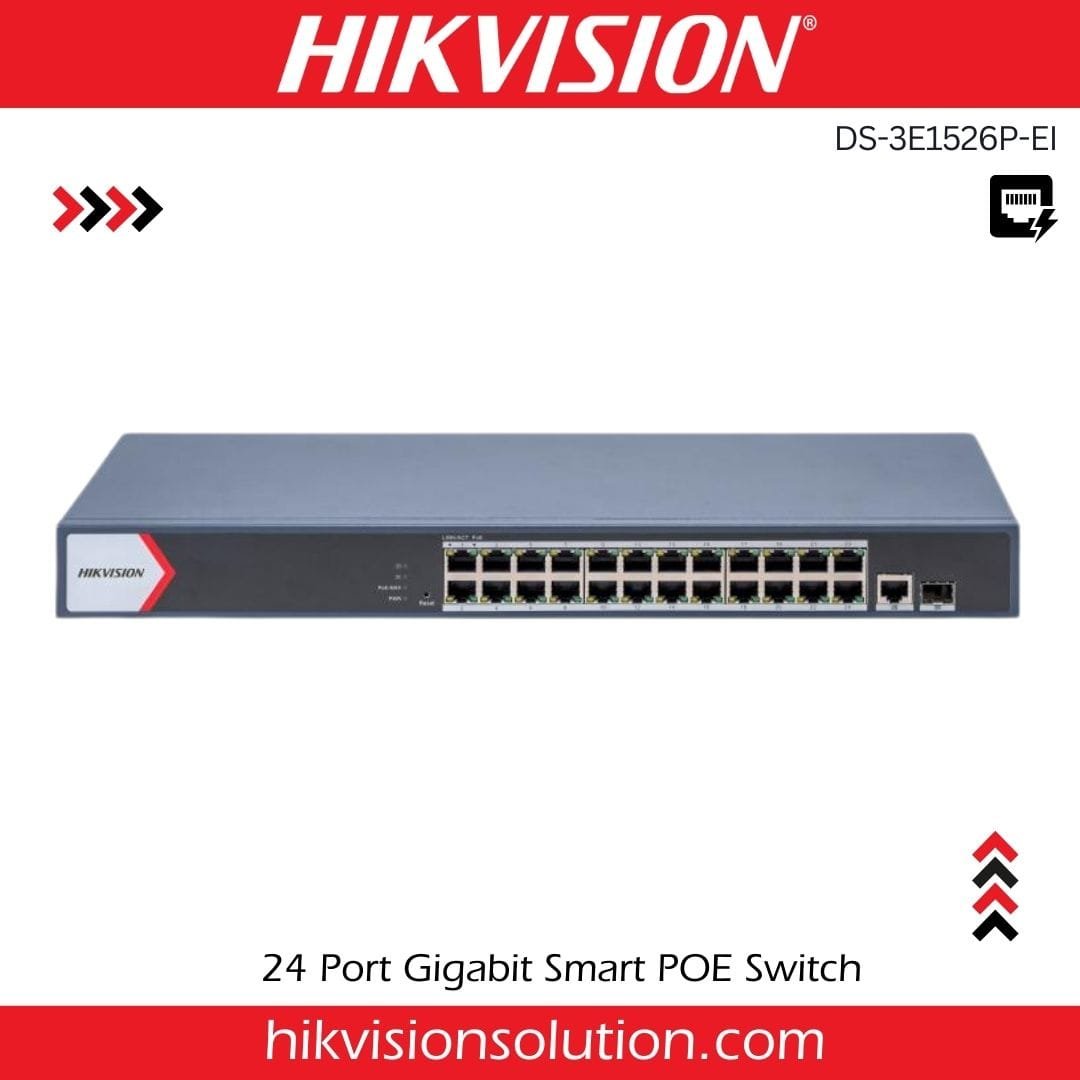

Hikvision DS-3E1526P-EI 24Port Gigabit Smart PoE Switch

Hikvision DS-3E1526P-EI 24Port Gigabit Smart PoE Switch

The Hikvision DS-3E1526P-EI is a high-performance 24-Port Gigabit Smart PoE Switch engineered for enterprise networks, IP surveillance deployments, and large-scale security infrastructures requiring intelligent power delivery and efficient Layer 2 management. Equipped with 24 Gigabit PoE ports, 1 additional Gigabit uplink port, and 1 Gigabit SFP fiber port, this switch supports high-bandwidth transmission and scalable system expansion.

Key Features

• 24 × Gigabit PoE RJ45 Ports + 1× Gigabit RJ45 + 1× Gigabit SFP Uplink
  Provides flexible copper and fiber uplinks for high-performance network expansion.

• 370 W Total PoE Power Budget
  Supports IEEE 802.3af/at standards with up to 30 W per port for cameras, APs, and IoT devices.

• Unified Cloud Management
  Integrates with Hik-Partner Pro for remote monitoring, device configuration, firmware updates, and alarm notifications.

• 300 m Long-Range PoE Mode
  Extends PoE transmission from the standard 100 m to up to 300 m for long-distance camera deployments.

• 6 kV Surge Protection
  Industrial-grade lightning and surge resistance for outdoor and harsh-environment applications.

• Intelligent PoE Watchdog
  Automatically detects and restarts unresponsive powered devices to ensure system reliability.

• Advanced Visualized Network Topology
  Real-time graphical topology mapping, port statistics, and bandwidth monitoring.

• Robust Metal Rack-Mount Design
  Built with a durable steel chassis engineered for continuous operation in enterprise and surveillance environments.

Specifications

General

Network Parameters

PoE Power Supply

Software Features

Long-Range Mode

• Ports 1–24 support up to 300 m PoE transmission

• Distance may vary depending on cable quality and camera model

PoE Watchdog

• Automatic device detection

• Restarts non-responsive IP cameras/PD devices

Link Aggregation

• Supports static link aggregation

• Enhances redundancy and multi-port load balancing

• Up to 8 aggregation groups

Loop Prevention

• Prevents broadcast storms and network loops

• Supports 802.1D STP and 802.1w RSTP

VLAN

• Supports 802.1Q VLAN

• VLAN IDs: 1–4094

• Access & Trunk modes

• Supports up to 32 VLANs

Port Isolation

• Ports 1–24 can be isolated to block inter-port communication

• Enhances network segmentation and security

System Maintenance

• Web-based management interface

• DHCP client enabled by default

• Super IP (10.180.190.200) for direct emergency access

• Cable diagnostics (open/short detection + cable length)

• Supports LLDP, port mirroring, and SNMP v1/v2c

HPP (Hik-Partner Pro Integration)

Supports the following cloud features:

1. Port rate display

2. Bandwidth utilization monitoring

3. PoE power usage monitoring

4. Topology visualization

5. Alarm status display

6. Remote port/device restart

7. Enable/disable long-range PoE mode

8. Remote firmware upgrade

Certifications

What’s in the Box

• 1 × Hikvision DS-3E1526P-EI Smart PoE Switch

• Rack-mounting ears & Screws

• Power Cable

• Quick Start Guide

Why Choose the DS-3E1526P-EI

• High-power PoE with 370 W total budget

• Ideal for IP CCTV, Wi-Fi access points, and VoIP deployments

• Cloud-enabled remote management and monitoring

• Extended 300 m long-range PoE for far-site camera installations

• Intelligent PoE watchdog reduces maintenance downtime

• Full Gigabit bandwidth for high-performance networks

• Strong industrial design with 6 kV surge protection
