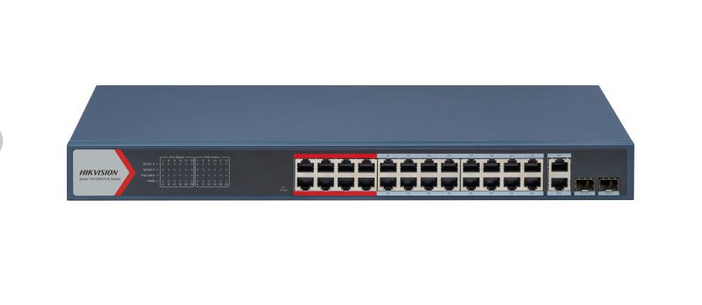

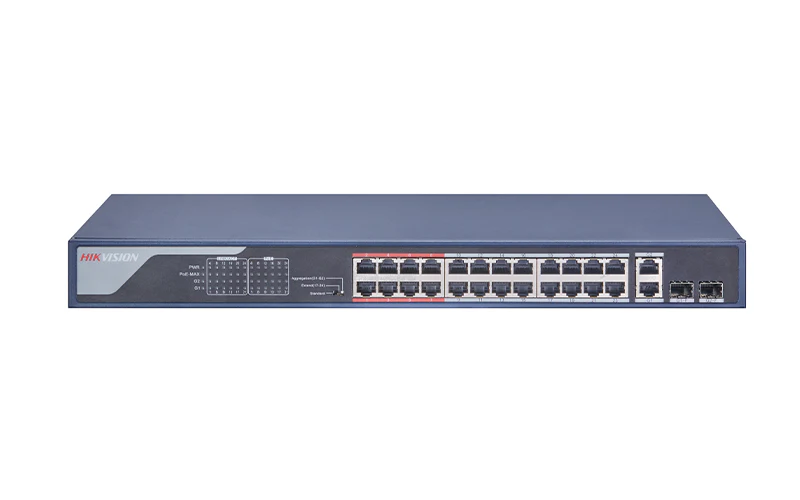

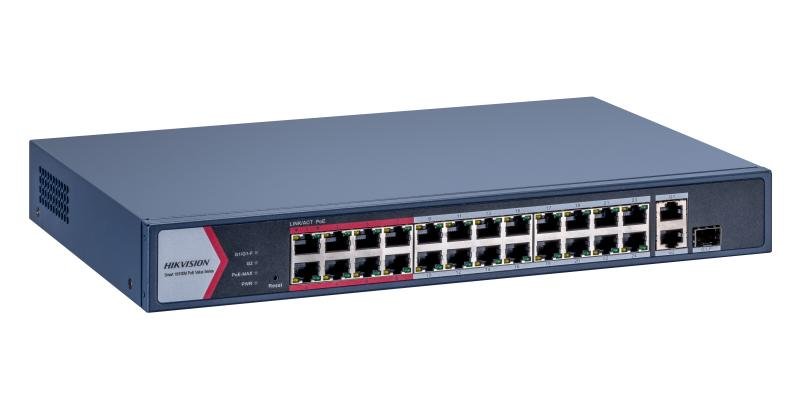

Hikvision DS-3E1326P-EI 24Port Fast Ethernet Smart PoE Switch
The Hikvision DS-3E1326P-EI is a 24-port Fast Ethernet PoE Smart Managed Switch designed for surveillance, enterprise, and industrial networks requiring robust power-over-Ethernet deployment and intelligent Layer 2 management. With 24× 10/100 Mbps PoE ports and 2× Gigabit combo uplinks, it delivers high-performance connectivity for IP cameras, access points, and VoIP devices.
Key Features
-
24× 10/100 Mbps PoE Ports + 2× Gigabit Uplinks
Provides full connectivity for powered devices such as cameras and APs. -
High PoE Power Budget
Total 370 W PoE output, with 30 W max per port, supporting IEEE 802.3af/at standards. -
Long-Range PoE Transmission
Ports support PoE delivery up to 300 meters, depending on cable and device type. -
Advanced Layer 2 Management
Supports VLANs, STP/RSTP, link aggregation, port isolation, and port mirroring. -
PoE Watchdog
Auto-detects and restarts unresponsive IP cameras, ensuring continuous operation. -
Hik-Partner Pro & Hik-Central Pro Support
Remote device activation, monitoring, firmware upgrades, and topology visualization. -
Robust Design & Surge Protection
Metal chassis, fanless operation, and 6 kV surge protection for stable industrial deployment.
Specifications
General
| Feature | Specification |
|---|---|
| Shell | Metal |
| Net Weight | 2.83 kg |
| Gross Weight | 3.8 kg |
| Dimensions | 440 × 44 × 220.8 mm |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5%–95% (non-condensing) |
| Installation Mode | Rack-mount (mounting ears included) |
| Power Supply | 100–240 VAC, 50/60 Hz, Max. 6.3 A |
| Max Power Consumption | 400 W |
| Idle Power Consumption | 30 W |
| Surge Protection | 6 kV |
Network Parameters
| Feature | Specification |
|---|---|
| Ports | 24 × 10/100 Mbps PoE, 2 × Gigabit combo |
| MAC Address Table | 16K |
| Switching Capacity | Whole device: 14.8 Gbps; Port: 8.8 Gbps |
| Packet Forwarding Rate | Whole device: 11.01 Mpps; Port: 6.55 Mpps |
| Internal Cache | 4 Mbits |
PoE Power Supply
| Feature | Specification |
|---|---|
| PoE Standard | IEEE 802.3af/at |
| PoE Pin Assignment | 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Ports | Ports 1–24 |
| Max Port Power | 30 W |
| Total PoE Budget | 370 W |
Software Features
Long-Range PoE
-
Ports 1–24 support PoE up to 300 m (dependent on device and cable).
VIP Ports
-
Ports 1–8 forward data preferentially under high network load.
Port Isolation
-
Isolated ports cannot communicate within the group, enhancing internal network security.
PoE Watchdog
-
Automatically detects and restarts unresponsive IP cameras.
Link Aggregation
-
Supports static link aggregation, 1 aggregation group, for load balancing and redundancy.
Loop Prevention
-
Prevents network loops via 802.1D STP and 802.1w RSTP.
VLAN
-
Supports 802.1Q, configurable VLAN ID 1–4094, Access/Trunk modes, up to 4094 VLANs.
HPP Management
-
One-click activation and remote management via Hik-Partner Pro:
-
Port rate and bandwidth utilization
-
PoE power monitoring
-
Network topology display
-
Alarm monitoring
-
Port/device restart
-
Enable long-range PoE mode
-
Remote firmware upgrade
-
System Maintenance
-
Web-based management, DHCP client support, Super IP for direct access.
-
Remote management via Hik-Central Pro / Hik-Partner Pro.
-
Cable diagnostics and peer device discovery via LLDP.
-
Port mirroring for fault analysis.
Certifications
| Category | Certification |
|---|---|
| EMC | EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035; ICES-003; RCM |
| Safety | CB, CE-LVD (IEC 62368-1) |
| Chemistry | RoHS, WEEE, REACH |
What’s in the Box
-
1 × Hikvision DS-3E1326P-EI Smart PoE Switch
-
Rack-mounting ears and screws
-
Quick Installation Guide
-
Power Cable
Why Choose the DS-3E1326P-EI
-
Enterprise-grade 24-port Fast Ethernet PoE connectivity
-
Long-range PoE delivery up to 300 m
-
Intelligent Layer 2 features for network segmentation and redundancy
-
Automatic camera reboot via PoE watchdog
-
Remote management via Hik-Partner Pro and Hik-Central Pro
-
Fanless design with robust metal chassis for silent, industrial operation
