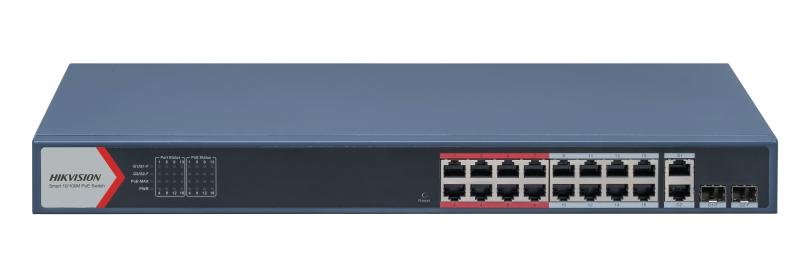

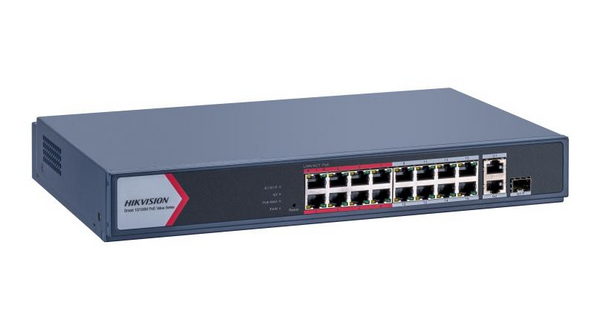

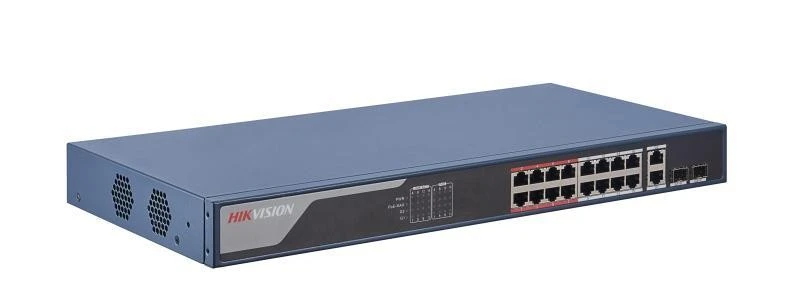

Hikvision DS-3E1318P-EI/M  16Port Ethernet Smart PoE Switch

Hikvision DS-3E1318P-EI/M  16Port Fast Ethernet Smart PoE Switch

The Hikvision DS-3E1318P-EI/M is a high-performance 16-Port Fast Ethernet Smart PoE Switch engineered for surveillance, enterprise, and SMB networks requiring robust power delivery, intelligent management, and extended-range connectivity. Purpose-built for CCTV/IP camera deployments, the switch offers 16× 10/100 Mbps PoE ports, Gigabit uplinks, and a generous 130W PoE power budget, ensuring stable operation for high-demand security systems.

Key Features

• 16 × 10/100 Mbps PoE Ports
  Delivers stable power and data transmission for IP cameras, APs, and VoIP devices.

• High-Speed Gigabit Uplinks
  Includes 1× Gigabit RJ45 port and 1× Gigabit combo (RJ45/SFP) for high-bandwidth network backhaul.

• 130W PoE Budget (802.3af/at)
  Supports up to 30W per port, ideal for power-demanding PTZ, IR, and dome cameras.

• Long-Range PoE Transmission (300m)
  Perfect for wide-area CCTV deployments such as compounds, schools, estates, and parking lots.

• PoE Watchdog for Cameras
  Automatically detects and restarts unresponsive cameras to maintain system uptime.

• Advanced VLAN & Security Controls
  Supports 802.1Q VLANs, port isolation, VIP priority ports, and loop prevention.

• Industrial-Grade Build Quality
  Metal enclosure, rack-mountable design, and 6 kV surge protection for reliable field performance.

• Remote Management Ready
  Fully supported by Hik-Partner Pro and Hik-Central Pro for cloud-enabled monitoring and configuration.

Specifications

General

Network Parameters

PoE Power Supply

Software Functions

Long-Range PoE (300m)

Supports extended-distance transmission for ports 1–16.

VIP Ports (1–8)

Prioritizes latency-sensitive devices (e.g., NVR uplinks, critical cameras).

Port Isolation

Enhances security by blocking east–west traffic between PoE ports.

Link Aggregation

• Supports static link aggregation

• Improves redundancy and uplink throughput

Loop Prevention

• STP (802.1D)

• RSTP (802.1w)

VLAN

• Supports 802.1Q VLAN tagging

• VLAN ID range: 1–4094

Remote Management

Compatible with:

• Hik-Partner Pro

• Hik-Central Pro

Approvals & Certifications

What’s in the Box

• 1 × Hikvision DS-3E1318P-EI/M Smart PoE Switch

• 1 × Power Cable

• Rack-mounting ears + screws

• Quick Installation Guide

Why Choose the DS-3E1318P-EI/M

• Built specifically for surveillance networks

• Long-range PoE eliminates the need for repeaters/extenders

• 130W PoE power budget for multiple HD/4K cameras

• Intelligent watchdog ensures maximum uptime

• Supports VLANs and advanced Layer 2 features

• High-performance Gigabit uplink ports for NVRs and core switches

• Fully manageable via Hikvision software ecosystem
